Guzik

Guzik 501 Head PCB Assembly 301303 Rev E Floppy Disk Certifier Module Card

(No reviews yet) Write a Review
SKU:
42738
MPN:
301303
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Guzik 501 Head PCB Assembly 301303 – top side showing dual ICs, gray connector block, and component layout

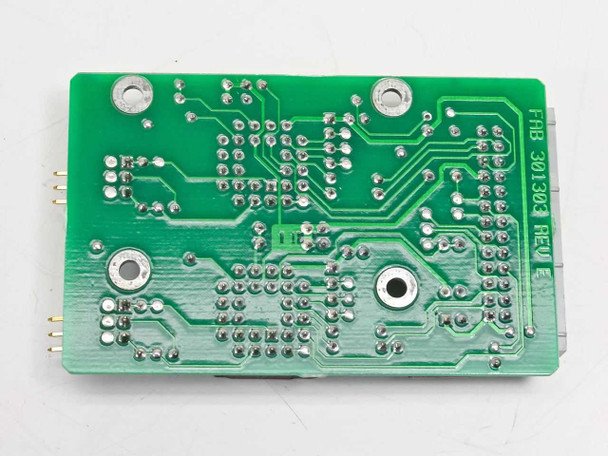

  • Guzik 501 Head PCB 301303 Rev E – solder side showing FAB 301303 REV E marking and clean solder joints

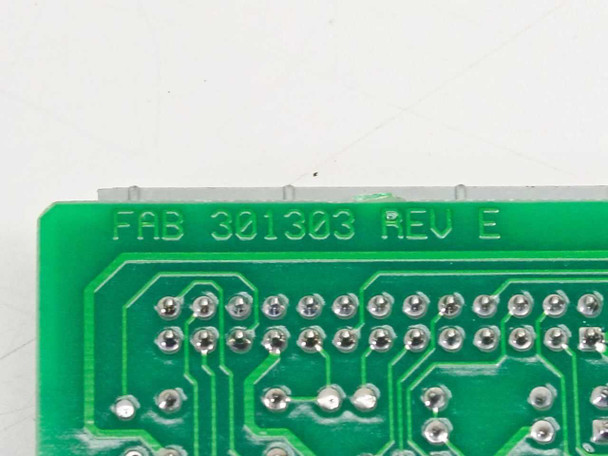

  • Guzik 501 PCB 301303 Rev E – close-up of FAB 301303 REV E silkscreen on PCB edge

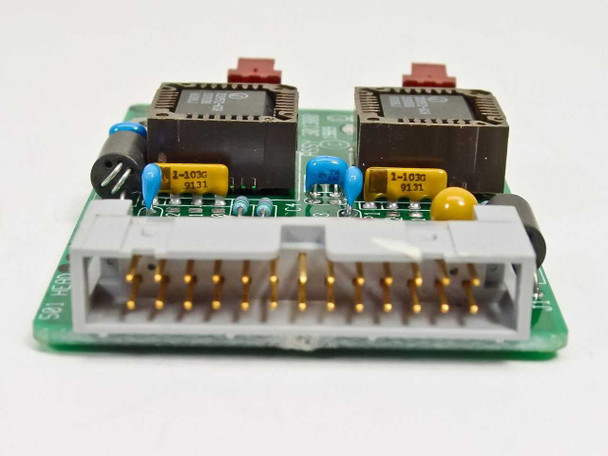

  • Guzik 501 Head Assembly 301303 – side view showing dual transformer modules and gold-pin edge connector
  • Guzik 501 Head PCB 301303 – angled side view showing dual transformers, red connectors, and component detail
$75.00
Was: $150.00
Current Stock: 2

Sold Out

Description

Guzik 501 Head PCB Assembly 301303 Rev E Floppy Disk Certifier Module Card

This is a head PCB assembly module card designed for the Guzik 501 Floppy Disk Certifier. The board functions as a plug-in component for floppy disk certification and analysis operations.

Specifications & What's Included

  • Brand: Guzik
  • Model: 501
  • MPN: 301303
  • Revision: Rev E
  • Assembly Number: ASSY 301300
  • PCB Fab Number: FAB 301303
  • Form Factor: PCB Module / Plug-in Card
  • Manufactured: United States

Applications

The Guzik 501 Floppy Disk Certifier was used for testing and validating 3.5-inch and 5.25-inch floppy disks in manufacturing and quality assurance environments. This head PCB assembly is a replacement module for the certifier unit, supporting disk analysis and certification workflows. The module integrates with the main 501 chassis as a functional component for disk testing operations.

Condition: Used
This Guzik 501 Head PCB Assembly (301303 Rev E) has been inspected and is in good condition. The board is clean with no visible cracks, burnt components, or damaged traces. The gold-pin edge connector and red jumper headers appear intact. Normal light handling marks are present but nothing that would affect function. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Guzik
Model:
501
MPN:
301303
Secondary Model:
FAB 301303 REV E
Type:
Head PCB Assembly / Module Card
SKU:
42738
Compatible With:
Guzik 501 Floppy Disk Certifier
Revision:
Rev E
Assembly Number:
ASSY 301300
PCB Fab Number:
FAB 301303
Form Factor:
PCB Module / Plug-in Card
Application:
Floppy Disk Certification / Analysis
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Head PCB assembly for Guzik 501; sold as shown.
Country/Region of Manufacture:
United States
Condition Notes:
Guzik 501 Head PCB Assembly 301303 Rev E inspected and in good condition. Board is clean, no visible damage, gold-pin connector and components intact. Please view photos and contact us with any questions.
View AllClose

Related Products

Related Products

Guzik 302240 MR-Head Adapter Card PCB front side showing GUZIK logo, copyright 1992 Made in USA silkscreen, test points TP1–TP4, inductors L1–L2, transistor Q2, resistor array, and gold-pin edge connectors J1 and J3 Guzik 302240 MR-Head Adapter Card PCB reverse side showing two WT204P0J ICs (U2 and U3 date-coded 9215), surface-mount resistors R9–R20, and FAB 302243 Rev A silkscreen label
Add to Cart
Quick view

Guzik 302240 MR-Head Adapter Card PCB Assembly Rev A Made in USA 1992

Guzik

$100.00
Was: $200.00
Guzik 302240 MR-Head Adapter Card PCB Assembly Rev A Made in USA 1992This is a magnetoresistive (MR) read head adapter card designed to interface MR head assemblies with Guzik disk drive test and...
42737
SKU:
42737
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Guzik
Model:
302240
MPN:
302240
Secondary Model:
ASSY 302240
Type:
MR-Head Adapter Card / PCB Assembly
Hardware Revision:
Rev A
SKU:
42737
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Form Factor:
Card / PCB Module
Application:
Magnetoresistive (MR) Read Head Interface / Disk Test
Year of Manufacture:
1992
Connector Type:
Gold-pin header connector (J1/J3)
Seller Notes:
Card only; no additional accessories included.
Compatible With:
Guzik disk drive test and certification systems
Condition Notes:
Guzik 302240 MR-Head Adapter Card, used, pulled from a working environment. PCB inspected — clean, no visible damage or broken traces. Gold-pin connectors show light contact wear. Please view photos and contact us with questions.

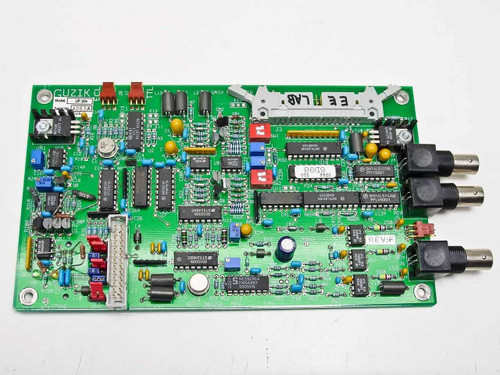

Guzik Universal Preamp IV 302250 PCB assembly top view showing component side with ICs, BNC connectors, and edge connector Guzik Universal Preamp IV 302250 PCB solder side view showing reverse of board and BNC connector posts
Add to Cart
Quick view

Guzik Universal Preamp IV 302250 PCB Assembly Magnetic Disk Preamplifier Board

Guzik

$125.00
Was: $250.00
Guzik Universal Preamp IV 302250 PCB Assembly Magnetic Disk Preamplifier BoardPCB-level preamplifier assembly for magnetic disk drive read channels. Features NE592N14 and FMS4887 integrated circuits...
42732
SKU:
42732
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Guzik
Model:
Universal Preamp IV
MPN:
302250
Type:
Disk Drive Preamplifier PCB Assembly
SKU:
42732
Assembly Number:
ASSY 302250
Main IC / Chipset:
NE592N14, FMS4887
Output Connectors:
3x BNC
Interface Connector:
Multi-pin edge connector (approx. 50-pin)
Form Factor:
PCB Module / Card
Application:
Magnetic disk drive read channel preamplifier
Condition:
Used – Inspected and Pulled from Working Environment
Seller Notes:
Board only; no enclosure. Inspected and in good condition.
Country/Region of Manufacture:
United States
Condition Notes:
Guzik Universal Preamp IV 302250 PCB assembly. Inspected and in good condition. Normal lab handling wear. BNC connectors and edge connector intact. Board only, no enclosure.
Guzik UP-205 Rev B printed circuit board — full top-side view showing component layout, SMA output connectors, and edge connector Guzik UP-205 Rev B PCB label closeup showing model number, serial number, Made in USA, and Rev B marking
Add to Cart
Quick view

Guzik UP-205 UP205 PCB Rev B Printed Circuit Board Card Made in USA

Guzik

$65.00
Was: $125.00
Guzik UP-205 UP205 PCB Rev B Printed Circuit Board Card Made in USAGuzik UP-205 Rev B printed circuit board card. This module card functioned as a component within Guzik automated test equipment...
26951
SKU:
26951
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Guzik
Model:
UP-205
MPN:
UP-205
Type:
Printed Circuit Board (PCB)
SKU:
26951
Hardware Revision:
Rev B
Country/Region of Manufacture:
United States
Form Factor:
Card / Module / PCB
Seller Notes:
Board only — no additional accessories included.
Output Connectors:
RDX_OUT (x2), SCOP_OUT — SMA-type on board edge
Board Interface:
High-density gold-pin edge connector (approx. 50-pin)
Secondary Connector:
Multi-pin white housing connector with DIP switch block
Condition:
Used – Pulled from Working Environment
Condition Notes:
Guzik UP-205 Rev B PCB in used condition. Pulled from service; shows normal light wear. Board label intact, connectors appear undamaged. Not bench-tested at our facility. Please view photos and contact us with any questions.

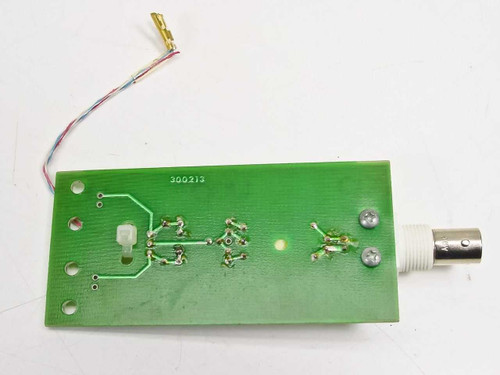

Guzik C-201 300210 Head Calibrator PCB front side showing Guzik Technical Enterprises label, BNC connector, toroid inductor, and resistors with assembly and model label reading HEAD CALB. C-201 Serial 205 Guzik C-201 300210 Head Calibrator PCB reverse side showing solder traces, component pads, part number 300213 printed on board, BNC connector, and attached multi-wire harness
