Guzik

Guzik 300100A Motion Controller Board PCB Card For Parts Repair AS-IS

(No reviews yet) Write a Review
SKU:
42733
MPN:
300100A
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

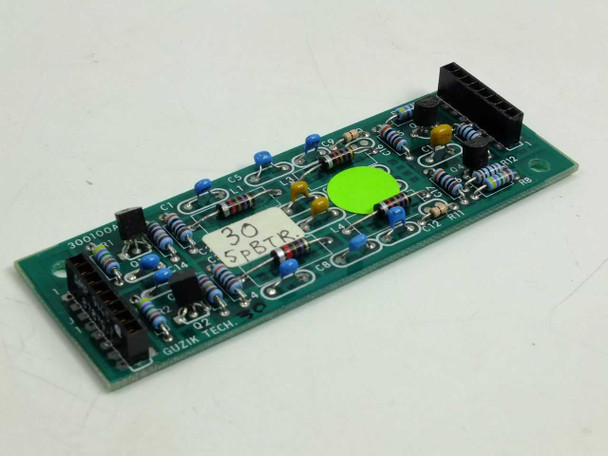

  • Guzik 300100A Motion Controller Board PCB top view showing components, hand-written label '30 5pBTR', and GUZIK TECH silkscreen
  • Guzik 300100A Motion Controller Board PCB bottom/solder-side view showing solder joints and card-edge connector pads

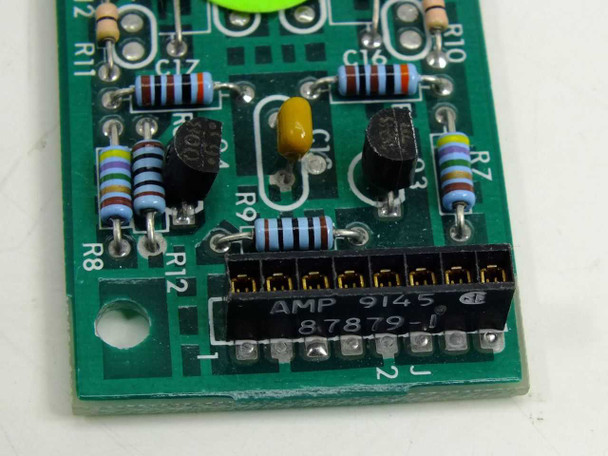

  • Close-up of Guzik 300100A PCB showing AMP 9145 87879-1 connector, resistors, capacitors, and transistors
  • Close-up of Guzik 300100A PCB front component side showing inductors, capacitors, transistors Q1 and Q2, and hand-written label '30 5pBTR'
$50.00
Was: $100.00
Current Stock: 4

Sold Out

Description

Guzik 300100A Motion Controller Board PCB Card For Parts Repair AS-IS

Motion controller board from Guzik disk drive test and analysis equipment. This PCB card module interfaces with Guzik test systems to manage motion control functions during drive diagnostics and performance analysis.

Specifications & What's Included

  • Brand: Guzik
  • Model: 300100A
  • Type: Motion Controller Board / PCB Card
  • Connectors: Dual row AMP 9145 87879-1 edge connectors
  • Form Factor: Card / PCB Module
  • Manufactured: United States

Applications

Used in Guzik disk drive test and analysis systems for motion control operations. These controller boards supported diagnostic testing, performance measurement, and analysis functions in industrial and R&D environments. Compatible with Guzik drive test platforms from that era.

Condition: For Parts or Not Working
This Guzik 300100A Motion Controller Board was pulled from a larger machine in a Southern California R&D laboratory. We are unable to test this board and are selling it strictly AS-IS for parts or repair — no functionality is implied or guaranteed. The board appears physically intact with no obvious signs of burns, broken traces, or major component damage visible in our photos. A hand-written label reading '30 5pBTR' is affixed to the top side. An AMP 9145 (87879-1) connector is present on the board. Please review our full photo set carefully before purchasing. Contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Guzik
Model:
300100A
MPN:
300100A
Type:
Motion Controller Board / PCB Card
SKU:
42733
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold AS-IS for parts or repair. Untested. Board only.
Form Factor:
Card / PCB Module
Connector:
AMP 9145 87879-1 edge connector; dual row card-edge connectors
Application:
Motion Control / Disk Drive Test Equipment
Compatible With:
Guzik disk drive test and analysis systems
Country/Region of Manufacture:
United States
Condition Notes:
Guzik 300100A Motion Controller Board pulled from an SoCal R&D lab. Sold AS-IS for parts or repair only — we cannot test it and make no functionality guarantee. Board appears physically intact. No returns on as-is parts.
View AllClose

Related Products

Related Products

Guzik UP-205 Rev B printed circuit board — full top-side view showing component layout, SMA output connectors, and edge connector Guzik UP-205 Rev B PCB label closeup showing model number, serial number, Made in USA, and Rev B marking
Add to Cart
Quick view

Guzik UP-205 UP205 PCB Rev B Printed Circuit Board Card Made in USA

Guzik

$65.00
Was: $125.00
Guzik UP-205 UP205 PCB Rev B Printed Circuit Board Card Made in USAGuzik UP-205 Rev B printed circuit board card. This module card functioned as a component within Guzik automated test equipment...
26951
SKU:
26951
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Guzik
Model:
UP-205
MPN:
UP-205
Type:
Printed Circuit Board (PCB)
SKU:
26951
Hardware Revision:
Rev B
Country/Region of Manufacture:
United States
Form Factor:
Card / Module / PCB
Seller Notes:
Board only — no additional accessories included.
Output Connectors:
RDX_OUT (x2), SCOP_OUT — SMA-type on board edge
Board Interface:
High-density gold-pin edge connector (approx. 50-pin)
Secondary Connector:
Multi-pin white housing connector with DIP switch block
Condition:
Used – Pulled from Working Environment
Condition Notes:
Guzik UP-205 Rev B PCB in used condition. Pulled from service; shows normal light wear. Board label intact, connectors appear undamaged. Not bench-tested at our facility. Please view photos and contact us with any questions.

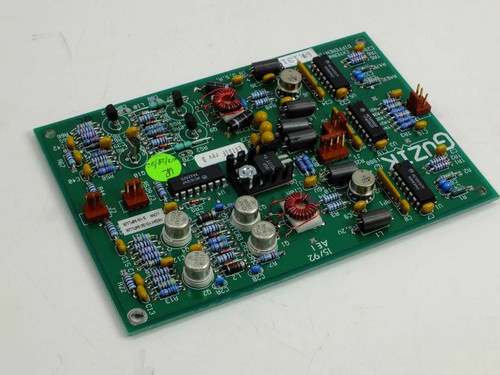

Guzik 300663 External Differential AEI PCB front view showing full component side with ICs, inductors, and capacitors Guzik 300663 AEI circuit board angled top view showing reverse side orientation with green sticker and component layout
