Description

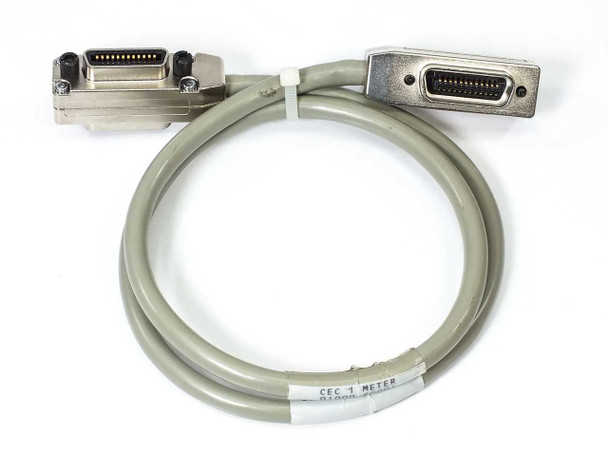

GPIB IEEE-488 Cable 1m CEC 01000-90001 HP 10833A Style Straight Connector HPIB
IEEE-488 instrument bus cable used to connect GPIB-compatible test equipment, data acquisition systems, and controllers. This 1-meter CEC cable features 24-pin micro-ribbon connectors on both ends.
Specifications & What's Included
- Brand: CEC; Model: 01000-90001
- Type: GPIB / IEEE-488 / HPIB Instrument Bus Cable
- Cable Length: 1 Meter (3.3 ft)

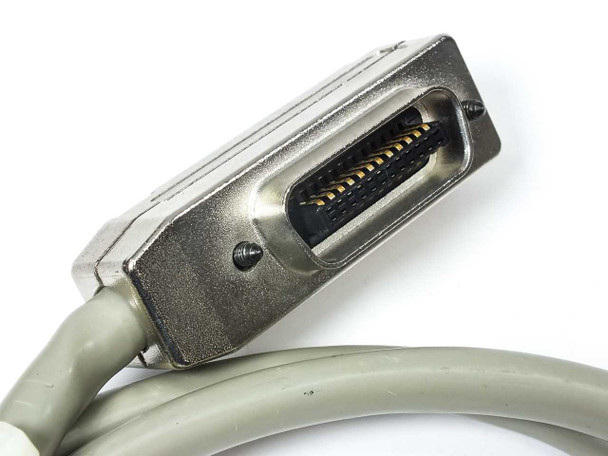

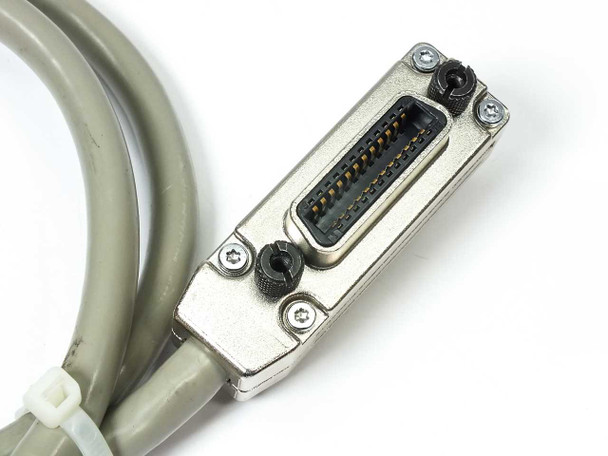

- Connector Type: 24-pin Micro-Ribbon (Amphenol IEEE-488), Straight on Both Ends
- Wire Type: AWM 2464
- Temperature Rating: 75°C

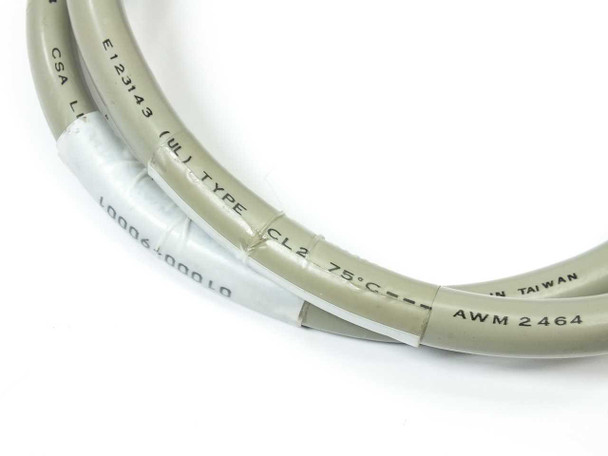

- Certifications: UL (E123143), CSA, Type CL2
- Manufactured in Taiwan
Applications
GPIB cables connect laboratory instruments, measurement equipment, and computer controllers that support the IEEE-488 standard. Commonly used in industrial test benches, research facilities, and telecom environments with HP or compatible instrumentation systems. HP 10833A style connectors are standard across many vintage and current GPIB devices.
Condition: Used
This CEC 01000-90001 GPIB IEEE-488 cable has been inspected and is in good used condition. The cable jacket is clean and intact with no cuts or kinks noted. Both straight 24-pin Micro-Ribbon connector housings are intact with no bent or missing pins visible. The cable was pulled from a working lab environment where it was in active use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This CEC 01000-90001 GPIB IEEE-488 cable has been inspected and is in good used condition. The cable jacket is clean and intact with no cuts or kinks noted. Both straight 24-pin Micro-Ribbon connector housings are intact with no bent or missing pins visible. The cable was pulled from a working lab environment where it was in active use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
CEC |
Model: |
01000-90001 |
MPN: |
01000-90001 |
Type: |
GPIB / IEEE-488 Instrument Bus Cable |
SKU: |
49685 |
Compatible With: |
HP 10833A style GPIB instruments and controllers |
Connector Type: |
24-pin Micro-Ribbon (Amphenol IEEE-488), Straight |
Cable Length: |
1 Meter (3.3 ft) |
Interface: |
GPIB / IEEE-488 / HPIB |
Number of Connectors: |
2 (one each end, straight) |
Cable Standard: |
IEEE-488 / IEC-625 |
Wire Type: |
AWM 2464 |
Temperature Rating: |
75°C |
Cable Certifications: |
UL (E123143), CSA, Type CL2 |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |

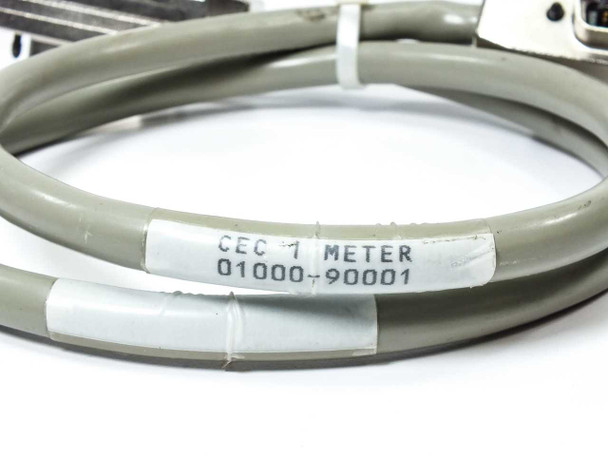

CEC-labeled 1m GPIB cable, HP 10833A style, inspected and in good condition |
Condition Notes: |
CEC 01000-90001 GPIB IEEE-488 1m cable inspected and in good used condition. Jacket clean and intact, both connectors in good shape, no bent pins noted. Pulled from a working lab environment. |
