Description
GNB SCR100-24-475T1Z Industrial Battery Charger 48V 74A 208/240/480V 3Ph
This SCR-regulated industrial battery charger is designed to charge flooded lead-acid battery packs used in forklifts, material handling vehicles, and similar fleet applications. It delivers 48V output at up to 74A, with flexible three-phase AC input at 208, 240, or 480V. The convection-cooled design requires no external cooling systems and is housed in a freestanding floor-mounted enclosure.
Specifications & What's Included
- Model: SCR100-24-475T1Z (SAFT / Alcatel Canada)
- DC Output: 48V, 74A maximum; 475 AH capacity rating
- AC Input: 208/240/480V, 3-phase, 60Hz (39A / 33.5A / 17A respectively)
- Charge Control: SCR regulated
- Cooling: Convection cooled (no fan)
- Configuration: Freestanding floor unit
- Battery Type: Flooded lead-acid (24V, 12 cells)
- Included: Unit only; no accessories
Applications
Industrial battery chargers of this type are used to charge battery packs for forklifts, pallet jacks, and material handling equipment in warehouses, distribution centers, and fleet maintenance facilities. The three-phase input flexibility allows installation in various electrical environments.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

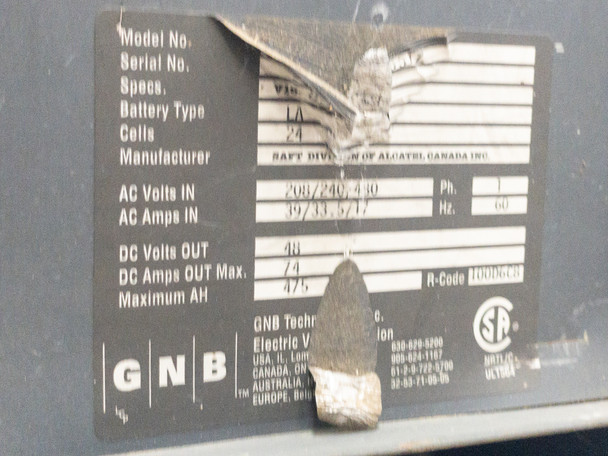

This GNB SCR100-24-475T1Z industrial battery charger shows typical use wear from warehouse or fleet service, including minor surface scuffing and grime on the enclosure, with a partially damaged nameplate label. The unit was not bench-tested at our facility but was pulled from a working environment. Please review our photo set carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
GNB |
Model: |
SCR100-24-475T1Z |
MPN: |
SCR100-24-475T1Z |
SKU: |
53264 |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only; no accessories included. See photos for cosmetic condition. |
Form Factor: |
Freestanding Floor Unit |
Country of Manufacture: |
Canada |
Battery Type: |
Flooded Lead-Acid |
Battery Voltage: |
24V (12 cells) |
DC Volts Out: |
48V |
DC Amps Out Max: |
74A |
Maximum AH: |
475 AH |
AC Volts In: |
208 / 240 / 480V |
AC Amps In: |
39 / 33.5 / 17 |
Phase: |
3-Phase |
Frequency: |
60 Hz |
Cooling Method: |
Convection Cooled |
Charge Control: |
SCR Regulated |
Compatible With: |
Forklift and material handling 24V lead-acid battery packs |
Manufacturer: |
SAFT Division of Alcatel Canada Inc. |
Condition Notes: |
This GNB SCR100-24-475T1Z industrial battery charger shows typical use wear from warehouse or fleet service, including minor surface scuffing and grime on the enclosure, with a partially damaged nameplate label. |
DC Output Voltage: |
48V |
DC Output Current: |
74A maximum |
Battery Capacity: |
475 AH |
Battery Voltage Configuration: |
24V (12 cells) |
AC Input Voltage: |
208 / 240 / 480V |
AC Input Current 208V: |
39A |
AC Input Current 240V: |
33.5A |
AC Input Current 480V: |
17A |
