EnerSys ES3-24-850B EnForcer SCR Forklift Battery Charger 48V 850Ah 3-Phase

(No reviews yet) Write a Review
SKU:
53173
MPN:
ES3-24-850B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
360.00 LBS
Shipping:
Calculated at Checkout
  • EnerSys ES3-24-850B EnForcer SCR front three-quarter view on pallet with output cables coiled
  • EnerSys ES3-24-850B EnForcer SCR forklift battery charger — front panel view showing 48V and 850AH markings on pallet

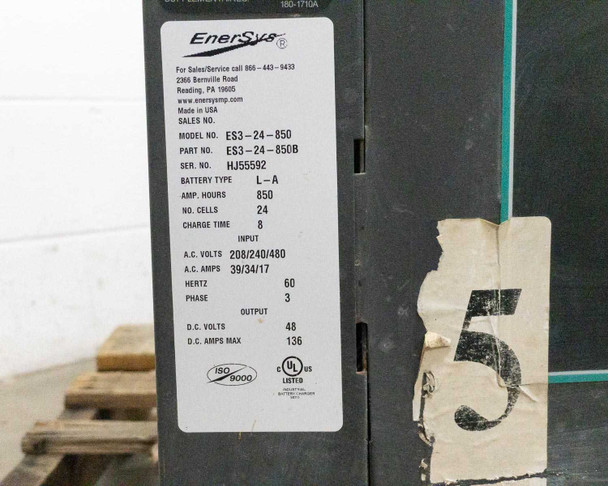

  • EnerSys ES3-24-850B rating plate showing model ES3-24-850, part number ES3-24-850B, 208/240/480V AC input, 48V DC output, 850Ah, 3-phase, 60Hz
  • EnerSys EnForcer SCR front control panel close-up showing LCD display, indicator lights, and push-button controls
  • EnerSys ES3-24-850B interior view with panel door open showing control board, transformer, and internal wiring
  • Interior close-up of 3-phase AC input connection terminal block with orange, blue, and brown wiring and GND terminal

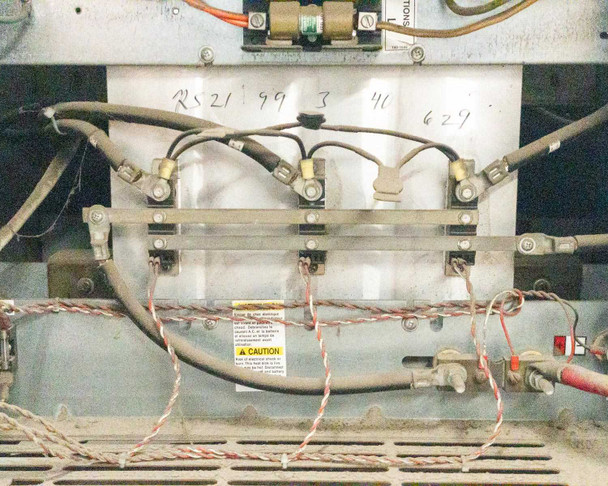

  • Interior view of SCR assembly and transformer wiring with caution label visible
  • EnerSys ES3-24-850B control PCB mounted on interior door panel with multi-pin harness connectors
  • Field Enhancement/Upgrade label and 3-phase SCR wiring connection chart for 208V, 240V, and 480V configurations
  • Interior bottom view showing transformer wiring bundles and louvered ventilation panel

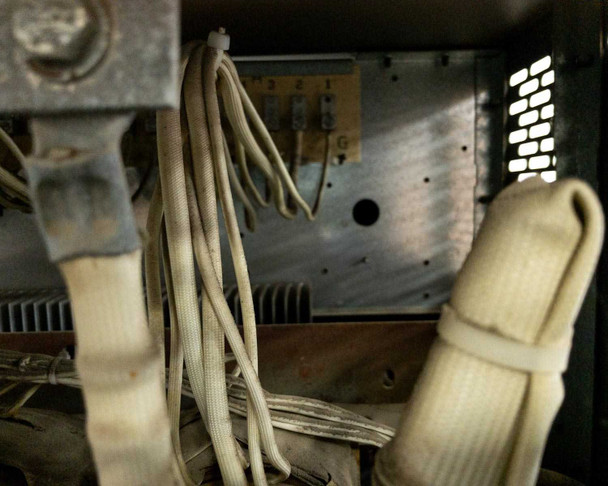

  • Interior close-up of transformer leads and bundled wiring with ventilation slots in background
  • EnForcer SCR Battery Charger Owner's Manual visible in door pocket, Model ES3 noted on label
  • Output cable bundle showing heavy-gauge DC cables with worn insulation and bare copper end visible
  • Output cable ends showing battery connectors — one with pink insulation, one bare — on pallet
  • EnerSys ES3-24-850B EnForcer SCR front panel and right side view on pallet with output cables
  • EnerSys ES3-24-850B rear view showing louvered steel ventilation grill, on pallet

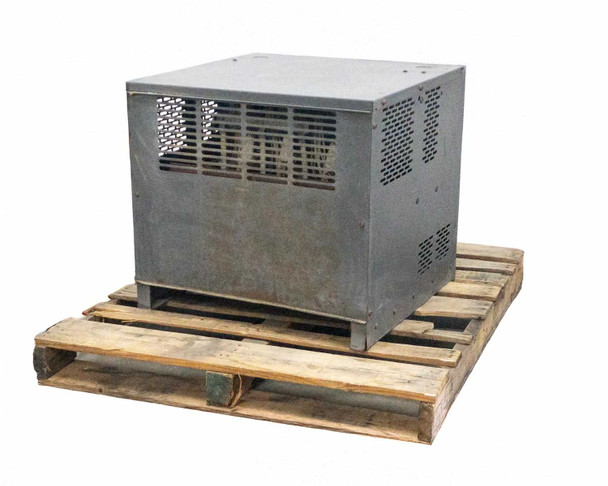

  • EnerSys ES3-24-850B left side view showing ventilation louvers and steel enclosure on pallet
  • EnerSys ES3-24-850B right rear three-quarter view showing side ventilation and output cable on pallet
$825.00
Was: $1,700.00
Current Stock: 1

Sold Out

Description

EnerSys ES3-24-850B EnForcer SCR Forklift Battery Charger 48V 850Ah 3-Phase

Three-phase SCR (Silicon Controlled Rectifier) battery charger designed for 48V lead-acid forklift and material handling equipment. Delivers 136A maximum output with 8-hour charge time for 850Ah battery systems.

Specifications & What's Included

  • Output: 48V DC, 136A max, 850Ah capacity
  • Input: 208/240/480V AC, 3-phase, 60 Hz
  • Charge time: 8 hours
  • Configuration: 24-cell, floor-standing/pallet-mount
  • Includes output cables and EnForcer SCR Owner's Manual
  • UL Listed, ISO 9000 certified

Applications

The ES3-24-850B is used in warehouse and industrial operations for overnight charging of 48V lead-acid forklift batteries. This charger type is standard in material handling facilities running fleets of electric forklifts and lift trucks. The SCR technology provides reliable, straightforward charging without complex electronics, making it compatible with most 48V lead-acid battery systems used across warehouse and manufacturing environments.

Condition: Used
This EnerSys ES3-24-850B EnForcer SCR forklift battery charger was pulled from a working environment where it was in active service. It has been inspected and appears to be in good condition overall. The steel enclosure shows surface grime, scuffing, and general wear consistent with warehouse use. The front control panel and EnForcer SCR badge are intact and legible. Internally, the transformer, SCR assembly, control PCB, and wiring appear complete with no obvious damage. The heavy-gauge DC output cables are present but show worn and aged insulation, with one end exhibiting exposed copper — buyers should evaluate the cables before use. The EnForcer SCR Owner's Manual is included in the door pocket. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
EnerSys
Model:
ES3-24-850B
MPN:
ES3-24-850B
Secondary Model:
ES3-24-850
Product Line:
EnForcer SCR
Type:
SCR Forklift Battery Charger
SKU:
53173
Battery Type:
L-A (Lead-Acid)
Output Voltage (DC):
48V DC
DC Amps Max:
136A
Amp Hours Capacity:
850Ah
Number of Cells:
24
Charge Time:
8 hours
Input Voltage (AC):
208/240/480V AC
AC Amps:
39A / 34A / 17A
Phase:
Three Phase
Frequency:
60 Hz
Charging Technology:
SCR (Silicon Controlled Rectifier)
Form Factor:
Floor-Standing / Pallet-Mount
Includes:
Output cables, EnForcer SCR Owner's Manual
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Certifications:
UL Listed, ISO 9000
Condition Notes:
EnerSys ES3-24-850B EnForcer SCR forklift charger pulled from a working environment, inspected and in good condition. Enclosure shows warehouse wear and surface grime. Output cables present but show aged insulation. Owner's manual included.
