Glassman High Voltage, Inc.

Glassman PS/PK003R1.3 High Voltage DC Power Supply 3kV 1300mA 208V 3-Phase

(No reviews yet) Write a Review
SKU:
53346
MPN:
PS/PK003R1.3
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
38.00 LBS
Shipping:
Calculated at Checkout

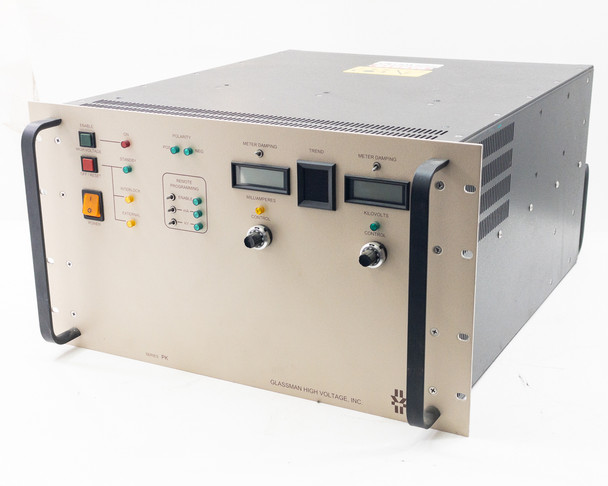

  • Glassman PS/PK003R1.3 High Voltage Power Supply – front panel left-angle view showing power switch, indicator lights, and meters
  • Glassman PS/PK003R1.3 High Voltage Power Supply – front panel straight-on view showing polarity selector, remote programming section, milliamperes and kilovolts displays
  • Glassman PS/PK003R1.3 nameplate label showing model PS/PK003R1.3, serial number, 208V 48-63Hz 3PH input, +/- 3kV 1300mA output, and JHV1 HV output connector
  • Glassman PS/PK003R1.3 front panel close-up showing ON, STANDBY, INTERLOCK, EXTERNAL indicator lights and remote programming enable switches
  • Glassman PS/PK003R1.3 front panel close-up showing milliamperes display, trend display, kilovolts display, meter damping controls and control knobs
  • Glassman High Voltage Inc. logo and lower-left corner of front panel chassis
  • Glassman PS/PK003R1.3 front panel left side close-up showing ENABLE HIGH VOLTAGE, OFF/RESET pushbuttons and POWER rocker switch with ON, STANDBY, INTERLOCK, EXTERNAL indicator LEDs
  • Glassman PS/PK003R1.3 three-quarter front-right view showing full unit with plexiglass safety cover panel attached
  • Glassman PS/PK003R1.3 left-side view with plexiglass safety cover showing front panel controls and side ventilation
  • Glassman PS/PK003R1.3 rear panel view showing J1 DB-25, J2, J3 connectors, TB2/J4 terminal block, JHV1 HV output, cooling fans, and lower chassis power input section
  • Glassman PS/PK003R1.3 rear panel close-up showing J1 DB-25, J2, J3, J4 connectors, nameplate label, JHV1 HV coaxial output, TB1 input terminal block, and fuse holders F1 F2 F3
  • Glassman PS/PK003R1.3 rear lower chassis close-up showing TB1 7000VA MAX input terminal block, F1/F2/F3 20A 250V Type F fuses, E1 ground lug, and large cooling fan
  • Glassman PS/PK003R1.3 rear upper chassis showing DANGER HIGH VOLTAGE label, DO NOT INSERT/REMOVE CONNECTORS warning, POWER ON indicator button, and dual cooling fans
  • Glassman PS/PK003R1.3 rear panel close-up showing JHV1 HV output connector, DANGER HIGH VOLTAGE warning label, and cooling fan detail
  • Glassman PS/PK003R1.3 right-side view showing full chassis depth, ventilation slots, and rack-mount handle
  • Glassman PS/PK003R1.3 left-side view showing full chassis with ventilation slots, rack-mount handles, and rear cooling fan vents
$6,000.00
Was: $15,000.00
Current Stock: 1

Sold Out

Description

Glassman PS/PK003R1.3 High Voltage DC Power Supply 3kV 1300mA 208V 3-Phase

Glassman High Voltage regulated DC power supply rated for ±3kV output at 1300mA. Accepts 208V AC three-phase input and features bipolar (positive/negative selectable) output with front panel and remote programming capability via DB-25 connectors.

Specifications & What's Included

  • Output: ±3kV DC, 1300mA bipolar
  • Input: 208V AC, 48–63Hz, three-phase, 7000VA max
  • Control: Front panel analog controls, remote DB-25 programming (voltage, current, enable)
  • Display: Digital kilovolt and milliampere meters
  • Output Connector: JHV1 (SHV-style coaxial, rear panel)
  • Fusing: 3x 20A, 250V Type F
  • External interlock input provided

Applications

Used in coating, charging, beam control, and high-voltage laboratory and industrial settings.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: For Parts or Not Working
This Glassman High Voltage PS/PK003R1.3 high voltage DC power supply is being sold AS-IS for parts or repair. It has not been bench-tested and is not guaranteed functional. The chassis and front panel appear physically intact with no obvious damage visible in our photos, but no power-on testing was performed. Please view our photo set and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Glassman High Voltage, Inc.
Model:
PS/PK003R1.3
MPN:
PS/PK003R1.3
SKU:
53346
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold AS-IS for parts or repair; not bench-tested
Form Factor:
Rackmount / Benchtop
Country of Manufacture:
USA
Power Requirements:
208V AC, 48-63Hz, 3-Phase, 7000VA Max
Output Voltage:
+/- 3kV DC
Output Current:
1300 mA
Output Type:
Bipolar (Positive / Negative selectable)
Phase:
Three Phase
Input Frequency:
48-63 Hz
Fuse Rating:
3x 20A, 250V, Type F
HV Output Connector:
JHV1 (SHV-style coaxial, rear panel)
Control Interface:
Front panel analog + Remote Programming (mA, kV)
Remote Programming:
Enable, mA, kV (rear DB-25 J1/J2 connectors)
Front Panel Meters:
Digital milliamperes display, digital kilovolts display
Controls:
Current control knob, voltage control knob, polarity select
Interlock:
External interlock input present
Application:
Coating, charging, beam control, high-voltage lab/industrial
Manufacturer Location:
High Bridge, NJ 08829
Condition Notes:
This Glassman High Voltage PS/PK003R1.3 high voltage DC power supply is being sold AS-IS for parts or repair. It has not been bench-tested and is not guaranteed functional.
