Glassman High Voltage PS/MK03P25.0L20 MK Series HVDC Power Supply 3kV 25mA

(No reviews yet) Write a Review
SKU:
53349
MPN:
PS/MK03P25.0L20
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout
  • Glassman High Voltage PS/MK03P25.0L20 MK Series HVDC power supply – front panel with HV output terminals, power indicator, and local control switch

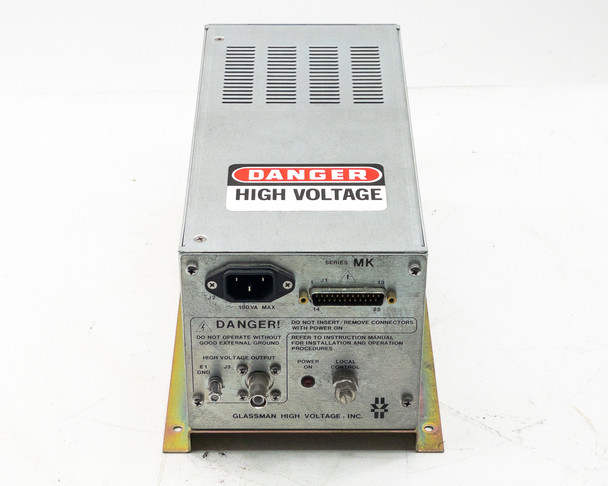

  • Glassman MK Series power supply rear view showing IEC AC input connector, DB25 control interface, and Danger High Voltage label
  • Glassman PS/MK03P25.0L20 model label showing model number, serial number, input 200V 48-420Hz 1PH, output +3kV 25.0mA, CE mark
  • Glassman High Voltage PS/MK03P25.0L20 front panel close-up showing HV output terminals E1 and J3, red power-on indicator illuminated, and local control knob

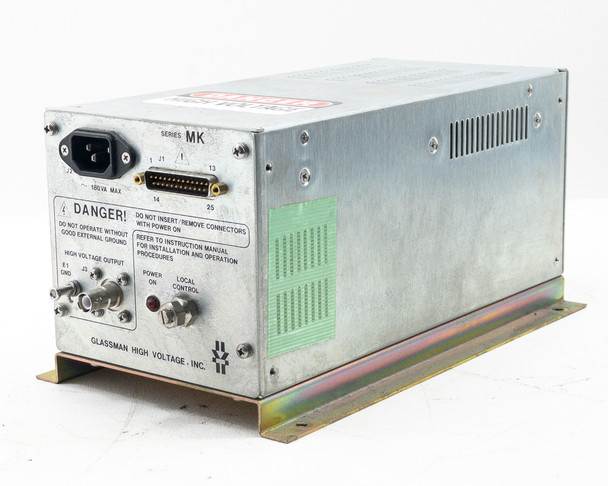

  • Glassman MK Series power supply three-quarter front-left view showing aluminum enclosure, vented top, and front panel controls with power light on
  • Glassman PS/MK03P25.0L20 front panel straight-on view showing DB25 Series MK connector, HV output terminals, power switch, and local control, power light off
  • Glassman High Voltage MK Series power supply top view showing ventilation slots and Danger High Voltage sticker on top surface

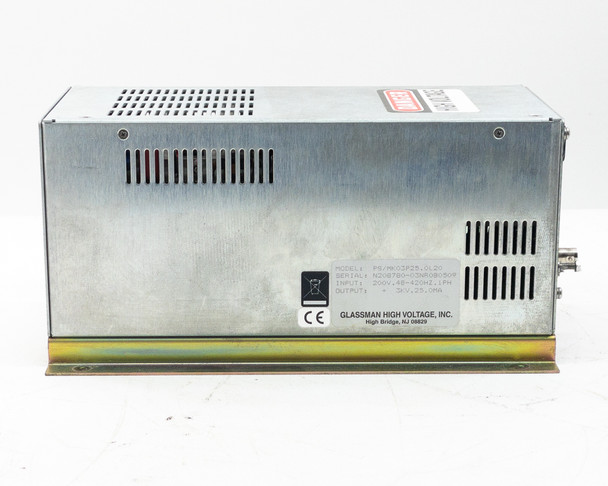

  • Glassman PS/MK03P25.0L20 right-side view showing model label, ventilation slots, CE mark, and BNC-style connector on rear

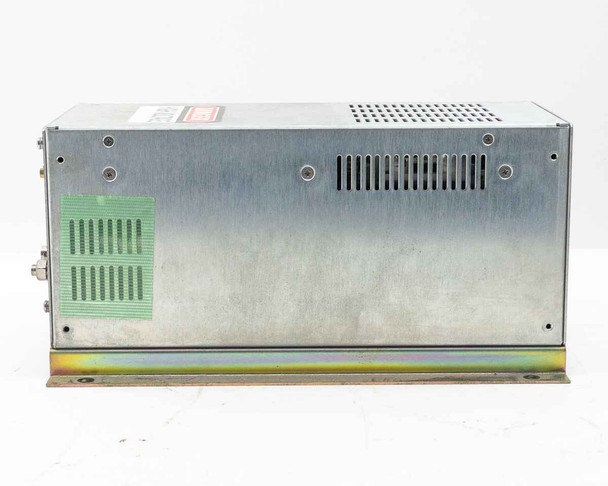

  • Glassman MK Series HVDC power supply left-side view showing ventilation louvers and green label on chassis
  • Glassman High Voltage PS/MK03P25.0L20 bottom view showing gold-anodized mounting bracket and chassis base

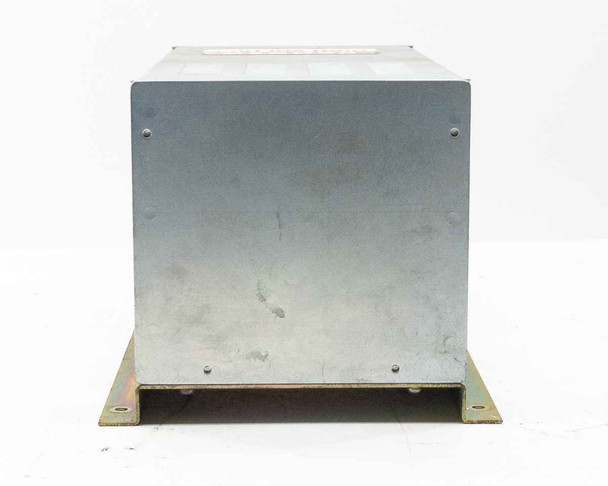

  • Glassman High Voltage, Inc. PS/MK03P25.0L20 MK Series Power Supply 3kVDC, 25mA
$600.00
Was: $1,500.00
Current Stock: 6

Sold Out

Description

Glassman High Voltage PS/MK03P25.0L20 MK Series HVDC Power Supply 3kV 25mA

Benchtop high-voltage DC power supply capable of adjustable output from 0 to +3kV at 25mA. Single-phase AC input with local and remote control interfaces via DB25 connector.

Specifications & What's Included

  • Output: 0 to +3kV DC adjustable, 25mA max
  • Power rating: 75W
  • Input: 200V AC, 48-420Hz, single phase, 180VA max
  • Control: Local switch and DB25 remote interface (J1)
  • Output terminals: E1, GND, J3
  • Air-insulated construction
  • CE certified
  • Unit only; no accessories included

Applications

Used for ion beam generation, capacitor charging, high-voltage bias applications, and OEM system integration.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: For Parts or Not Working
This Glassman High Voltage PS/MK03P25.0L20 MK Series high voltage power supply has been inspected and shows normal cosmetic wear consistent with prior use. When plugged in, the red power-on indicator illuminates. Beyond that, the unit has not been bench-tested at our facility and is sold as-is with no further functionality guarantee. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Glassman High Voltage, Inc.
Model:
PS/MK03P25.0L20
MPN:
PS/MK03P25.0L20
SKU:
53349
Series:
MK Series
Condition:
Used – Inspected
Seller Notes:
Unit only; no accessories included. Power indicator light illuminates.
Form Factor:
Benchtop / Panel-Mount Module
Country of Manufacture:
United States
Power Requirements:
200V, 48-420Hz, Single Phase, 180VA Max
Output Voltage:
0 to +3kV DC Adjustable
Output Current:
25mA
Power Rating:
75W
Voltage Rating:
3kVDC Output
Input Frequency:
48-420Hz
Phase:
Single Phase
Supply Type:
AC-HVDC High Voltage Power Supply
Insulation Type:
Air-Insulated
Output Connector:
HV Output: E1, GND, J3 terminals
Control Interface:
DB25 connector (J1 pins 1-13, 14-25); Local Control switch
Certifications:
CE
Application:
Ion beam, capacitor charging, high-voltage bias, OEM integration
Condition Notes:
This Glassman High Voltage PS/MK03P25.0L20 MK Series high voltage power supply was removed from a solar flash tester that was used for a limited time. It is in good condition and shows very little cosmetic wear consistent with limited prior use.
