Glassman PS/PK003R1.3 High Voltage DC Power Supply 3kV 1300mA 208V 3-Phase
The Glassman PS/PK003R1.3 is a regulated high voltage DC power supply designed for laboratory and industrial applications requiring stable bipolar output. This unit accepts 208V AC three-phase input and delivers adjustable ±3kV DC output at up to 1300mA, making it suitable for demanding high-voltage applications including coating, charging, beam deflection, and laboratory research environments.
Specifications & What's Included
- Output Voltage: ±3kV DC (bipolar, polarity selectable via front panel)
- Output Current: 1300 mA maximum
- Output Power: 3900W (3.9 kW)
- Output Type: Regulated DC with bipolar capability

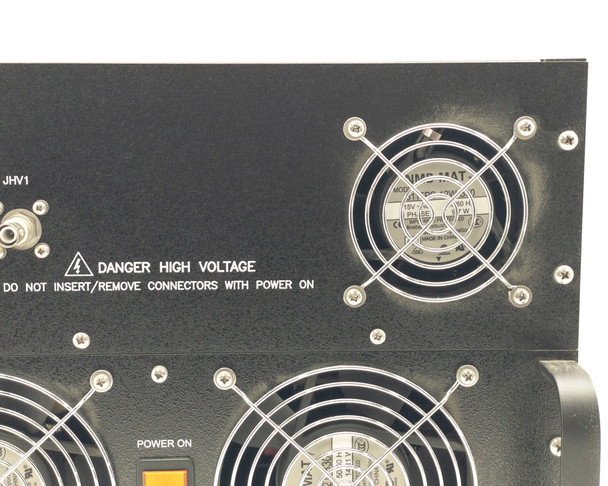

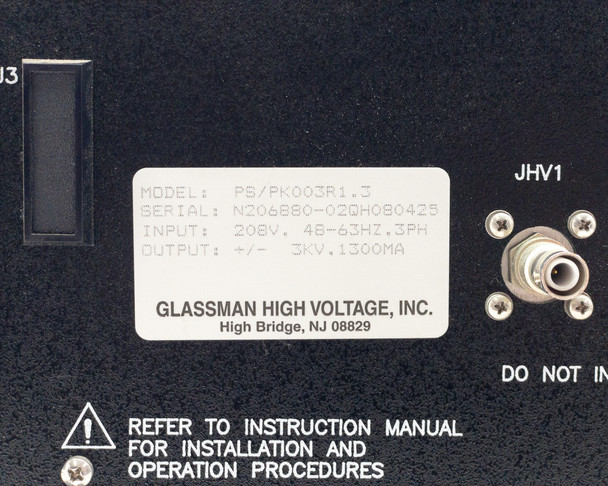

- Output Connector: JHV1 (SHV-style coaxial, rear panel mounted)
- Input Power: 208V AC, 48–63Hz, three-phase
- Input Power Rating: 7000VA maximum

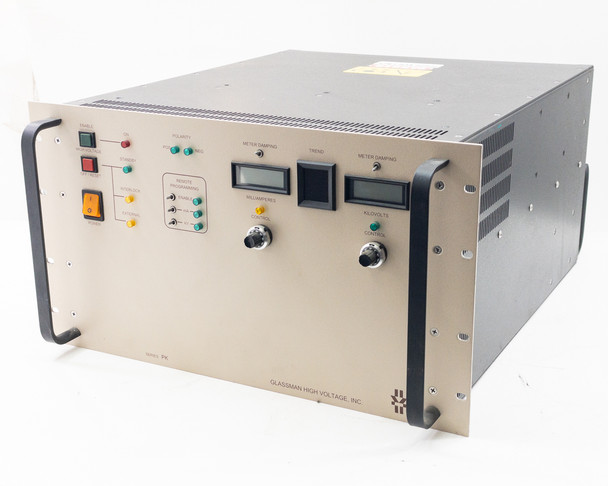

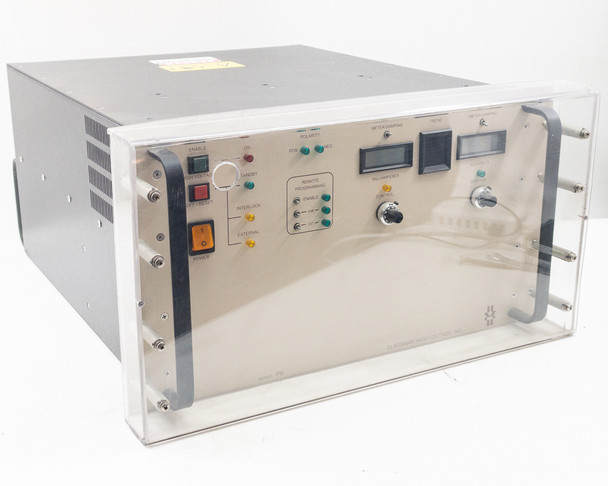

- Control: Front panel analog controls with voltage and current adjustment knobs

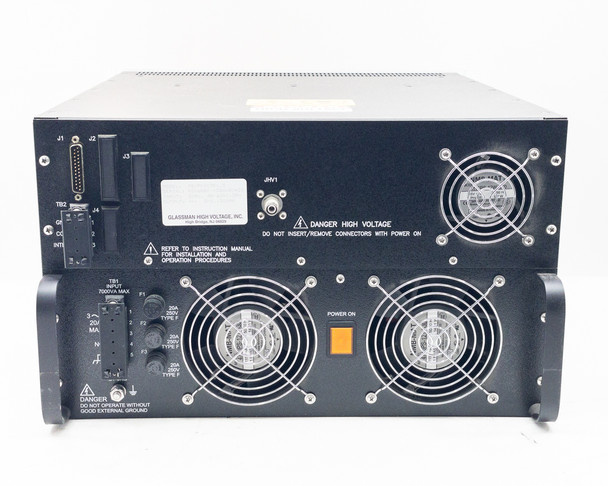

- Remote Programming: DB-25 connectors (J1/J2) for remote voltage, current, and enable control
- Front Panel Display: Digital kilovolt meter and digital milliampere meter

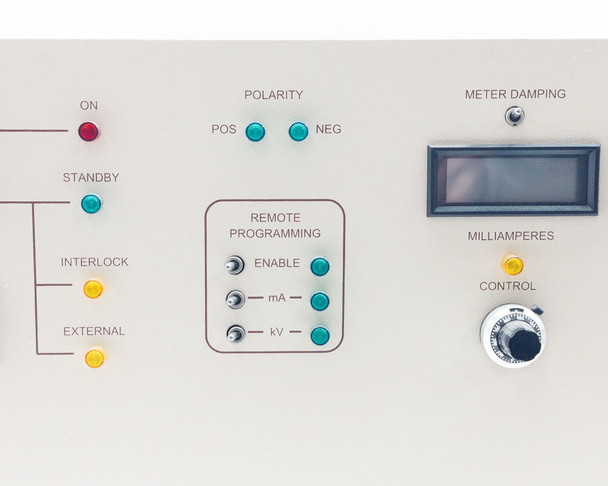

- Polarity Selection: Front panel switch for positive/negative output selection

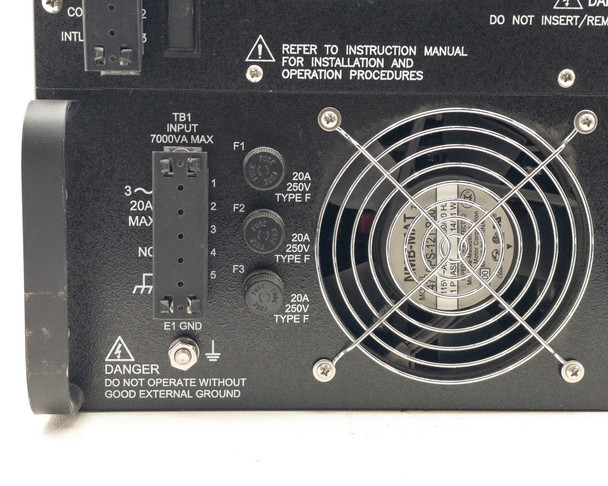

- Fusing: 3x 20A, 250V, Type F fuses

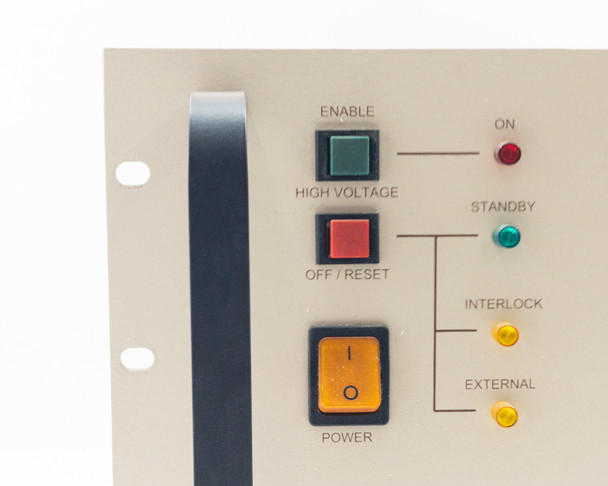

- External Interlock: Interlock input provided for safety integration

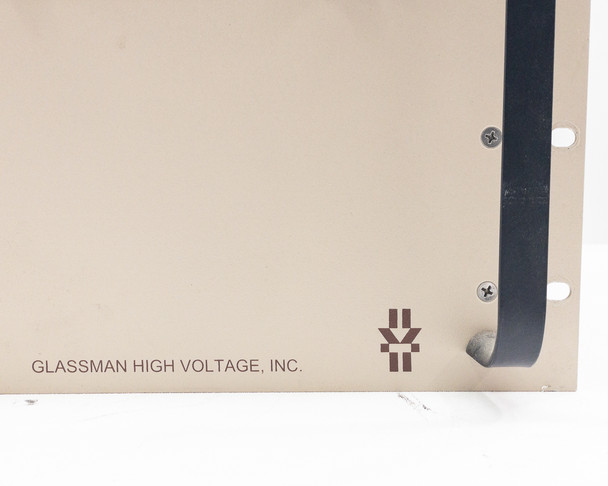

- Form Factor: Rackmount/benchtop configuration
- Manufacturer: Glassman High Voltage, Inc., High Bridge, NJ 08829
Applications
The PS/PK003R1.3 is engineered for high-voltage research, testing, and industrial processes. Typical applications include electrostatic coating and charging systems, electron beam control and deflection, high-voltage laboratory experiments, material processing, and diagnostic testing environments. The bipolar output capability makes it ideal for applications requiring both positive and negative polarities, and the remote programming via DB-25 interface allows integration into automated test and control systems. The external interlock input supports safety-critical deployments where power must be controlled by external safety systems or interlocks.
Glassman PS/PK003R1.3 High Voltage DC Power Supply (3kV, 1300mA, 208V 3-Phase) in Like New condition. This unit was installed as part of a larger solar flash tester system for testing purposes but never advanced to full production use. The power supply exhibits excellent physical condition throughout, with an intact chassis and front panel that show no visible external damage. Please note that this is an open-box item that has not been powered up or bench-tested at our facility. Original packaging may be opened, incomplete, or in minimal condition. We strongly recommend reviewing the complete photo set before purchasing to assess condition firsthand.
Warranty Information
Additional Information
Brand: |
Glassman High Voltage, Inc. |
Model: |
PS/PK003R1.3 |
MPN: |
PS/PK003R1.3 |
SKU: |
53346 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold AS-IS for parts or repair; not bench-tested |
Form Factor: |
Rackmount / Benchtop |
Country of Manufacture: |
USA |
Power Requirements: |
208V AC, 48-63Hz, 3-Phase, 7000VA Max |
Output Voltage: |
+/- 3000V DC (Bipolar) |
Output Current: |
1300 mA |
Output Type: |
Bipolar (Positive/Negative Selectable) |
Phase: |
Three Phase |
Input Frequency: |
48-63 Hz |
Fuse Rating: |
3x 20A, 250V, Type F |
HV Output Connector: |
JHV1 (SHV-style coaxial, rear panel) |
Control Interface: |
Front panel analog + remote DB-25 programming |
Remote Programming: |
DB-25 connectors (J1/J2) for voltage, current, enable |
Front Panel Meters: |
Digital milliamperes display, digital kilovolts display |
Controls: |
Current control knob, voltage control knob, polarity select |
Interlock: |
External interlock input present |
Application: |
Coating, charging, beam control, high-voltage lab/industrial |
Manufacturer Location: |
High Bridge, NJ 08829 |
Condition Notes: |
Glassman PS/PK003R1.3 3kV 1300mA High Voltage DC Power Supply. Like New, tested only (never in production). Excellent physical condition, no visible damage. Open box, not bench-tested. See photos. |
Type: |
High Voltage DC Power Supply |
Country/Region of Manufacture: |
United States |
Output Power: |
3900W (3.9 kW) |
Input Voltage: |
208V AC, 3-Phase |
Input Power Rating: |
7000VA Maximum |
Output Connector: |
JHV1 (SHV-style coaxial, rear panel) |
Front Panel Display: |
Digital kilovolt and milliampere meters |
Front Panel Controls: |
Voltage control knob, current control knob, polarity select |
External Interlock: |
Yes |
Applications: |
Coating, charging, beam control, laboratory and industrial |
