Gems LS-1755 Single-Station Level Switch Pilot Duty 20VA 50-240VAC w/ Float
The Gems Sensors LS-1755 is a single-station float-type liquid level switch designed for pilot duty applications. It uses a magnetically actuated reed switch inside a stainless steel probe body, triggered by the position of an external float as liquid rises or falls. This unit is rated for pilot duty at 20 VA and operates across a wide voltage range of 50 to 240 VAC.
Specifications & What's Included
- Model: Gems Sensors LS-1755
- Manufacturer: IMO Industries Inc., Gems Sensors Division, Plainville, CT, USA
- Type: Single-station magnetically actuated float level switch
- Voltage Range: 50 to 240 VAC
- Power Rating: Pilot Duty 20 VA
- Probe Body: Stainless steel, threaded NPT tip
- Float: Cylindrical stainless steel float, marked 750 NC/ON
- Lead Wire: Pink two-conductor lead wire (wire gauge/length marked XLPK 125°C on jacket)

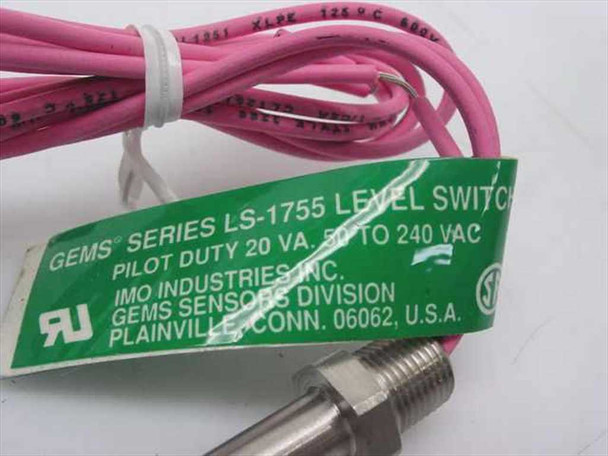

- Listed: UL recognized (UL mark visible on label)
- Includes: Level switch with probe, cylindrical float, instruction bulletin, original Gems Sensors box
Applications
The Gems LS-1755 series single-station level switches are used to detect the presence or absence of liquid at a single point in tanks, reservoirs, sumps, and process vessels. They are commonly used in industrial equipment, HVAC systems, coolant tanks, chemical processing, and OEM fluid management systems. The pilot duty rating makes them suitable for switching relays, contactors, and solenoid valves rather than direct load switching. Gems Sensors (now part of Fortive/Gems) has produced float-type and reed-switch level sensors like the LS-1755 series for decades, and these switches remain a standard choice for straightforward single-point liquid level detection in light industrial and OEM applications.
This Gems Sensors LS-1755 single-station level switch appears to be in good used condition. It comes in its original Gems Sensors / IMO Industries box and includes the instruction bulletin and cylindrical float. The stainless steel probe and pink lead wire show no obvious damage. Normal handling wear may be present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Gems Sensors |
Model: |
LS-1755 |
MPN: |
LS-1755 |
Type: |
Single-Station Float Level Switch |
SKU: |
31701 |
Series: |
LS-1755 |
Voltage Rating: |
50 to 240 VAC |
Power Rating: |
Pilot Duty 20 VA |
Switch Action: |
Normally Open / Normally Closed (750 NC/ON float) |
Probe Material: |
Stainless Steel |
Connection Type: |
Threaded (NPT probe tip) |
Lead Wire: |
Pink lead wire |
Float Type: |
Cylindrical stainless float, 750 NC/ON marked |
What's Included: |
Level switch, float, instruction bulletin, original box |
Manufacturer: |
IMO Industries Inc., Gems Sensors Division |
Country/Region of Manufacture: |
United States |
Form Factor: |
Inline / Threaded Probe |
Condition Notes: |
This Gems Sensors LS-1755 level switch is in good used condition. Includes original box, float, and instruction bulletin. Stainless probe and lead wire appear undamaged. Please contact us with any questions. |
