Description

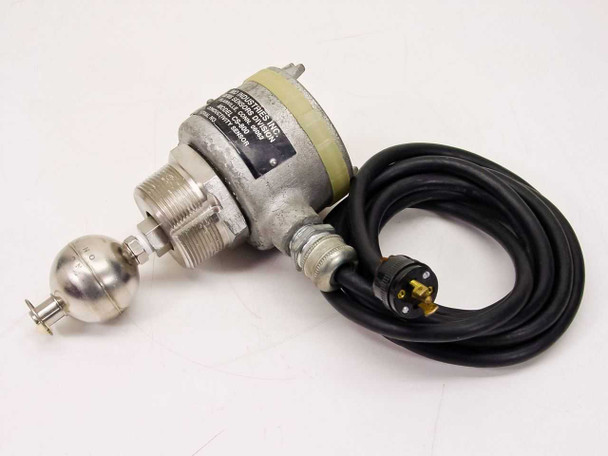

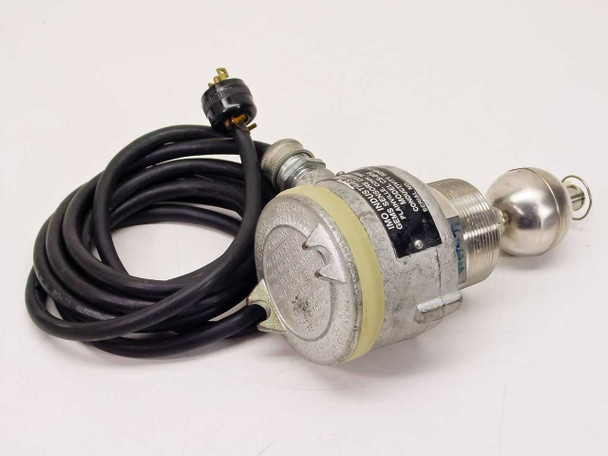

IMO Industries GEMS CS-800 Conductivity Sensor Float Switch Liquid Level
Industrial liquid level and conductivity detection sensor designed for tank monitoring in hazardous locations. Uses a stainless steel float mechanism combined with conductivity sensing to detect liquid presence and level changes.
Specifications & What's Included
- Model: CS-800 (MPN: CS-800)
- Manufacturer: IMO Industries / GEMS Sensors Division, Plainville, CT
- Sensing Method: Conductivity and float-based detection

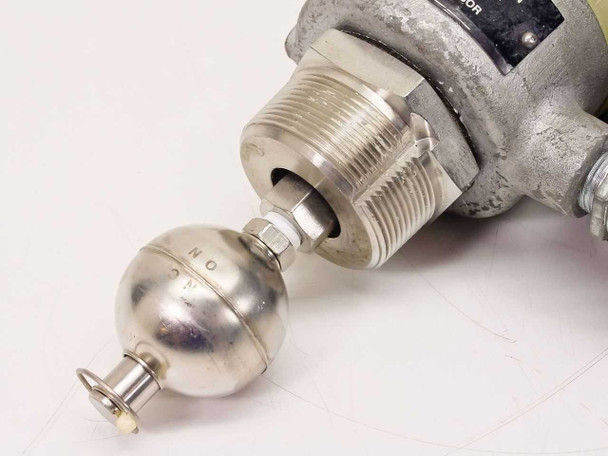

- Float Material: Stainless steel
- Housing: Die-cast aluminum with explosion-proof rating
- Enclosure Rating: NEMA (Appleton type outlet box)
- Connector: 4-pin multi-pin circular connector with attached multi-conductor cable
- Mounting: Threaded NPT
- Includes: Attached cable with 4-pin circular plug and stainless float ball
Applications
This sensor type is used for continuous liquid level monitoring and conductivity detection in industrial tanks and vessels, particularly in hazardous environments requiring explosion-proof equipment. The dual-sensing approach allows detection of both liquid presence and conductivity changes, making it suitable for process control and alarm systems in chemical processing, petrochemical, and utility applications.
This IMO Industries GEMS CS-800 Conductivity Sensor has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The die-cast aluminum housing shows surface oxidation and general wear consistent with industrial service. The stainless steel float ball is present and intact. The attached multi-conductor cable and 4-pin circular connector appear complete and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
IMO Industries / GEMS Sensors |
Model: |
CS-800 |
MPN: |
CS-800 |
Type: |
Conductivity Sensor |
SKU: |
38998 |
Manufacturer Division: |
GEMS Sensors Division |
Manufacturer Location: |
Plainville, CT 06062 |
Sensing Method: |
Conductivity / Float |
Float Material: |
Stainless Steel |
Housing Material: |
Die-Cast Aluminum |
Enclosure Rating: |
Explosion-Proof / Hazardous Location |
Enclosure Standard: |
NEMA (Appleton OZGEONEY type outlet box) |
Connector Type: |
Multi-pin circular connector (4-pin) |
Cable: |
Attached multi-conductor cable with 4-pin circular plug |
Thread Type: |
Threaded NPT mounting (large NPT body threads visible) |
Application: |
Liquid level / conductivity detection in tanks |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached cable with 4-pin circular plug and stainless float ball. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
IMO Industries GEMS CS-800 Conductivity Sensor, inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Housing shows surface wear; stainless float ball and cable intact. |
