GE

GE 9T61Y2025 Luminous Tube Transformer 120V Primary 6000V Secondary 100VA 30mA

(No reviews yet) Write a Review
SKU:
52532
MPN:
9T61Y2025
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
23.00 LBS
Shipping:
Calculated at Checkout
  • GE 9T61Y2025 Luminous Tube Transformer front view showing DANGER HIGH VOLTAGE label and two porcelain-insulated high-voltage output leads
  • GE 9T61Y2025 Luminous Tube Transformer rear and side view showing black steel enclosure, mounting feet, and high-voltage lead cables

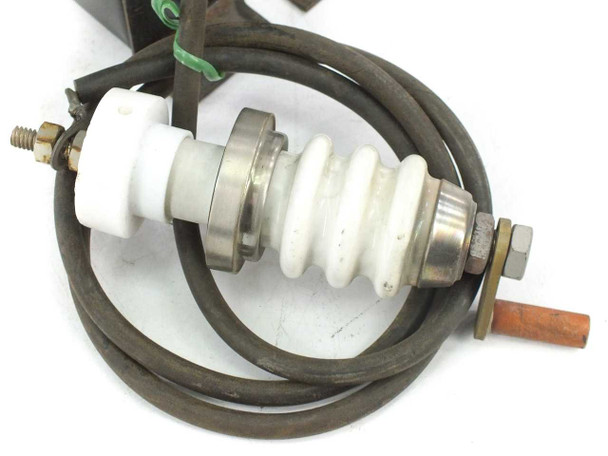

  • Close-up of GE 9T61Y2025 porcelain high-voltage output lead insulator with copper electrode and rubber cable
  • GE 9T61Y2025 Luminous Tube Transformer rating plate showing General Electric name, model number, CY 60, 120V primary, 100VA, 6000V secondary, 30mA, high power factor, Made in USA
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

GE 9T61Y2025 Luminous Tube Transformer 120V Primary 6000V Secondary 100VA 30mA

Single-phase transformer designed to step up 120V AC input to 6000V AC output for neon and luminous tube applications. Rated 100 VA with 30 mA secondary current at 60 Hz.

Specifications & What's Included

  • Brand: General Electric
  • Model: 9T61Y2025
  • Primary: 120V AC, 60 Hz
  • Secondary: 6000V AC, 30 mA
  • Power Rating: 100 VA
  • High Power Factor, Single Phase
  • Midpoint of HV winding grounded to case
  • Includes attached high-voltage porcelain-insulated output leads

Applications

Luminous tube transformers supply the high voltage required to ignite and operate neon signs, fluorescent displays, and specialty lighting tubes. This GE model was commonly used in commercial signage, architectural lighting, and industrial control panel applications where standard line voltage needed conversion to neon-safe levels. Compatible with standard neon tube assemblies and sign installations from the mid-to-late industrial era.

Condition: Used
This GE 9T61Y2025 Luminous Tube Transformer has been inspected and appears to be in good used condition. The black steel enclosure shows general surface wear and some soiling consistent with its age, but there is no visible physical damage to the housing. Both porcelain-insulated high-voltage output leads are present and intact. The rating plate is legible and confirms all key specifications. This unit has not been powered or tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
General Electric
Model:
9T61Y2025
MPN:
9T61Y2025
Type:
Luminous Tube Transformer
SKU:
52532
Primary Voltage:
120V
Secondary Voltage:
6000V
Power Rating:
100 VA
Secondary Current:
30 mA
Frequency:
60 Hz
Power Factor:
High Power Factor
Grounding:
Midpoint of High Voltage Winding Grounded to Case
Phase:
Single Phase
Output Type:
High Voltage AC
Country/Region of Manufacture:
United States
Condition:
Used – Inspected, Not Bench-Tested
Seller Notes:
Includes attached high-voltage porcelain-insulated output leads
Condition Notes:
GE 9T61Y2025 Luminous Tube Transformer inspected, in good used condition. Surface wear on enclosure; both porcelain HV leads present and intact. Not powered or tested at our facility. View photos and contact us with questions.
View AllClose

Related Products

Related Products

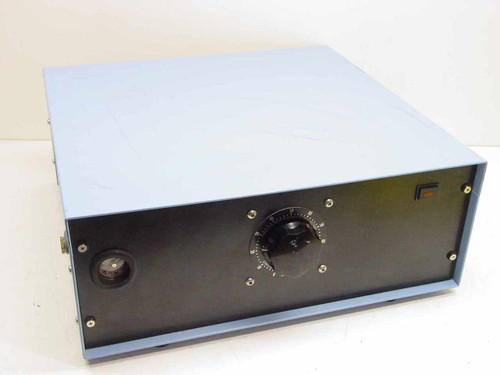

Staco SQ 1010 Variac in Equipto steel instrument cabinet — 3/4 front-left view showing blue enclosure, front panel dial, and meter Staco SQ 1010 Variac cabinet — rear panel view showing dual IEC power inlets, two DB25 connectors, multi-pin circular connector, and BNC connectors
