Burton 15180 AC-AC Transformer 120V Primary 8/20/32/40V Multi-Tap Secondary 80VA

Burton 15180 AC-AC Transformer 120V Primary 8/20/32/40V Multi-Tap Secondary 80VA

The Burton 15180 is a single-phase, open-frame AC-AC step-down transformer with a 120V primary and four selectable secondary output taps: 8, 20, 32, and 40 volts AC. Rated at 80VA and 60Hz, it is a wire-lead unit with a common red neutral wire shared across the secondary taps — connect the red wire as your neutral and attach your second lead to whichever labeled wire delivers the AC voltage you need.

Specifications & What's Included

• Model: Burton 15180
• Type: AC-AC Step-Down Transformer, Open Frame / Chassis Mount
• Phase: Single Phase
• Primary Voltage: 120V AC
• Secondary Voltage: 8 / 20 / 32 / 40V AC (multi-tap)
• Power Rating: 80 VA
• Frequency: 60 Hz

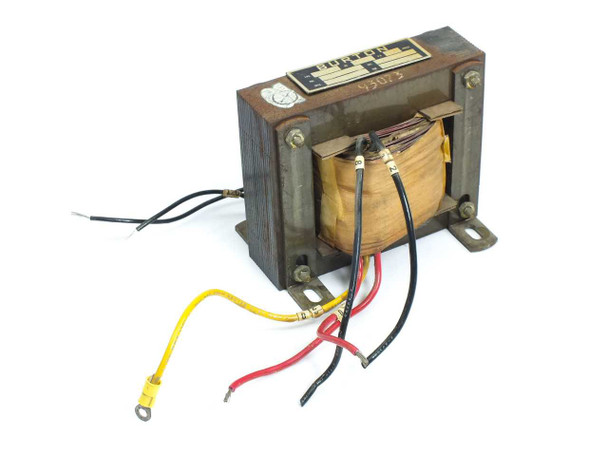

• Output Neutral: Red wire — acts as common neutral for all secondary taps
• Connection Type: Wire leads with ring terminals

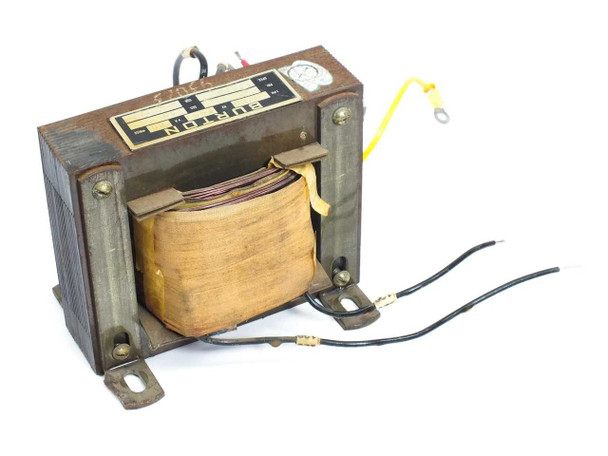

• Construction: Open-frame laminated steel core with varnish-impregnated coil winding
• Mounting: Chassis-mount with integral steel frame and bolt holes
• Dimensions: 5.25" x 4.5" x 3.75"

Applications

Multi-tap chassis-mount transformers like the Burton 15180 are used wherever a piece of equipment or control circuit needs a low-voltage AC supply derived from a standard 120V line. The four selectable secondary taps make it versatile for powering indicator lights, relays, solenoids, timing circuits, small motors, and other low-voltage AC loads within industrial control panels, test fixtures, and custom equipment builds. Open-frame transformer designs of this type were — and still are — common in OEM equipment manufacturing, where the transformer is mounted directly to a chassis or panel as part of a larger assembly. Burton has supplied industrial and OEM transformers of this style since the mid-20th century, and units like this remain practical for maintenance, repair, and custom project applications wherever a 120V to 8–40VAC conversion at modest power levels is needed.
