Gateway Communications WNIM-Z80 82200094-04 8-Bit ISA Network Card 1990

(No reviews yet) Write a Review
SKU:
40923
MPN:
82200094-04
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Gateway Communications WNIM-Z80 82200094-04 8-bit ISA network card – top component side showing full board layout and ISA edge connector
  • Gateway Communications WNIM-Z80 82200094-04 – solder side (bottom) of board with DB44 rear-bracket connector visible

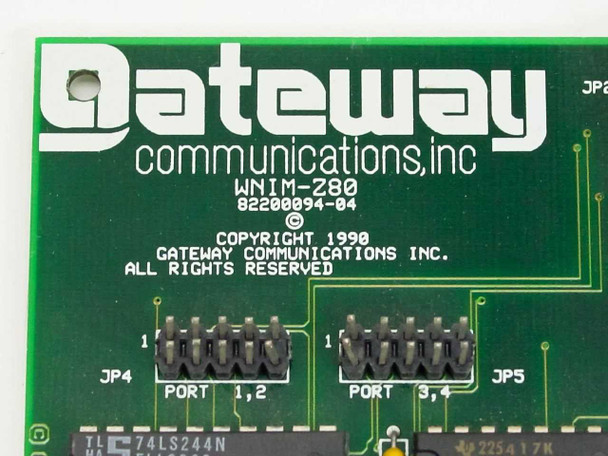

  • Gateway Communications, Inc. WNIM-Z80 82200094-04 silkscreen label close-up showing copyright 1990 and JP4/JP5 port jumper headers
  • Gateway Communications WNIM-Z80 – close-up of Zilog Z80 CPU and Z80 SCC ICs plus support logic chips on component side
  • Gateway Communications WNIM-Z80 82200094-04 – opposite end of component side showing additional logic ICs, DIP switches, and FCC compliance label
  • Gateway Communications WNIM-Z80 – angled side view showing DB44 bracket connector, full card length, and component density
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

Gateway Communications WNIM-Z80 82200094-04 8-Bit ISA Network Card 1990

An 8-bit ISA WAN network interface card designed for legacy IBM PC/XT compatible systems. The card uses a Zilog Z80 processor and connects via a DB44 high-density D-sub connector on the rear bracket.

Specifications & What's Included

  • Model: WNIM-Z80 (MPN: 82200094-04)
  • Bus Interface: 8-Bit ISA
  • Controller: Zilog Z80 CPU with multiple Z80 and Z80 SCC ICs
  • Connector: DB44 high-density D-sub rear bracket
  • Ports: 4 (JP4/JP5 jumper headers)
  • Form Factor: Full-length ISA card
  • Year: 1990
  • Includes: Card only; no cables or documentation

Applications

This card was used to add WAN networking capabilities to IBM PC/XT and compatible systems from the late 1980s and early 1990s. It functions as a dedicated network interface for wide-area network connectivity in legacy DOS and early Windows environments. The Z80 processor offloads network processing from the host system. Suitable for restoration projects, retro computing setups, or systems requiring period-appropriate WAN connectivity hardware.

Condition: Used
This Gateway Communications WNIM-Z80 8-bit ISA network card (part 82200094-04) has been inspected and is in good used condition. The board is clean with no visible cracks, burn marks, or damaged traces. The ISA edge connector and rear DB44 connector show normal contact wear consistent with prior installation. Component ICs and solder joints appear intact across the board. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Gateway Communications
Model:
WNIM-Z80
MPN:
82200094-04
Type:
8-Bit ISA WAN Network Interface Card
SKU:
40923
Bus Interface:
8-Bit ISA
Controller / CPU:
Zilog Z80 (multiple Z80 and Z80 SCC/CPU ICs)
Connector Type:
DB44 (high-density D-sub, rear bracket)
Form Factor:
Full-Length ISA Card
Ports:
4 (PORT 1,2 and PORT 3,4 jumper headers, JP4/JP5)
Year / Copyright Date:
1990
Manufacturer:
Gateway Communications, Inc.
Compatible With:
IBM PC/XT and compatible systems with 8-bit ISA slot
Condition:
Used – Inspected
Country/Region of Manufacture:
United States
Seller Notes:
Card only; no cables or documentation included.
Condition Notes:
Gateway Communications WNIM-Z80 82200094-04 ISA network card. Inspected; board is clean, no visible damage. ISA and DB44 connectors show normal wear. Good used condition.
View AllClose

Related Products

Related Products

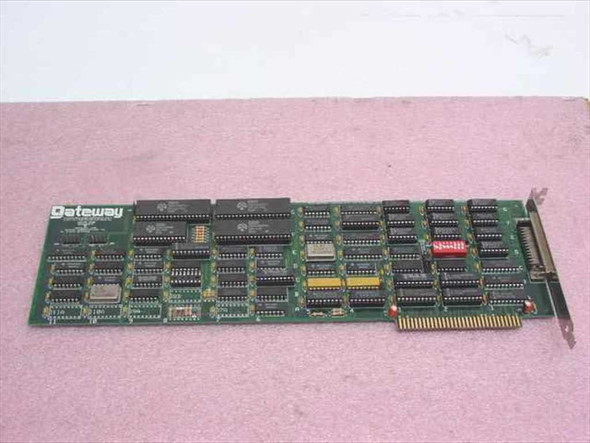

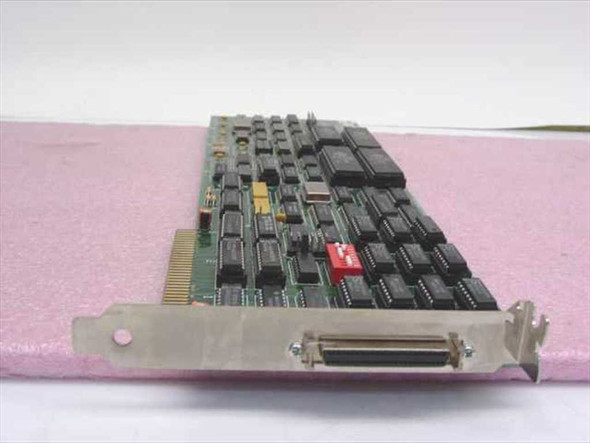

Gateway Communications WNIM-Z80 ISA multiport card – angled side view showing full card length and DB-25 bracket connector Gateway Communications WNIM-Z80 8-bit ISA multiport card – top-down view showing PCB, chips, and ISA edge connector
Add to Cart
Quick view

Gateway Communications WNIM-Z80 4-Channel 8-Bit ISA Multiport Card 82200090-2

Gateway

$35.00
Was: $70.00
Gateway Communications WNIM-Z80 4-Channel 8-Bit ISA Multiport Card 82200090-2ISA expansion card providing four serial communication channels for legacy PC systems. Adds multiport serial connectivity...
34731
SKU:
34731
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Gateway Communications
Model:
WNIM-Z80
MPN:
82200090-2
Type:
8-Bit ISA Multiport Serial Expansion Card
SKU:
34731
Number of Channels:
4
Bus Type:
ISA (8-bit)
Form Factor:
Full-Length ISA Card
Interface Type:
Serial / Multiport
Connector Type:
DB-25 (single bracket connector)
Compatible With:
IBM PC/XT, PC/AT, and ISA-bus compatible systems
Condition:
Used – Inspected, Not Tested at Facility
Seller Notes:
Card only. No cables or software included.
Country/Region of Manufacture:
United States
Year:
1990
Era / Platform:
Circa 1990, ISA-bus PC expansion
Condition Notes:
Gateway Communications WNIM-Z80 ISA Multiport Card 82200090-2 inspected and in good condition. Not powered or tested at our facility. PCB clean, no visible damage. DB-25 connector intact.

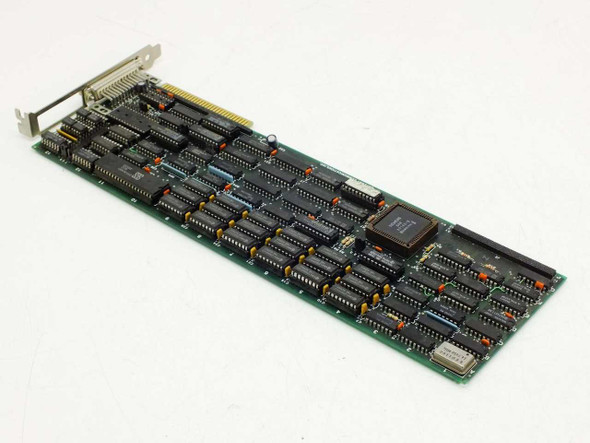

Gateway Communications 82200045-03 WNIM/186 8-bit ISA WAN card – top-side component view showing ICs and ISA edge connector Gateway Communications 82200045-03 WNIM/186 ISA card – reverse angle top view showing full board layout and DB-25 bracket connector
Add to Cart
Quick view

Gateway Communications 82200045-03 8-Bit ISA WNIM/186 WAN Network Card

Gateway Communications

$45.00
Was: $90.00
Gateway Communications 82200045-03 8-Bit ISA WNIM/186 WAN Network CardThe Gateway Communications 82200045-03 is an 8-bit ISA WAN Network Interface Module built around an Intel 80186 processor — hence...
46770
SKU:
46770
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Gateway Communications
Model:
82200045-03
MPN:
82200045-03
Type:
8-Bit ISA WAN Network Interface Card
SKU:
46770
Form Factor:
8-Bit ISA Card
Bus Interface:
ISA (8-bit)
Interface Type:
WAN / Serial
Connector Type:
DB-25 (female, bracket-mounted)
Processor / Controller:
Intel 80186 (186-based)
Era / Vintage:
Circa 1990
Condition:
Used – Inspected, Good Condition
Compatible With:
IBM PC/XT/AT and ISA-bus compatible systems
Country/Region of Manufacture:
United States
Seller Notes:
Card only; no cables or software included.
Condition Notes:
Gateway Communications 82200045-03 WNIM/186 ISA WAN card. Inspected, good used condition. Normal age patina; no cracked traces or missing components. DB-25 connector and ISA edge contacts intact. Not powered or tested at our facility.

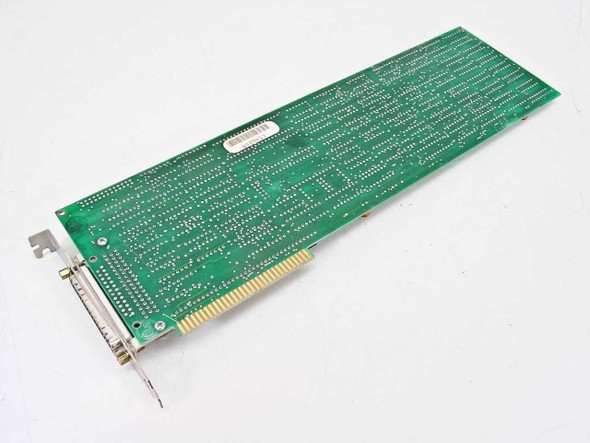

Gateway Communications 82200091-01 8-bit ISA I/O card – top-side component view showing full PCB layout with ICs and 50-pin bracket connector Gateway Communications 82200091-01 ISA communication card – solder-side (bottom) view showing full PCB trace layout and 50-pin D-sub connector at bracket
