Description

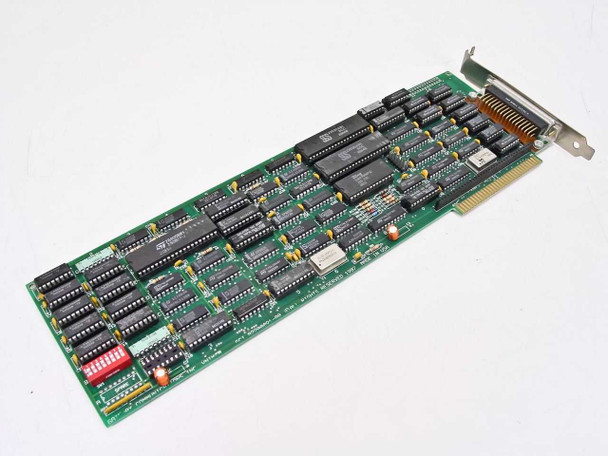

Gateway Communications 82200091-01 8-Bit ISA 50-Pin I/O Communication Card
An 8-bit ISA communication I/O card designed for legacy computer systems. The card provides a single 50-pin D-sub external connector for serial or parallel communication interfaces in industrial and telecom applications.
Specifications & What's Included
- Bus Type: 8-bit ISA (compatible with 8-bit and 16-bit ISA slots)
- Connector: 1 x 50-pin D-sub external connector
- Form Factor: Full-length ISA card

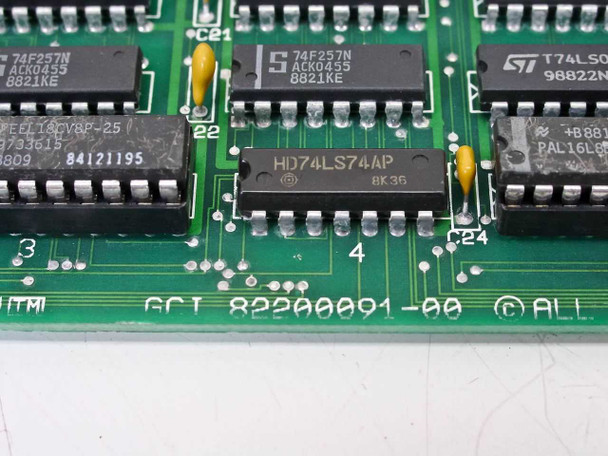

- Chipset: HD74LS74AP, 74F257N, ST T74LS, PAL16L8

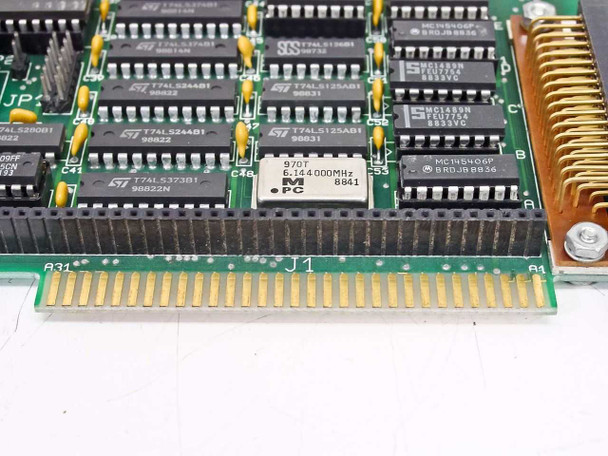

- Clock: 6.144000 MHz
- Configuration: 8-position DIP switch (SW1) for address and IRQ settings
- Card only; no cables or accessories included
Applications
This card type was used in 1980s and 1990s industrial control systems, telecom equipment, and data acquisition platforms running on ISA-based computers. It serves communication and I/O expansion roles in legacy DOS and early Windows systems. Commonly found in manufacturing automation, test equipment, and telecommunications infrastructure where serial or parallel device interfacing was required on ISA bus architecture.

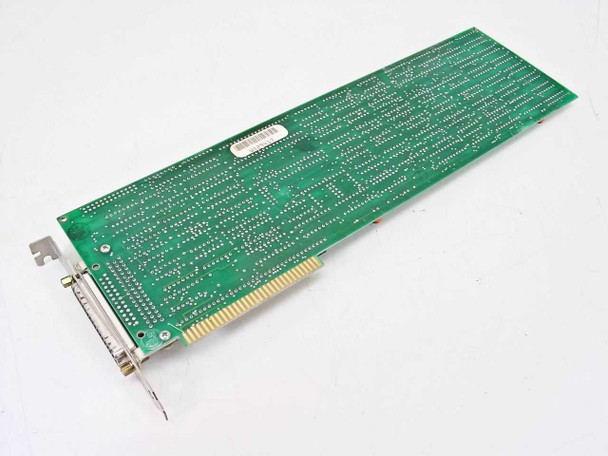

This Gateway Communications 82200091-01 8-bit ISA 50-pin I/O communication card is in used condition. The PCB is clean with no visible damage, cracked traces, or missing components. The 50-pin D-sub bracket connector is intact and the ISA edge connector fingers appear in good shape. Normal handling marks are present on the PCB consistent with prior installation and removal from a system. A Daktronics label sticker is visible on the bracket. The card has not been independently bench-tested at our facility — we are not able to confirm tested/working status from the available information, and a human review of the condition claim is recommended before listing. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Gateway Communications |
Model: |
82200091-01 |
MPN: |
82200091-01 |
Secondary Model: |
82200091-00 |
Type: |
ISA Communication I/O Card |
SKU: |
10243 |
Bus Type: |
ISA (8-bit) |
Connector Type: |
50-Pin D-Sub (DB50) |
Form Factor: |
Full-Length ISA Card |
Interface: |
8-Bit ISA |
Number of Ports: |
1 x 50-pin D-sub external connector |
Compatible With: |
8-bit and 16-bit ISA slot PCs |
PCB Revision: |
GCT 82200091-00 (PCB marking) |
Manufacturer: |
Gateway Communications Inc. |
Chipset: |
HD74LS74AP, 74F257N, ST T74LS, PAL16L8 |
Crystal / Clock: |
6.144000 MHz |
Configuration: |
8-position DIP switch (SW1) for address/IRQ config |
Condition: |
Used – Inspected |
Seller Notes: |
Card only; no cables or accessories included |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Gateway Communications 82200091-01 8-bit ISA 50-pin I/O communication card is in used condition. The PCB is clean with no visible damage, cracked traces, or missing components. |
