GasTech 24-0142 HF Gas Detection Input Module Card EIL YE/286113FAFA

(No reviews yet) Write a Review
SKU:
45771
MPN:
24-0142
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

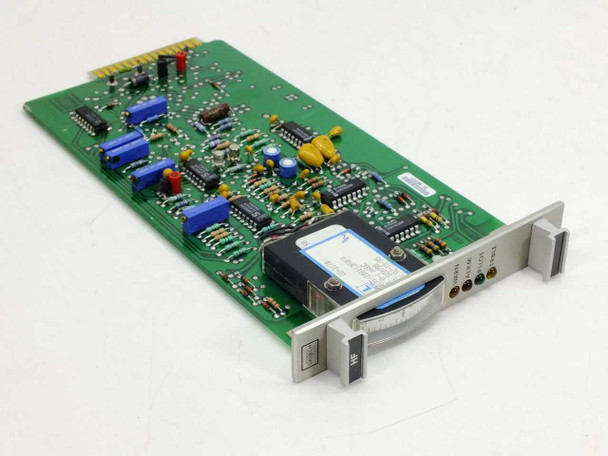

  • GasTech 24-0142 HF Gas Detection Input Module Card — angled top view showing PCB components, blue capacitors, ICs, and EIL analog meter assembly with front panel

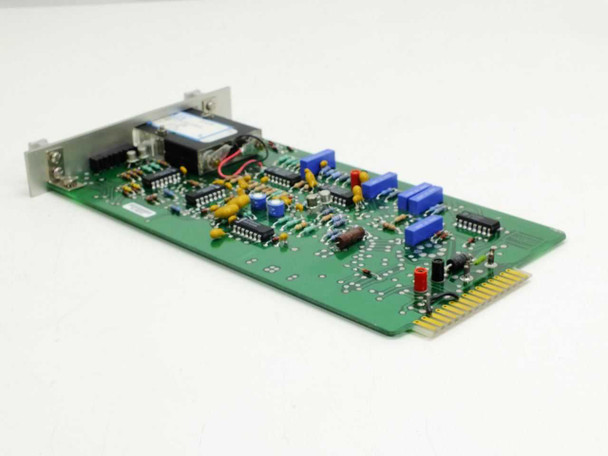

  • GasTech 24-0142 Input Module — rear three-quarter view showing PCB underside, transformer, DIP ICs, trim pots, and gold-finger card edge connector

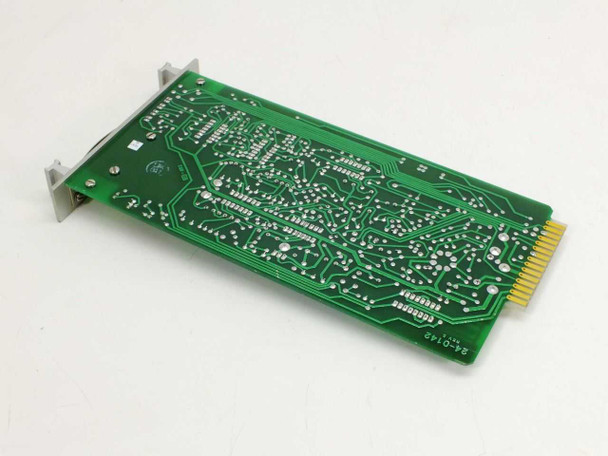

  • GasTech 24-0142 Input Module Card — bottom PCB view showing solder side with part number 24-0145 silkscreen and gold card edge connector

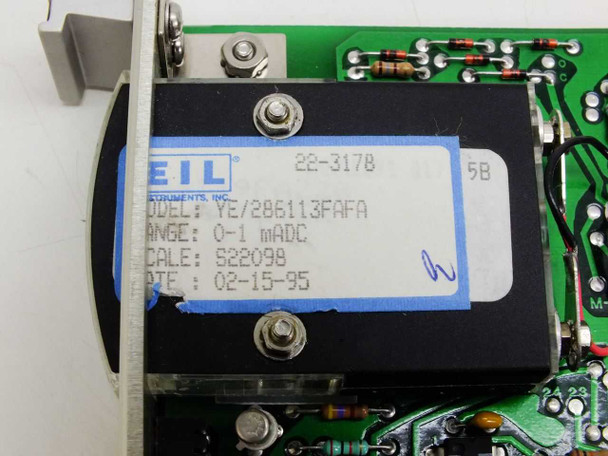

  • GasTech 24-0142 Input Module — close-up of EIL Instruments meter label showing model YE/286113FAFA, range 0-1 mADC, calibration date 02-15-95, part 22-3178

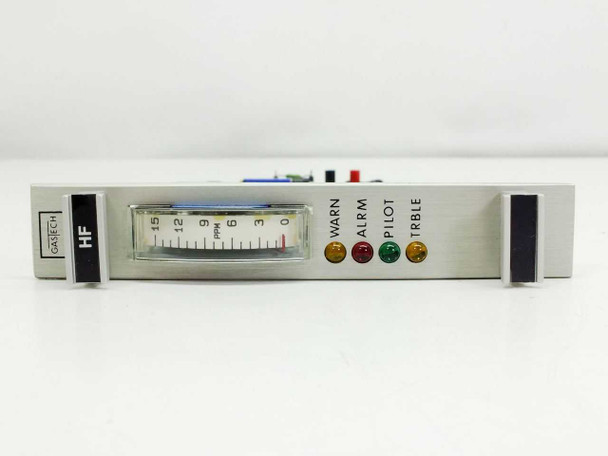

  • GasTech 24-0142 HF Input Module — front panel view showing brushed aluminum faceplate with analog meter scale, GasTech and HF labels, and four LED indicators: WARN, ALRM, PILOT, TRBLE
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

GasTech 24-0142 HF Gas Detection Input Module Card EIL YE/286113FAFA

This is a gas detection input module card designed to measure hydrogen fluoride (HF) gas concentrations. The card plugs into a rack-mount chassis and interfaces with an EIL analog meter for readout and monitoring.

Specifications & What's Included

  • Model: GasTech 24-0142 / YE/286113FAFA
  • Gas Type: HF (Hydrogen Fluoride)
  • Input Range: 0–1 mADC
  • Meter: EIL Analog Meter, Model YE/286113FAFA (Part 22-3178)
  • Status Indicators: WARN, ALRM, PILOT, TRBLE (4 LEDs)
  • Form Factor: Card/Module with gold-finger edge connector
  • Front Panel: Brushed aluminum with integrated meter and LED indicators
  • Manufactured: United States
  • Calibration Date: 02-15-95

Applications

This input module type was used in industrial gas monitoring systems, particularly in chemical processing, semiconductor manufacturing, and hazardous gas detection networks. The card integrates into larger control or safety systems that require continuous HF concentration monitoring. GasTech modules of this generation are compatible with standard EIA rack-mount telecom and industrial control frames.

Condition: Used
This GasTech 24-0142 HF Gas Detection Input Module has been inspected and is in good condition. The PCB is clean with no obvious damage, broken components, or burned areas. The brushed aluminum front panel is intact, and the four LED indicators (WARN, ALRM, PILOT, TRBLE) and the EIL analog meter assembly are present. The gold-finger card edge connector shows normal contact wear. The EIL meter (model YE/286113FAFA, range 0–1 mADC) has a calibration label dated 02-15-95. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
GasTech
Model:
24-0142
MPN:
24-0142
Secondary Model:
YE/286113FAFA
Type:
Gas Detection Input Module Card
SKU:
45771
Gas Type:
HF (Hydrogen Fluoride)
Input Range:
0-1 mADC
Meter Type:
EIL Analog Meter, Model YE/286113FAFA
EIL Part Number:
22-3178
Calibration Date:
02-15-95
Status Indicators:
WARN, ALRM, PILOT, TRBLE (4 LEDs)
Form Factor:
Card/Module (rack-mount plug-in card)
Edge Connector:
Gold-finger card edge connector
Front Panel:
Brushed aluminum panel with meter and LED indicators
Seller Notes:
Includes card with EIL meter and front panel assembly
Country/Region of Manufacture:
United States
Condition Notes:
GasTech 24-0142 HF Gas Detection Input Module. Inspected and in good condition. PCB clean, front panel intact, EIL meter and LED indicators present. Card edge connector shows normal wear. Please contact us with any questions.
View AllClose

Related Products

Related Products

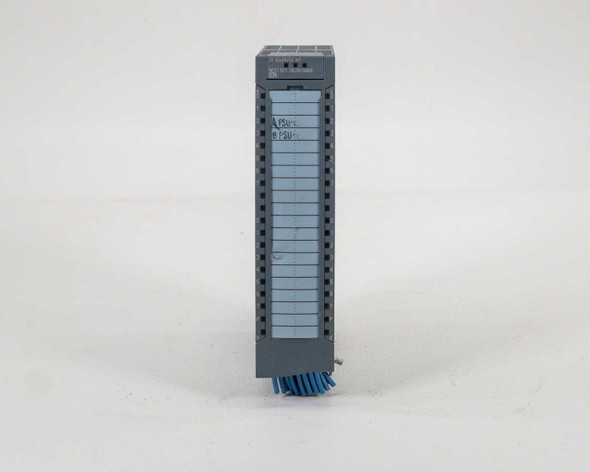

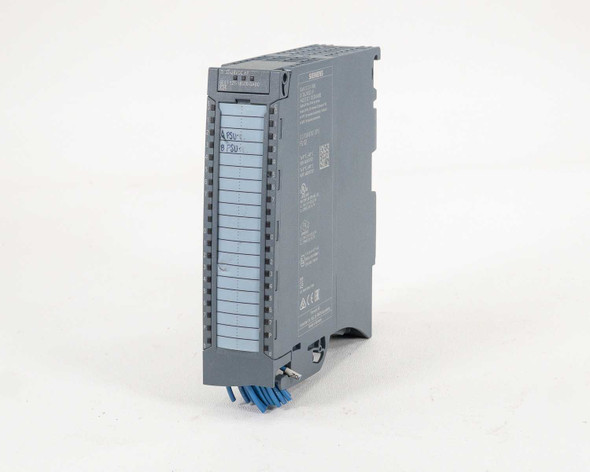

Siemens 6ES7521-1BL00-0AB0 S7-1500 digital input module – angled front-left view showing blue wiring connector and front label Siemens 6ES7521-1BL00-0AB0 S7-1500 digital input module – straight-on front view showing terminal label strips and status LEDs
