Fuji Electric BRR19N-02S Earth Leakage Protective Relay 25mm 100mA 200/220V
The Fuji Electric BRR19N-02S is a current-operated earth leakage protective relay (漏電リレー) designed to detect ground fault leakage currents and trigger a protective circuit response. The relay operates by sensing residual current through a zero-phase current transformer (ZCT) with a 25mm aperture and trips when leakage reaches the 100mA threshold, opening the associated contactor or circuit breaker within 0.1 seconds. It is a compact, panel-mount relay unit from Fuji Electric Co., Ltd., manufactured in Japan.
Specifications & What's Included
- Model: BRR19N-02S
- Manufacturer: Fuji Electric Co., Ltd.
- Type: Earth Leakage Protective Relay (電流動作形 — current operated)
- Sensor aperture (ZCT core diameter): 25mm
- Sensitive current (trip level): 100mA
- Rated control voltage: AC 200/220V
- Operating time: Within 0.1 seconds
- Continuous contact current: 3A
- Interrupting capacity (COS φ=1): AC200V — 3A; AC100V — 3A
- Interrupting capacity (COS φ=0.4): AC200V — 1A; AC100V — 1A
- Output terminals: 21, 22, 24 (screw-type)
- Reset button: Green push button (リセットボタン)
- Test button: Red push button (テストボタン)
- Leakage indicator: Red LED (漏電表示)
- Housing: Black molded plastic, compact rectangular form
- Manufacture date: September 1999 (99-09)
- Country of manufacture: Japan
- Relay unit only — no mounting hardware or cables included
Applications
Earth leakage protective relays like the BRR19N-02S are used in industrial electrical panels and motor control centers to provide ground fault protection for equipment and personnel. They work in conjunction with a separate zero-phase current transformer (ZCT) clipped around the load conductors: when the vector sum of line currents deviates from zero by the set threshold — indicating current leaking to ground — the relay energizes to trip a contactor or shunt-trip breaker and disconnect the load. The BRR19N series is commonly used in Japanese industrial machinery, factory automation systems, HVAC control panels, and general-purpose motor circuits operating at 200/220V. This type of relay is standard in Japanese electrical distribution practice and continues to be used in maintenance and replacement applications for legacy industrial equipment.

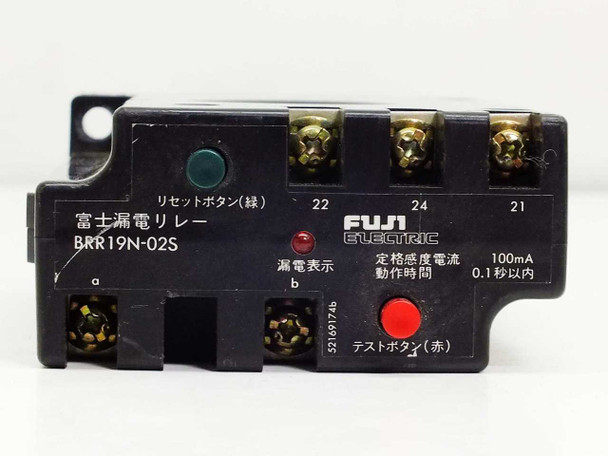

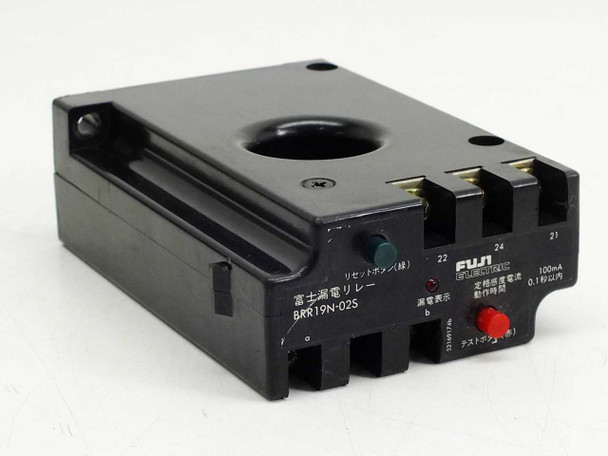

This Fuji Electric BRR19N-02S Earth Leakage Protective Relay has been inspected and is in good condition. It was pulled from a working environment where it was previously in use. The housing is clean with only minor signs of normal use; the green reset button, red test button, and leakage indicator are all present and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Fuji Electric |
Model: |
BRR19N-02S |
MPN: |
BRR19N-02S |
Type: |
Earth Leakage Protective Relay |
SKU: |
46753 |
Sensitive Current (Trip Level): |
100mA |
Sensor Aperture (Core Diameter): |
25mm |
Rated Control Voltage: |
AC 200/220V |
Contact Current Rating (Continuous): |
3A |
Contact Rating (Interrupting) COS=1: |
AC200V: 3A; AC100V: 3A |
Contact Rating (Interrupting) COS=0.4: |
AC200V: 1A; AC100V: 1A |
Operation Type: |
Current operated (電流動作形) |
Reset Button: |
Green push button (リセットボタン) |
Test Button: |
Red push button (テストボタン) |
Leakage Indicator: |
Red LED (漏電表示) |
Terminal Numbers: |
21, 22, 24 |
Country/Region of Manufacture: |
Japan |
Manufacture Date: |
September 1999 (99-09) |
Seller Notes: |
Relay unit only — no mounting hardware or cables included. |
Condition Notes: |
This Fuji Electric BRR19N-02S Earth Leakage Protective Relay has been inspected and is in good condition, pulled from a working environment. Minor normal wear only; all buttons and indicator present. Please contact us with any questions. |
