Finder 60.12.9.024.0060 10A 250V AC 24V DC Coil DPDT Relay w/ Type 90.20 Socket

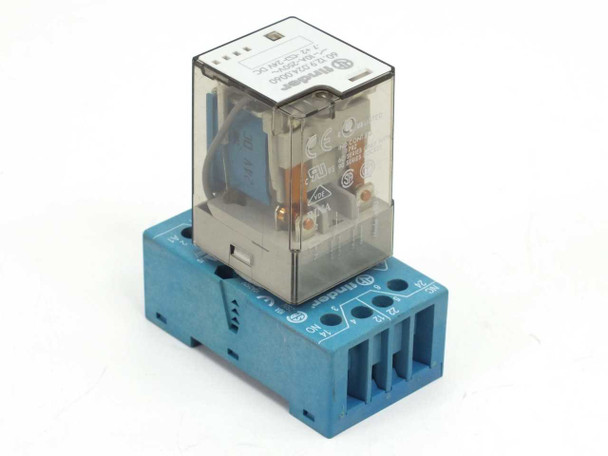

This listing includes a Finder 60.12.9.024.0060 plug-in electromechanical relay and a matching Finder Type 90.20 DIN rail socket. The relay is a double-pole double-throw (DPDT / 2CO) design rated for 10A at 250V AC on its switching contacts, operated by a 24V DC coil. The 90.20 socket provides screw-terminal wiring connections and snaps onto standard DIN rail for panel mounting.
Specifications & What's Included
- Manufacturer: Finder
- Relay model / MPN: 60.12.9.024.0060
- Socket model: Finder Type 90.20
- Contact configuration: DPDT — 2 changeover (2CO)
- Contact current rating: 10A
- Contact voltage rating: 250V AC
- Coil voltage: 24V DC

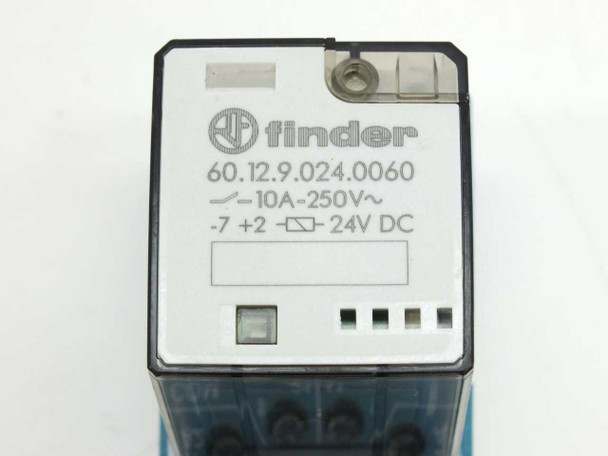

- Coil voltage tolerance: -7% / +2% (per label)
- Mounting: plug-in relay seated in Type 90.20 DIN rail socket
- Housing: transparent dust-proof relay body
- Wiring: screw terminals on 90.20 socket base
- Includes: Finder 60.12.9.024.0060 relay + Finder Type 90.20 socket
Applications
Finder's Series 60 plug-in relays are widely used in industrial control panels, machine automation, building management systems, and process control equipment. The DPDT contact configuration lets a single relay switch two independent circuits simultaneously — common in PLC output stages, motor control interlock circuits, HVAC control panels, and general-purpose switching applications where load isolation is needed. The plug-in-and-socket format makes replacement straightforward without rewiring the panel: the socket stays wired in the panel while the relay body unplugs for swap-out. The Type 90.20 socket mounts on standard 35mm DIN rail and accepts screw-terminal field wiring, making this combination a standard building block in European and internationally designed control panels. Finder relays of this series date from the 1990s onward and remain in active production and widespread use today, with good availability of compatible sockets and accessories.
This Finder 60.12.9.024.0060 DPDT relay with Type 90.20 socket has been inspected and appears to be in good condition. The relay body and transparent cover show minor handling marks consistent with prior use, and the blue 90.20 socket and its screw terminals look clean and intact. Both the relay and socket are included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Finder |
Model: |
60.12.9.024.0060 |
MPN: |
60.12.9.024.0060 |
Type: |
DPDT Plug-In Electromechanical Relay |
SKU: |
47718 |
Coil Voltage: |
24V DC |
Contact Configuration: |
DPDT (2CO — 2 Changeover) |
Contact Current Rating: |
10A |
Contact Voltage Rating: |
250V AC |
Number of Poles: |
2 |
Mounting Type: |
DIN Rail (via socket) |
Socket / Base: |
Finder Type 90.20 |
Coil Voltage Range: |
-7 / +2 (nominal 24V DC) |
Form Factor: |
Plug-In / Socket Mount |
Country/Region of Manufacture: |
Italy |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Includes relay and matching Finder Type 90.20 DIN rail socket. |
Condition Notes: |
Finder 60.12.9.024.0060 DPDT relay with Type 90.20 DIN rail socket. Inspected and in good condition; minor handling marks, terminals clean and intact. Both relay and socket included. |
