Fiber Optic Ring Light Guide Flex Cable 8-Port Microscope Illuminator 80mm OD

(No reviews yet) Write a Review
SKU:
46698
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

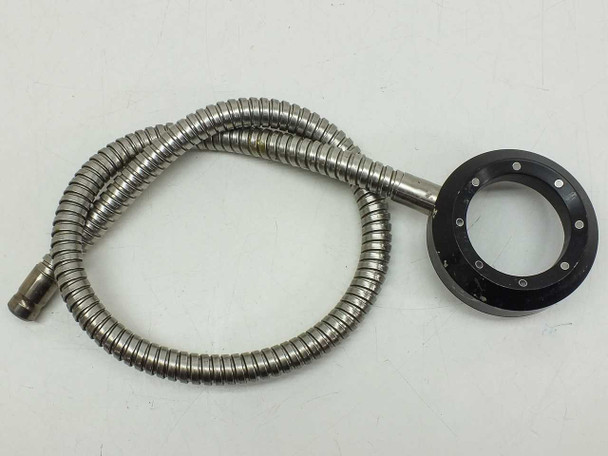

  • Fiber optic ring light guide full assembly — stainless armored flex cable coiled with black anodized 8-port illuminator ring, front face view
  • Fiber optic microscope ring light guide — full assembly side view showing smooth inner bore of black ring and input tip connector at cable end
  • Close-up of 8-port fiber optic illuminator ring face — 8 circular fiber output ports arranged around black anodized aluminum ring, flex cable attaching at top
  • Fiber optic ring light guide — rear mounting surface of black anodized ring showing smooth bore and flat mounting face, 49mm inner diameter visible
  • Close-up of fiber optic input light tip — cylindrical stainless metal connector with fiber bundle end visible, showing tarnish and wear on metal surface
  • Macro end-on view of fiber optic input tip — fiber bundle center clearly visible as dark circle, metal connector shows patina and surface tarnish
$65.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Fiber Optic Ring Light Guide Flex Cable 8-Port Microscope Illuminator 80mm OD

This fiber optic ring light guide is a flexible illumination cable designed to couple an external fiber optic light source to a stereo or inspection microscope. The stainless steel armored flex cable carries fiber bundles from the input tip to an 8-port circular ring mount, which surrounds the microscope objective and delivers even, shadow-free illumination directly onto the specimen. The ring attaches around the objective lens or specimen stage, and the input tip plugs into a compatible fiber optic illuminator/light source (sold separately).

Specifications & What's Included

  • Type: Fiber optic ring light guide with flex cable
  • Number of fiber output ports: 8, arranged around the ring face
  • Ring outer diameter (OD): 80mm
  • Ring inner diameter (ID): 49mm
  • Ring construction: Black anodized aluminum
  • Cable construction: Stainless steel armored flexible cable
  • Overall assembly length: Approx. 31.5 in
  • Cable length: Approx. 28.5 in
  • Input light tip length: 25mm
  • Input light tip diameter: 15mm
  • Light source / power supply: NOT included — sold separately
  • Includes: Ring light guide and flex cable assembly only

Applications

Fiber optic ring light guides are standard illumination accessories for stereo microscopes, inspection microscopes, and low-power biological microscopes used in electronics assembly, PCB inspection, gemology, entomology, watchmaking, medical device manufacturing, and quality control. The ring-mount design positions the light source output directly around the objective, eliminating shadows and hotspots that cause problems with coaxial or oblique lighting. Because the fiber cable carries light without conducting heat, the specimen stays cool even under prolonged illumination — a key advantage over incandescent ring lights mounted directly on the objective. These accessories are compatible with most fiber optic illuminators that accept a standard-diameter input tip (15mm in this case); buyers should confirm their light source accepts a 15mm input tip before purchasing. The 80mm OD ring suits a wide range of stereo microscope body diameters commonly found in laboratory and industrial settings.

Condition: Used
This fiber optic ring light guide and flex cable assembly has been inspected and appears to be in good used condition. The stainless steel armored flex cable and black anodized aluminum ring are intact with no cracks or breaks. The input tip and ring connector both show some tarnishing and light surface patina on the metal, as visible in the photos — normal for a used item of this type. The fiber bundle and 8-port ring face appear undamaged. No light source or power supply is included. Please review our photos and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Type:
Fiber Optic Ring Light Guide / Illuminator
SKU:
46698
Compatible With:
Stereo microscopes with fiber optic light source input
Number of Light Ports:
8
Ring Outer Diameter (OD):
80mm
Ring Inner Diameter (ID):
49mm
Overall Length:
Approx. 31.5 in (800mm)
Cable Length:
Approx. 28.5 in (724mm)
Input Tip Length:
25mm
Input Tip Diameter:
15mm
Cable Construction:
Stainless steel armored flex cable
Ring Material:
Black anodized aluminum
Light Source Included:
No – light source/power supply sold separately
Form Factor:
Flex cable with ring mount
Application:
Microscope ring illumination / fiber optic lighting
Seller Notes:
Cable and ring assembly only — no light source or power supply included.
Condition Notes:
This fiber optic ring light guide has been inspected and is in good used condition. Cable and ring are intact; input tip and connectors show light surface tarnish typical of age. No light source included. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
