Description
Fiber Optic Ring Light Guide 4-Port Flex Cable Microscope Illuminator 88mm OD

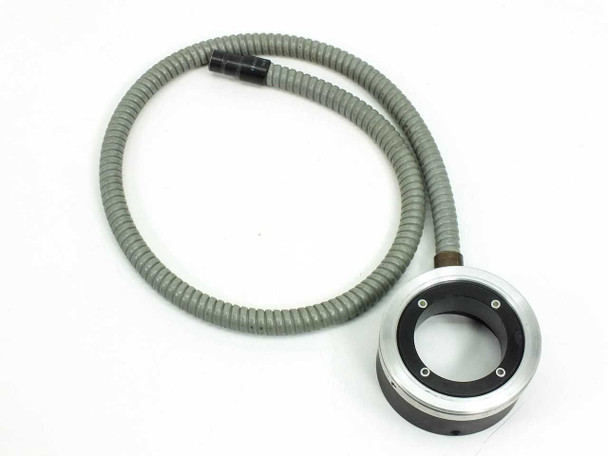

This fiber optic ring light guide is a flexible cable-based illuminator designed to deliver bright, even ring lighting around a microscope objective. The coiled flex cable carries light from an external source to the ring mount, where four evenly spaced ports distribute illumination around the inner circumference of the ring. The ring mounts around the objective or specimen stage of a stereo or inspection microscope to provide shadow-free, annular illumination. No light source or power supply is included.
Specifications & What's Included
- Number of light ports: 4
- Overall length (assembled): approximately 39 in
- Flex cable length: approximately 34.5 in
- Input light tip length: 22 mm
- Input light tip diameter: 15 mm
- Ring outer diameter (OD): 88 mm
- Ring inner diameter (ID): 50 mm
- Ring housing: aluminum outer ring with black inner barrel
- Cable: gray armored flexible conduit with brass fitting at ring junction
- Light source / power supply: NOT included
- Includes: ring light guide and flex cable assembly only
Applications
Fiber optic ring light guides like this one are standard illumination accessories for stereo microscopes, inspection microscopes, and macro photography setups where even, shadow-free lighting is needed around the specimen. The ring format surrounds the objective, eliminating the directional shadows that a single-arm or overhead light source would cast, which is especially important when inspecting surface textures, circuit boards, small mechanical parts, or biological specimens. The flexible cable allows the input end to be positioned at any convenient angle relative to an external fiber optic illuminator or cold-light source. These guides are widely used in electronics inspection, quality control, biological dissection, gemology, and precision assembly work. The 88 mm outer diameter and 50 mm inner diameter are common dimensions for use with standard stereo microscope stands, though compatibility should be verified against the specific microscope model before purchase.
This fiber optic ring light guide has been inspected and is in good used condition. The ring mount and flex cable are intact with no cracks or breaks. The aluminum outer ring shows minor handling wear and there is some surface discoloration on the brass fitting at the cable-to-ring junction, as visible in the photos. All four light ports are present and unobstructed. No light source or power supply is included — the item was illuminated in the photos for display purposes only. Please review our full photo set and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Fiber Optic Ring Light Guide 4-Port |
Type: |
Fiber Optic Ring Light Guide / Illuminator |
SKU: |
46735 |
Number of Light Ports: |
4 |
Cable Length: |
34.5 in (approx.) |
Overall Length: |
39 in (approx.) |
Ring Outer Diameter (OD): |
88 mm |
Ring Inner Diameter (ID): |
50 mm |
Input Light Tip Length: |
22 mm |
Input Light Tip Diameter: |
15 mm |
Light Source Included: |
No — light source not included |
Compatible With: |
Stereo microscopes, inspection microscopes |
Application: |
Microscope ring illumination, specimen lighting |
Seller Notes: |
Ring light guide and flex cable only — no light source or power supply included. |
Condition Notes: |
This fiber optic ring light guide is in good used condition. Ring and flex cable are intact; minor surface wear on the aluminum ring and brass junction fitting. No light source included. Please view photos and contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
