Description
Fasco Industries Type 64 7164-0436 Hospital Bed Linear Actuator Motors 115V 85RPM
This is a matched pair of Fasco Industries Type 64 bi-directional AC linear actuator motors (Div. No. 7164-0436), complete with threaded lead screw shafts, a junction/control box, a two-button hand controller, and all interconnecting cords. Each motor drives a threaded rod in both the clockwise and counter-clockwise directions, providing powered linear extension and retraction. The set operates on standard 120V AC and runs at approximately 85 RPM unloaded.
Specifications & What's Included

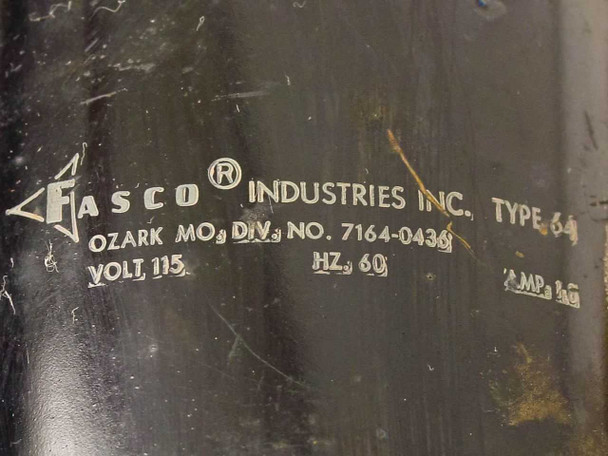

- Brand: Fasco Industries Inc., Ozark, MO
- Type/Model: Type 64, Div. No. 7164-0436
- Quantity: 2 motors (matched pair)
- Supply Voltage: 115V AC
- Frequency: 60 Hz
- Current Draw: 2A (per motor, marked on nameplate)
- No-load Speed: ~85 RPM

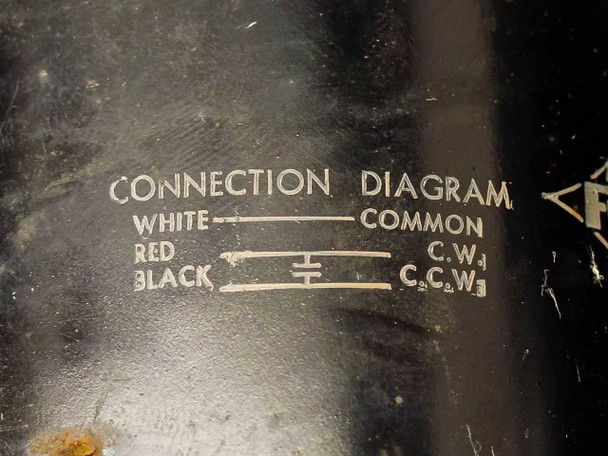

- Rotation: Bi-directional (CW and CCW) — White = Common, Red = CW, Black = CCW
- Threaded Shaft Length: 9 inches
- Thread Pitch: ~3 TPI, double-entry lead screw
- Rod/Shaft Diameter: 0.656 in
- Motor Housing Dimensions: approx. 4.3 × 3.33 in
- Line Cord Length: 102 in (with standard 3-prong AC plug)
- Controller Cord Length: 95 in
- Includes: pair of actuator motors with threaded shafts, phenolic junction/control box, and 2-button hand controller
- Hand Controller: 2-button paddle style — labeled HEAD UP / FOOT UP / DOWN / DOWN; allows independent or simultaneous control of both motors in either direction
Applications
Fasco Industries has long manufactured small fractional-horsepower AC motors for OEM applications across medical, industrial, and HVAC equipment. These Type 64 actuator motors were used as the drive units in electrically adjustable hospital beds — powering the head and foot elevation sections via the threaded lead screw mechanism. The hand controller's

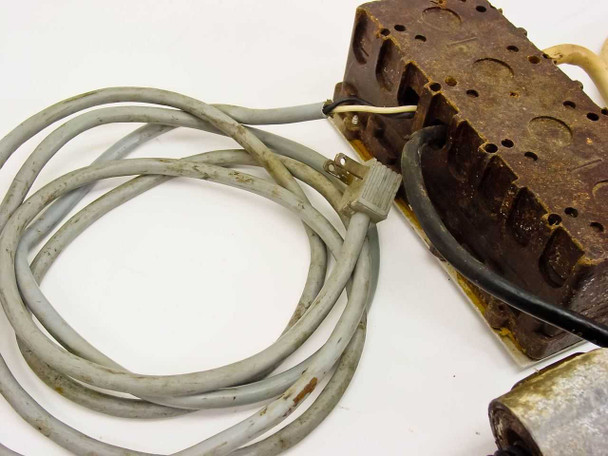

This pair of Fasco Industries Type 64 hospital bed linear actuator motors (Div. No. 7164-0436) has been tested and confirmed in working order. Both motors run in both directions as intended. The units show age-appropriate wear consistent with prior service use — the motor housings have surface oxidation and grime typical of older industrial surplus, the junction box shows discoloration and light corrosion on its phenolic body, and the hand controller housing has yellowing and light soiling on the cord. The threaded shafts are intact and functional. All cords (line cord, controller cord, and motor leads) are present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Fasco Industries |
Model: |
Type 64 |
MPN: |
7164-0436 |
Type: |
Bi-Directional AC Linear Actuator Motor |
SKU: |
35141 |
Voltage Rating: |
115V AC |
Frequency: |
60 Hz |
Current Rating (Amps): |
2A |
Speed (RPM): |
~85 RPM unloaded |
Phase: |
Single Phase |
Quantity: |
2 (matched pair) |
Shaft Length: |
9 inches |
Thread Pitch: |
~3 TPI (double entry) |
Rod Diameter: |
0.656 in |
Motor Housing Dimensions: |
4.3 x 3.33 in |
Line Cord Length: |
102 in |
Controller Cord Length: |
95 in |
Rotation: |
Bi-directional (CW and CCW) |
Connection Type: |
White=Common, Red=CW, Black=CCW |
Application: |
Hospital Adjustable Bed (Head/Foot elevation) |
Controller Included: |
Yes — 2-button hand controller (Head/Foot Up/Down) |
Country/Region of Manufacture: |
United States (Ozark, MO) |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes pair of motors with threaded shafts, junction box, line cord, and hand controller |
Condition Notes: |
Fasco Type 64 hospital bed actuator motors (7164-0436), pair, tested working. Both motors run bi-directionally. Surface oxidation and age wear on housings. All cords included. Hand controller included. |
