Description
Fairchild SM220 Satellite Modem 981009-000 Rack Mount Cage w/ PS 2.2 Mbps
Rack-mounted satellite modem from Fairchild Data Corporation operating at 2.2 Mbps data rate. Includes integrated power supply and 70 MHz bandpass filter for satellite communications applications.
Specifications & What's Included
- Model: SM220 (MPN 981009-000)
- Data Rate: 2.2 Mbps
- IF Frequency: 70 MHz with internal BP filter
- Form Factor: Rack mount cage with internal power supply
- Power: 125 VAC, 60Hz

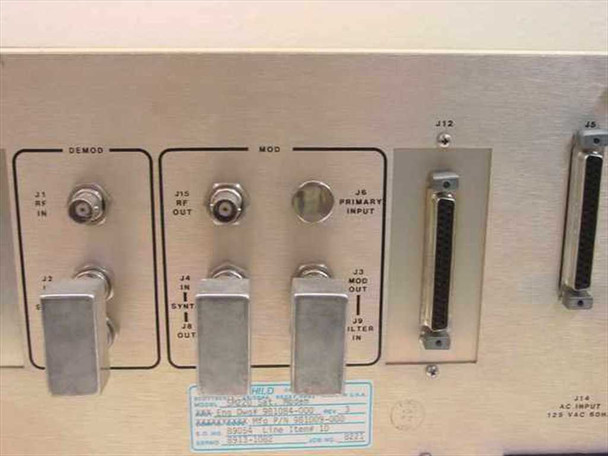

- Connectors: RF IN/OUT (BNC), IF, DB-25 primary input, modulator and demodulator sections
- Manufactured: United States
Applications
SM220 modems were used in satellite communication networks for remote data transmission and telecom backbone applications. These units typically operated in VSAT networks and earth station configurations requiring intermediate frequency processing at 70 MHz. Commonly integrated into larger satellite ground station systems and telecom racks.
Condition: Used

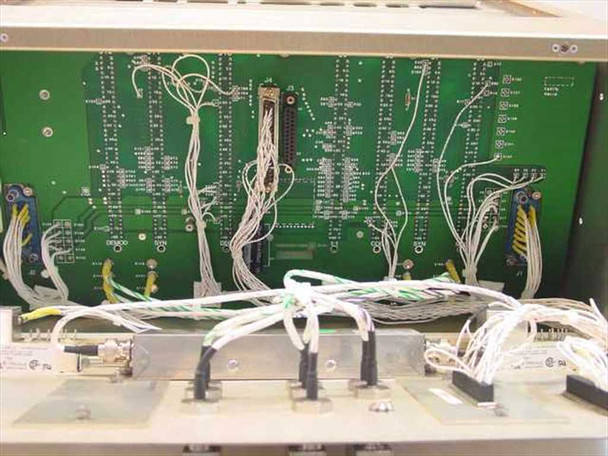

This Fairchild SM220 Satellite Modem (PN 981009-000) has been inspected and appears to be in good used condition. The rack mount chassis is intact with no significant damage. The front panel indicators, card cage, internal backplane wiring, and the 70 MHz bandpass filter module (Assy 01-CDC0140-X01) are all present and visually intact. The rear panel BNC connectors, primary input connector, and AC power inlet show normal wear consistent with prior service use. Some general surface scuffing is visible on the chassis. The unit is sold with the rack cage and internal power supply as shown in the photos. Please view our photo set and contact us if you have any questions.
This Fairchild SM220 Satellite Modem (PN 981009-000) has been inspected and appears to be in good used condition. The rack mount chassis is intact with no significant damage. The front panel indicators, card cage, internal backplane wiring, and the 70 MHz bandpass filter module (Assy 01-CDC0140-X01) are all present and visually intact. The rear panel BNC connectors, primary input connector, and AC power inlet show normal wear consistent with prior service use. Some general surface scuffing is visible on the chassis. The unit is sold with the rack cage and internal power supply as shown in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Fairchild Data Corporation |
Model: |
SM220 |
MPN: |
981009-000 |
Secondary Model: |
981084-000 |
Type: |
Rack Mount Satellite Modem |
SKU: |
31792 |
Data Rate: |
2.2 Mbps |
IF Frequency: |
70 MHz |
Form Factor: |
Rack Mount |
Power Requirements: |
125 VAC, 60Hz |
Includes: |
Rack mount cage with internal power supply |
Modulator Section: |
MOD — RF OUT (BNC), MOD OUT, FILTER IN connectors |
Demodulator Section: |
DEMOD — RF IN (BNC), IF connectors |
Primary Input Connector: |
J6 Primary Input (DB-25 style) |
Internal Filter: |
70 MHz BP Filter, Assy 01-CDC0140-X01 |
Condition: |
Used – Inspected and Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes rack mount cage with power supply; 70 MHz BP filter internal |

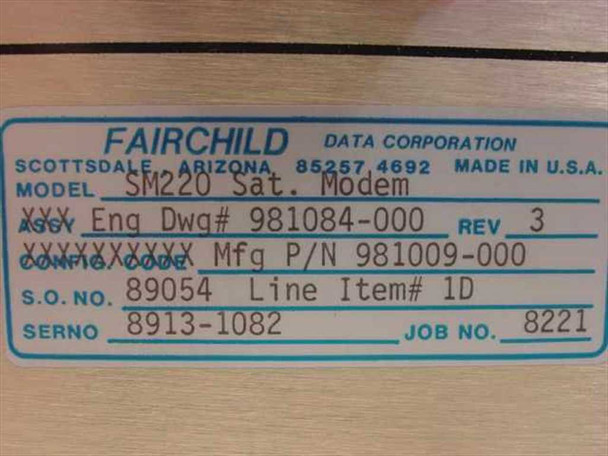

Assembly Drawing: |
Eng Dwg# 981084-000 Rev 3 |
Condition Notes: |
Fairchild SM220 Satellite Modem PN 981009-000 inspected and in good used condition. Rack cage and internal power supply included. Normal surface wear. Not bench-tested at our facility. Please contact us with questions. |
