Fairchild

Fairchild MMBT2222AR-R PNP SOT-23 Transistor R2T SMD 40V 0.5A Qty 10 TSOT23

(No reviews yet) Write a Review
SKU:
35122
MPN:
TSOT23-2222A
Condition:
New
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Fairchild MMBT2222AR-R SOT-23 PNP transistor – angled top view showing R2T marking on body
  • Fairchild MMBT2222AR-R SOT-23 transistor – clean side profile view showing three leads

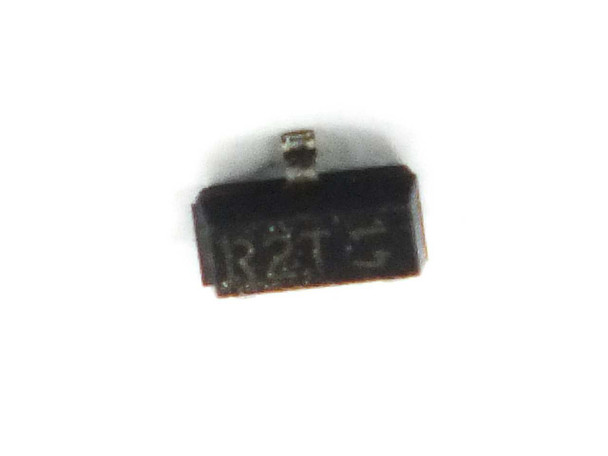

  • Fairchild MMBT2222AR-R SOT-23 transistor – top-down view with R2T marking clearly visible; handwritten C, B, E labels indicate Collector, Base, Emitter pin positions

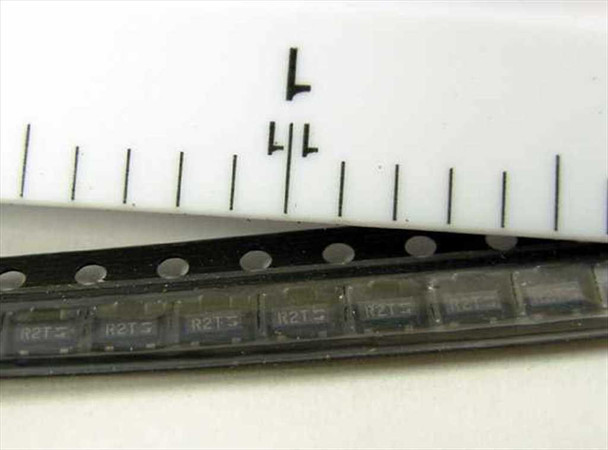

  • Strip of 10 Fairchild MMBT2222AR-R R2T SOT-23 transistors on tape shown next to ruler for scale

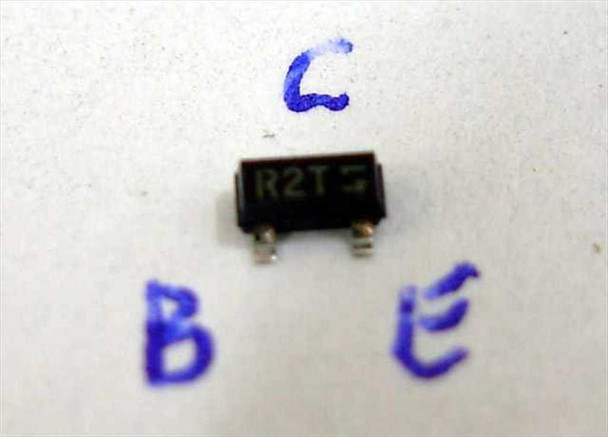

  • Single Fairchild MMBT2222AR-R R2T SOT-23 transistor on white surface with handwritten C (Collector), B (Base), E (Emitter) pin orientation labels
$3.00
Was: $6.00
Current Stock: 797

Sold Out

Description

Fairchild MMBT2222AR-R PNP SOT-23 Transistor R2T SMD 40V 0.5A Qty 10 TSOT23

PNP bipolar junction transistor in SOT-23 surface mount package. Used for switching and amplification in low-signal applications.

Specifications & What's Included

  • Type: PNP BJT
  • Package: SOT-23 (3-pin SMD)
  • Device marking: R2T
  • Max collector-emitter voltage: 40V
  • Max collector current: 0.5A
  • Complementary to 2N2222A / MMBT2222A (NPN)
  • Quantity: 10 pieces on tape
  • Manufacturer: Fairchild Semiconductor (Philippines)

Applications

Small-signal PNP transistors are standard components in audio amplifiers, switching circuits, and signal conditioning stages. The SOT-23 package dominates in compact consumer electronics, telecommunications equipment, and industrial control boards from the 1990s onward. Complementary to NPN devices for push-pull output stages and balanced amplifier designs.

Condition: New
These Fairchild MMBT2222AR-R PNP SOT-23 transistors are new old stock, sold as a pack of 10 pieces on tape. The components are unused and in new condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fairchild
Model:
MMBT2222AR-R
MPN:
MMBT2222AR-R
Secondary Model:
TSOT23-2222A
SKU:
35122
Type:
PNP Bipolar Junction Transistor (BJT)
Package / Case:
SOT-23 (3-pin SMD)
Transistor Polarity:
PNP
Device Marking:
R2T
Voltage - Collector Emitter Breakdown (Max):
~40V
Current - Collector (Ic) (Max):
~0.5A
Mounting Type:
Surface Mount (SMD/SMT)
Quantity:
10 pieces (on tape)
Complementary Device:
2N2222A / MMBT2222A (NPN)
Pin Configuration:
Base lower-left, Emitter right, Collector top (R2T up)
Seller Notes:
Sold as a pack of 10 on tape. New old stock.
Country/Region of Manufacture:
Philippines
Form Factor:
SMD / Surface Mount
Condition Notes:
Fairchild MMBT2222AR-R PNP SOT-23 transistors, new old stock, pack of 10 on tape. Unused, new condition. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

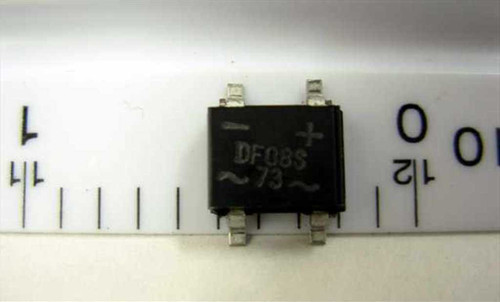

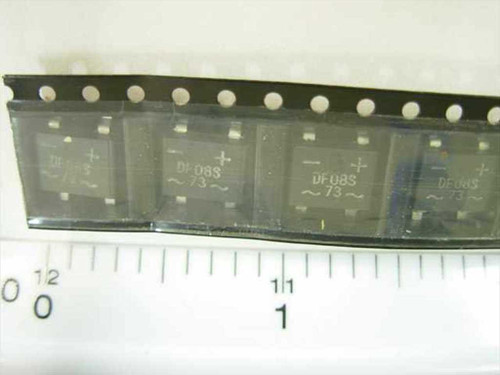

ON Semiconductor DF08S SMD bridge rectifier single unit next to ruler showing approximately 5mm body width ON Semiconductor DF08S bridge rectifiers on tape strip showing four units with markings DF08S and date code 73
