ESA 5600A CoulArray Detector Organizer w/ Manuals & Conditioning Cell 5021

(No reviews yet) Write a Review
SKU:
44383
MPN:
5600A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
35.00 LBS
Shipping:
Calculated at Checkout

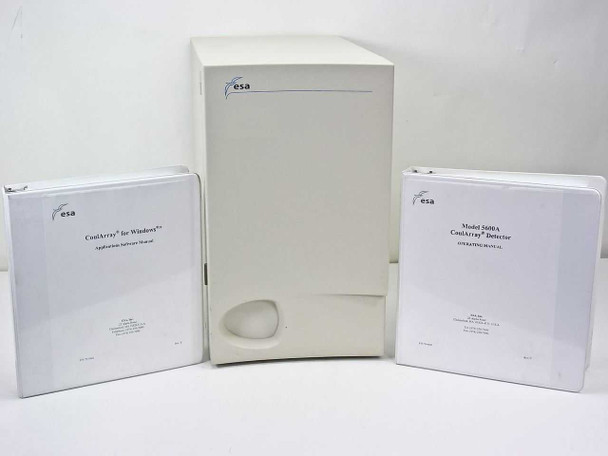

  • ESA 5600A CoulArray Detector Organizer front view with two white binder manuals flanking the unit

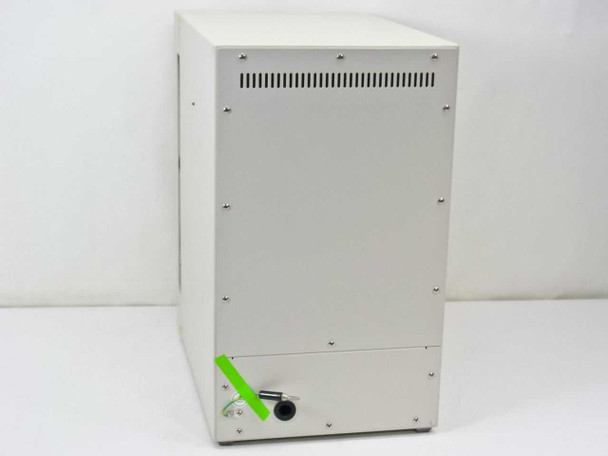

  • ESA 5600A CoulArray Detector rear panel showing power inlet and switch
  • Interior left compartment of ESA 5600A with internal components visible and green arrows indicating missing/present parts

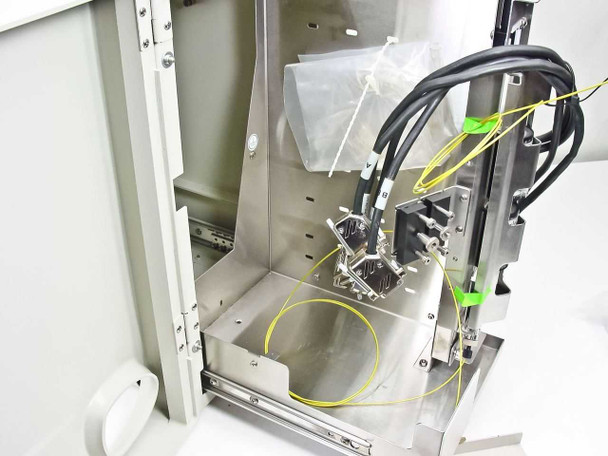

  • ESA 5600A CoulArray Detector interior showing internal plumbing connections, cables, and stainless steel chassis with yellow tubing

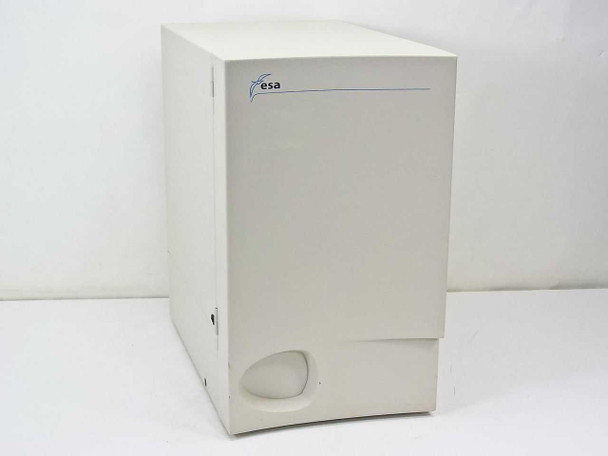

  • ESA 5600A CoulArray Detector front exterior view showing ESA logo and cabinet door

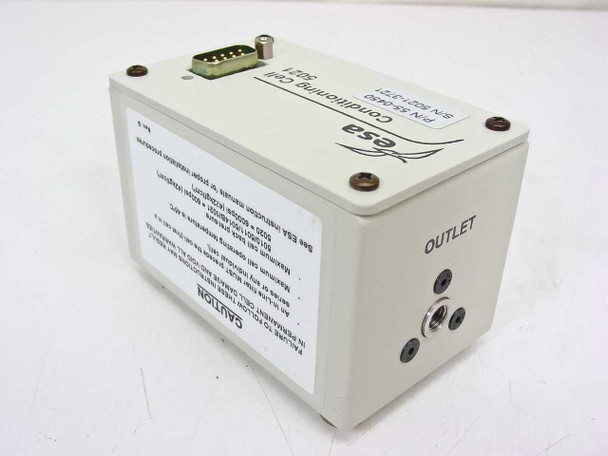

  • ESA Conditioning Cell 5021 side view showing DB-15 connector and outlet ports with caution label

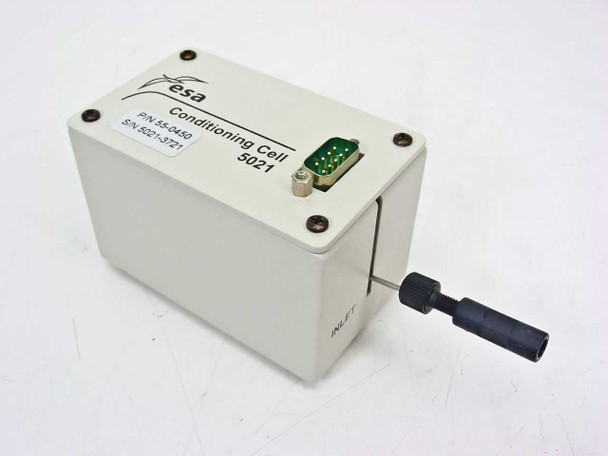

  • ESA Conditioning Cell 5021 front view showing inlet port and ESA branding with P/N 55-0450 and S/N 5021-3721 label
  • ESA Conditioning Cell 5021 rear panel showing DB-15 connector and P/N 55-0450 S/N 5021-3721 label
  • Group of included accessories: Conditioning Cell 5021, 2 power cords, ground cable, 70-1790 Rev C resistor, screwdriver, and miscellaneous parts
  • ESA 70-1790 Rev C 10M Ohms DB-15 resistor adapter close-up
  • Green/yellow ground cable included with ESA 5600A CoulArray Detector
  • Rear lower panel of ESA 5600A showing power switch and port with green tape marker

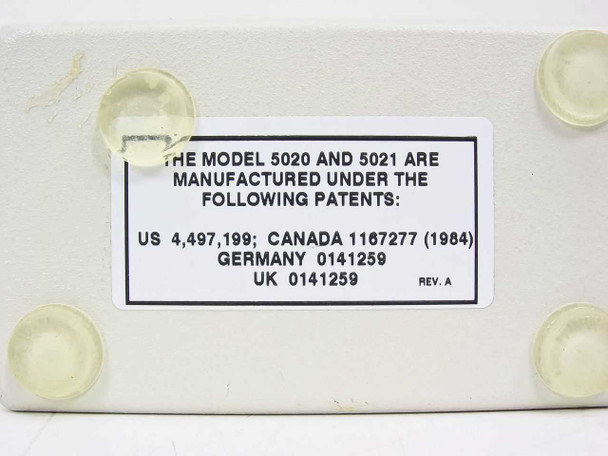

  • Bottom label on ESA Conditioning Cell 5021 showing patent information for Models 5020 and 5021
  • ESA logo close-up on front panel of the 5600A CoulArray Detector cabinet

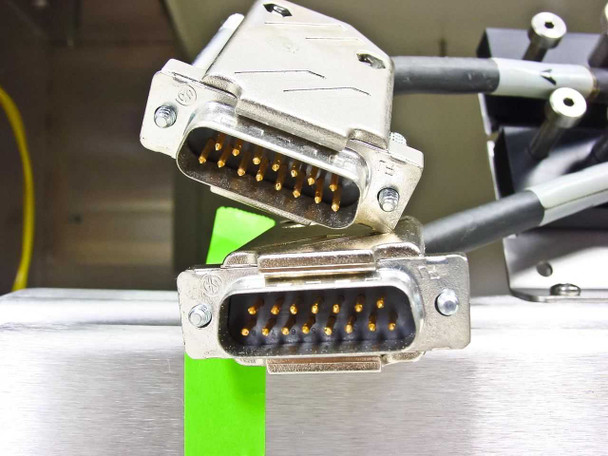

  • Close-up of two DB-15 male connectors inside ESA 5600A CoulArray Detector internal harness

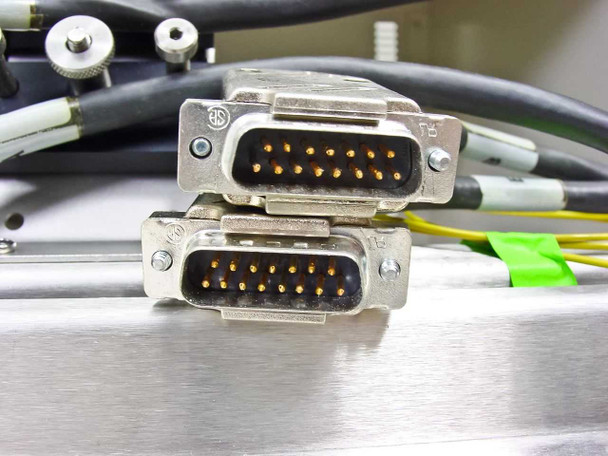

  • Close-up of two DB-15 connectors from alternate angle inside ESA 5600A CoulArray internal cabling
  • Multiple DB-15 connectors on internal mounting bracket inside ESA 5600A CoulArray Detector

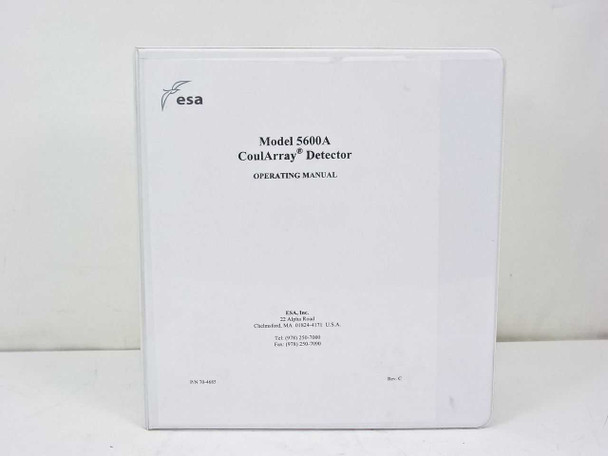

  • ESA Model 5600A CoulArray Detector Operating Manual cover in white binder showing P/N 70-4445 Rev G
  • ESA CoulArray for Windows 32 Applications Software Manual cover in white binder
  • Table of contents page from ESA Model 5600A CoulArray Detector Operating Manual showing chapters on setup, fluidics, and electrical connections
  • ESA 5600A Coul Array Organizer with Manuals and ESA Conditioning Cell - As Is
  • ESA 5600A Coul Array Organizer with Manuals and ESA Conditioning Cell - As Is
  • ESA 5600A Coul Array Organizer with Manuals and ESA Conditioning Cell - As Is
  • ESA 5600A Coul Array Organizer with Manuals and ESA Conditioning Cell - As Is
$446.00
Was: $900.00
Current Stock: 1

Sold Out

Description

ESA 5600A CoulArray Detector Organizer w/ Manuals & Conditioning Cell 5021

ESA 5600A CoulArray coulometric detector for HPLC systems. Multi-electrode array detection organizer with integrated conditioning cell and supporting documentation.

Specifications & What's Included

  • Model: ESA 5600A CoulArray Detector
  • Conditioning Cell: Model 5021 (P/N 55-0450, S/N 5021-3721)
  • Interface: RS-232, DB-15 D-sub connectors
  • Included: 2 manuals (Operating Manual 70-4445 Rev G, CoulArray for Windows 32 manual), Conditioning Cell 5021, 2 power cords, 70-1790 Rev C 10M ohm resistor, screwdriver, tubing
  • Benchtop/floor-standing cabinet form factor

Applications

The CoulArray detector system is used for coulometric electrochemical analysis in HPLC workflows. It integrates with standard HPLC platforms for multi-electrode array detection of analytes. Commonly deployed in pharmaceutical, environmental, and chemical analysis labs for detection and quantification in liquid chromatography separations.

Condition: For Parts or Not Working
This ESA 5600A CoulArray Detector Organizer is being sold AS-IS for parts or repair. We cannot test it, and we have confirmed that several components required for complete operation are missing: the Pulse Damper, Gradient Mixer, Column Bracket, Mixer, Temperature Probe, Column, Manual Injector, and 2 Analytical Cells. There may be additional components missing beyond those listed. What is present includes the main cabinet unit, the ESA Conditioning Cell 5021 (P/N 55-0450), 2 power cords, the ESA 70-1790 Rev. C 10M ohm resistor adapter, a Phillips screwdriver, plastic tubing, and both the Model 5600A CoulArray Detector Operating Manual and the CoulArray for Windows 32 Applications Software Manual. No software is included. Please review all photos carefully before purchasing. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ESA
Model:
5600A
MPN:
5600A
Secondary Model:
Conditioning Cell 5021
Type:
CoulArray Coulometric Detector / HPLC Detector Organizer
SKU:
44383
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes 2 manuals, Conditioning Cell 5021 (P/N 55-0450), 2 power cords, 70-1790 Rev C 10M ohm resistor, screwdriver, tubing; key fluidics parts missing
Application / Use Case:
HPLC multi-electrode coulometric array detection
Included Accessories:
2x manuals, Conditioning Cell 5021, 2x power cords, 70-1790 Rev C, screwdriver
Missing Components:
Pulse Damper, Gradient Mixer, Column Bracket, Mixer, Temp Probe, Column, Injector, 2 Cells
Conditioning Cell Model:
ESA Conditioning Cell 5021
Conditioning Cell P/N:
55-0450
Conditioning Cell S/N:
5021-3721
Resistor P/N:
70-1790 Rev. C, 10M Ohms
Connector Type:
DB-15 (D-sub 15-pin)
Interface:
RS-232, D-sub I/O connectors
Software:
No software included (CoulArray for Windows 32 manual included)
Country/Region of Manufacture:
United States
Form Factor:
Benchtop / Floor-Standing Cabinet
Compatible With:
HPLC systems; ESA CoulArray multi-electrode detection platform
Manual 1:
ESA Model 5600A CoulArray Detector Operating Manual (P/N 70-4445 Rev G)
Manual 2:
CoulArray for Windows 32 Applications Software Manual
Condition Notes:
ESA 5600A CoulArray Detector sold AS-IS, for parts/repair. Cannot be tested. Missing: Pulse Damper, Gradient Mixer, Column Bracket, Mixer, Temp Probe, Column, Injector, 2 Cells. Includes manuals, Conditioning Cell 5021, power cords, accessories.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
