Beckman Coulter

Beckman Coulter Delsa 440SX Laser Particle Size Analyzer LDV w/Remote Power

(No reviews yet) Write a Review
SKU:
42461
MPN:
Delsa 440SX
Condition:
Used
Availability:
This item ships via freight service — please contact us for shipping details and to arrange delivery.
Weight:
160.00 LBS
Shipping:
Calculated at Checkout

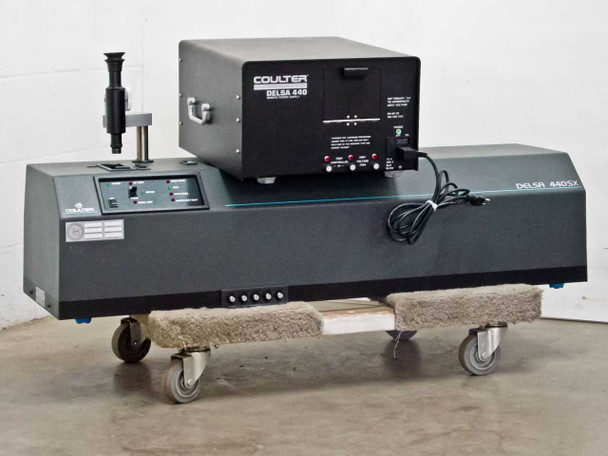

  • Beckman Coulter Delsa 440SX laser particle size analyzer front-left view with Coulter Delsa 440 remote power supply on top, mounted on wheeled dolly
  • Beckman Coulter Delsa 440SX rear view showing bundled cables, power supply on top, and optical assembly at right on wheeled dolly
  • Beckman Coulter Delsa 440SX rating plate showing model DELSA 440SX, assembly number 5605221, serial number AD 14005, 50/60 Hz, manufactured by Beckman Coulter Inc. Miami FL
  • Beckman Coulter Delsa 440SX front panel indicator array showing Power, Up Limit, Down Limit, Motor, Door Open, Cell, Heat/Cool, and Hardware Fault LED indicators with Up/Down toggle and Set switch
  • Delsa 440SX top surface showing Cell Position opening with laser warning label and Beam Intersection aperture
  • Delsa 440SX optical arm assembly with Unitron objective/eyepiece tube mounted on aluminum bracket and post
  • Close-up of Unitron 2x eyepiece attached to the Delsa 440SX optical assembly
  • Interior view of the Delsa 440SX optical tube showing 15x lens element
  • Delsa 440SX Beam Intensity slider control on front panel
  • Coulter Delsa 440 Remote Power Supply front panel showing Temp Controller and High Voltage fuse/indicator section, DC Volts analog meter, power switch, and 100–240 VAC 50–60 Hz input label
  • Close-up of Coulter Delsa 440 power supply fuse panel showing Temp Controller 10A and High Voltage 0.125A fuses with red indicator lamps
  • Coulter Delsa 440 Remote Power Supply with hinged access panel open revealing DC Volts analog meter and internal label
  • Beam stop row on Delsa 440SX showing five knobs labeled Main, 7.5°, 15°, 22.5°, and 30° Beam Stops
  • Standard NEMA 5-15P three-prong power cord plug from the Coulter Delsa 440 power supply
  • Coulter Delsa 440 Remote Power Supply rear panel with dual ventilation grilles and multi-tap voltage selector board (100–240V) with wiring harness
  • Coulter Delsa 440SX SPLY rating plate showing model DELSA 440SX SPLY, assembly 6605221, serial AD 14005, 115V, 720W, 50/60 Hz, Beckman Coulter Inc. Miami FL; voltage tap holes labeled 240 220 210 200 120 115 110 100
  • Close-up of red multi-pin interconnect connector from the cable harness between the Delsa 440SX main unit and remote power supply
  • Close-up of blue Centronics-style ribbon cable connector from the Delsa 440SX cable bundle
  • Delsa 440SX rear panel showing four BNC AGC OUT connectors (P4 7.5°, P5 15°, P6 22.5°, P7 30°), Class 1 Laser Product label, and partial rating plate with assembly number 6605221
  • Delsa 440SX rear panel lower section showing P1 Computer DB-25 connector and P2 Remote Supply multi-pin connector
  • Beckman Coulter Delsa 440SX Laser Particle Measuring Unit w/Remote Power
  • Beckman Coulter Delsa 440SX Laser Particle Measuring Unit w/Remote Power
  • Beckman Coulter Delsa 440SX Laser Particle Measuring Unit w/Remote Power
$900.00
Was: $1,800.00
Current Stock: 1

Sold Out

Description

Beckman Coulter Delsa 440SX Laser Particle Size Analyzer LDV w/Remote Power Supply

Benchtop laser Doppler velocimetry (LDV) instrument for measuring particle size distribution and electrophoretic mobility. Performs simultaneous multi-angle analysis using a Class 1 laser system.

Specifications & What's Included

  • Particle size range: 10 nm – 30 µm
  • Electrophoretic mobility range: 0 – 10 cm/V·sec
  • Five beam stop angles: 7.5°, 15°, 22.5°, 30°, plus main
  • Remote power supply: 115V, 720W output; 100–240 VAC input (50/60 Hz selectable)
  • Interfaces: DB-25 computer connection, 4 BNC AGC output ports
  • Includes Coulter Delsa 440 remote power supply; software not included

Applications

The Delsa 440SX was used in pharmaceutical, chemical, and materials research for characterizing latex dispersions, liposomes, emulsions, pigments, polymers, proteins, and bacterial suspensions. This analyzer type supported quality control workflows and formulation development across industrial and academic laboratories.

Condition: For Parts or Not Working
This Beckman Coulter Delsa 440SX Laser Particle Size Analyzer is being sold AS-IS for parts or repair. We were unable to test it, so no functionality is guaranteed. The unit includes the Coulter Delsa 440 Remote Power Supply but does not include the software required for operation — this is hardware only. The main instrument and power supply show typical wear consistent with lab use; the cabinet surfaces are intact with no major damage visible. Cabling, the optical arm assembly with Unitron eyepiece, and the interconnect harness are present. Ships via freight. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Beckman Coulter
Model:
Delsa 440SX
MPN:
Delsa 440SX
Secondary Model:
Delsa 440 Remote Power Supply
Assembly Number:
6605221
Type:
Laser Particle Size & Electrophoretic Mobility Analyzer
SKU:
42461
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes Coulter Delsa 440 remote power supply; no software included
Country/Region of Manufacture:
United States
Measurement Technique:
Laser Doppler Velocimetry (LDV)
Measurement Type:
Particle Size and Electrophoretic Mobility
Particle Size Range:
10 nm – 30 µm
Mobility Range:
0 – 10 cm/V·sec
Analysis Method:
Simultaneous multi-angle analysis
Laser Classification:
Class 1 Laser Product
Beam Stop Angles:
Main, 7.5°, 15°, 22.5°, 30°
AGC Output Channels:
4 BNC AGC OUT ports (P4, P5, P6, P7)
Computer Interface:
DB-25 (P1 Computer), Remote Supply connector (P2)
Power Supply Input Voltage:
100–240 VAC, 50/60 Hz (selectable tap)
Power Supply Output:
115V, 720W, 50/60 Hz
Power Supply Fuses:
Temp Controller: 10A; High Voltage: 0.125A
Main Unit Power:
50/60 Hz; Volts N/A on rating plate
Form Factor:
Benchtop / Large Floor-Standing Instrument
Optical Component:
Unitron 2x eyepiece / objective assembly
Compatible Sample Types:
Latex, Liposomes, Emulsions, Pigments, Polymers, Proteins, Bacteria
Software Required:
Yes — software not included
Shipping Method:
Freight required
Condition Notes:
Beckman Coulter Delsa 440SX Laser Particle Analyzer sold AS-IS for parts or repair. Unable to test — no functionality guaranteed. Includes Coulter Delsa 440 remote power supply; software not included. Freight shipment only.
