The Ertel-Werke 637 is a Normal-Repetitions-Theodolith I — a double-circle repeating theodolite manufactured by Ertel-Werke A.G. of Munich, Germany. Repeating theodolites of this class allowed surveyors to accumulate multiple angle measurements on the horizontal circle and divide by the number of repetitions, achieving angular accuracy far beyond what a single reading could provide. This instrument carries serial number 32697 and is offered complete with its original wooden carrying case, surveying compass, and a full set of accessories.

Specifications & What's Included

• Instrument type: Normal-Repetitions-Theodolith I (Catalog Nr. 637)
• Serial number: 32697 (engraved on base plate)
• Manufacturer: Ertel-Werke A.G., Barthstrasse 8, München, Germany
• Telescope: Internal-focusing (Innen-Fokusier) design
• Objective aperture: 23 mm
• Objective focal length: 190 mm
• Telescope magnification: 18×
• Stadia constant K: 120 (fixed stadia wires)
• Horizontal circle limbus diameter: 120 mm
• Horizontal circle graduation: 1/3° (20-minute divisions)
• Horizontal circle vernier reading: 30 arcseconds
• Vertical circle limbus diameter: 100 mm
• Vertical circle graduation: 1/3°
• Vertical circle vernier reading: 30 arcseconds
• Level sensitivity – horizontal circle alidade: 40 arcseconds per division
• Level sensitivity – telescope carrier: 40 arcseconds per division
• Level sensitivity – vertical circle alidade: 25 arcseconds per division
• Reversion level (telescope): 20 arcseconds per division

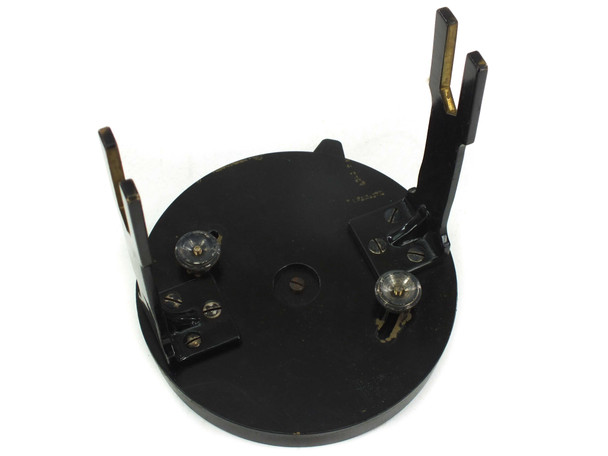

• Tribrach base with three leveling footscrews

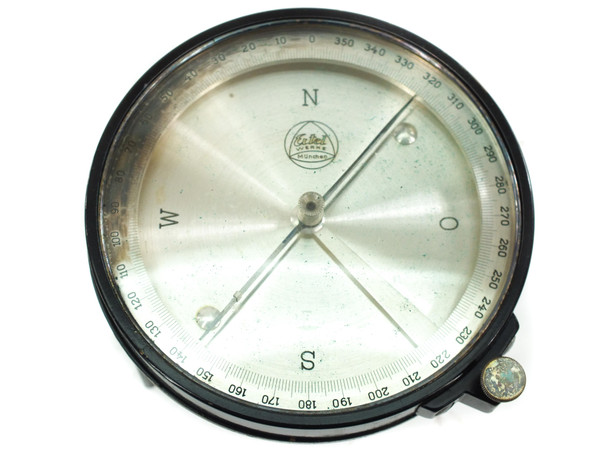

• Includes: detachable surveying compass (full 360° card, N/S/E/W, degree scale)
• Includes: striding level with tubular vial
• Includes: plumb bob with copper suspension cord
• Includes: adjustment screwdriver, adjustment pins, and case keys
• Includes: original dovetailed hardwood carrying case with brass hardware and carrying handle

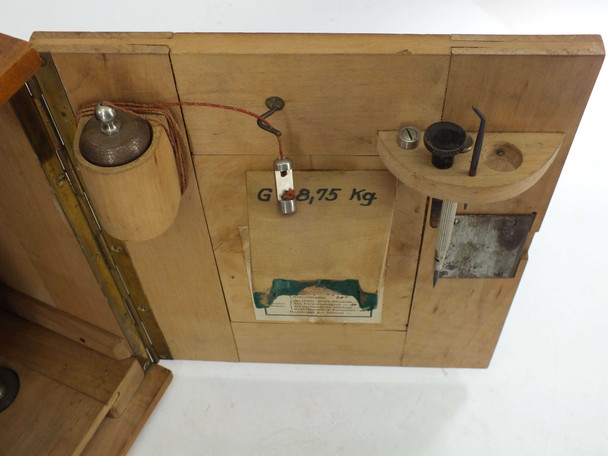

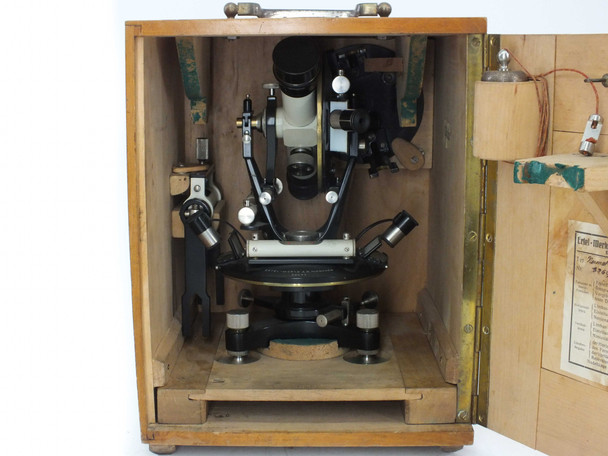

• Case interior: original Ertel-Werke specification label, accessory door holders, and instrument base board

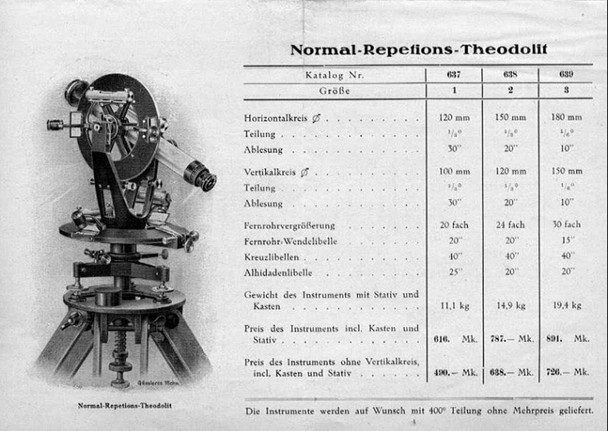

• Original catalog weight for this model with case: 11.1 kg (per manufacturer's original catalog sheet, visible in photos)

Applications

Repeating theodolites like the Ertel-Werke 637 were the standard precision angle-measuring instruments of land surveying, geodesy, and civil engineering from the late 19th century through the mid-20th century. The repeating (Repetitions) design was favored for triangulation surveys, boundary determination, and topographic mapping because it allowed accumulated angle readings — the surveyor would rotate the alidade multiple times around the circle, reading the accumulated arc and dividing, effectively multiplying precision without requiring finer graduation. Ertel-Werke A.G. of Munich was one of the leading German optical and precision instrument manufacturers of the era, producing theodolites, sextants, and astronomical instruments to a high standard; their instruments were used across Europe and exported worldwide. This class of instrument dates from the early-to-mid 20th century — the construction style, internal-focusing telescope, and circle-and-vernier reading system are characteristic of pre-WWII German precision manufacture. Today, instruments like this are sought by survey instrument collectors, museums, scientific instrument historians, and engineering schools as examples of classical geodetic craftsmanship. The compass attachment would have been used for magnetic azimuth orientation in the field, allowing the surveyor to establish a reference bearing before beginning angle traverses.
