Kern

Kern E20 Electronic Sub-Second Theodolite Survey Instrument w/ Case No PSU

(No reviews yet) Write a Review
SKU:
52792
MPN:
E20
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
29.00 LBS
Shipping:
Calculated at Checkout
  • Kern E20 Electronic Sub-Second Theodolite shown beside original orange hard carrying case — three-quarter view

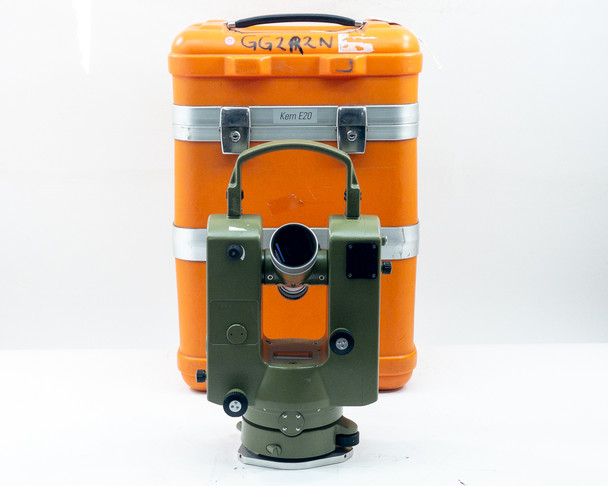

  • Kern E20 Theodolite front view showing telescope objective lens, with orange Kern-labeled hard case behind

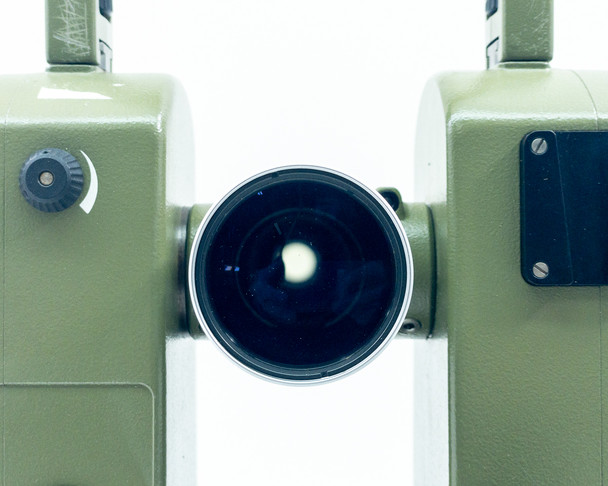

  • Kern E20 Theodolite close-up of telescope objective lens assembly — large front element visible

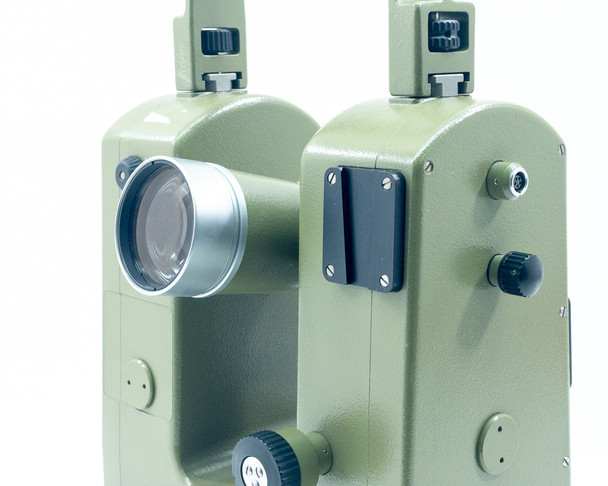

  • Kern E20 Theodolite upper right side view showing telescope eyepiece, knobs, and 6-pin power connector port

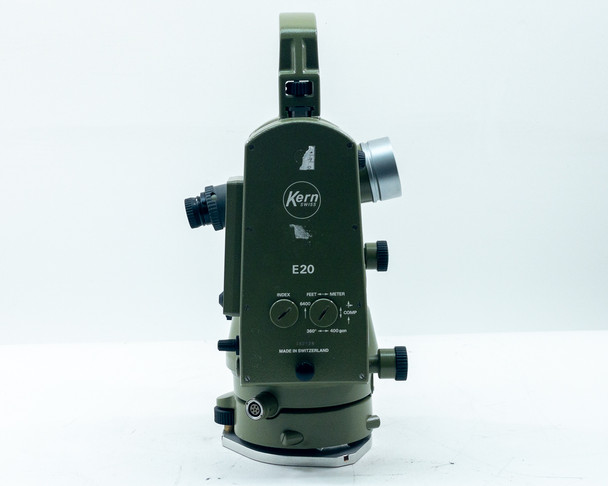

  • Kern E20 Theodolite right-side panel showing model designation 'E20' and control panel with INDEX and FEET/METER dials — Made in Switzerland label visible

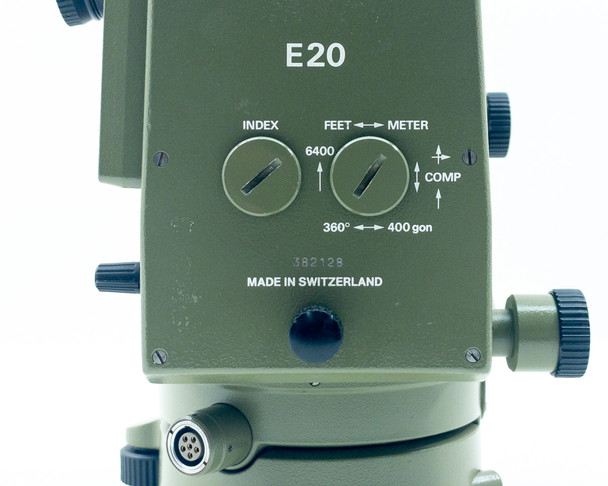

  • Kern E20 Theodolite front control panel close-up: INDEX dial, FEET/METER dial, 360°/400 gon/6400 mil markings, COMP indicator, serial number 382128, Made in Switzerland

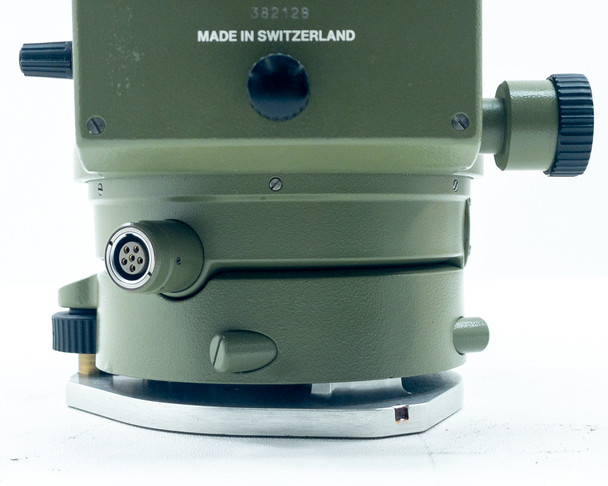

  • Kern E20 Theodolite base section showing 6-pin circular power connector port and tribrach/leveling base — rear angle

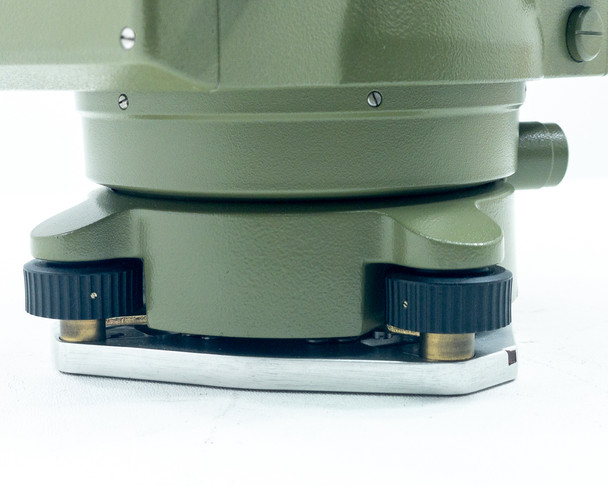

  • Kern E20 Theodolite lower base close-up showing three leveling footscrews with black knobs and brass contact points on aluminum base plate

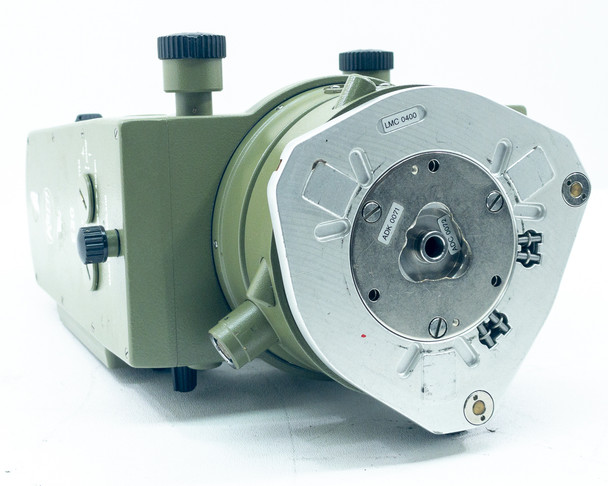

  • Kern E20 Theodolite underside / tribrach interface view showing circular leveling base, label 'LMC 0400', and alignment slots

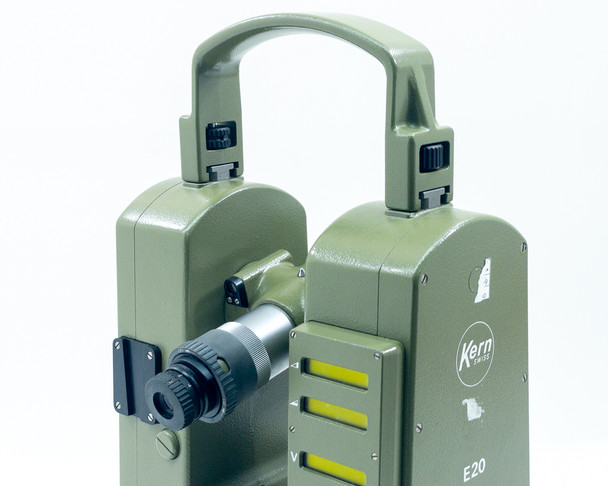

  • Kern E20 Theodolite top view showing carrying handle and telescope eyepiece with vertical/horizontal illuminated scale windows (yellow strips)

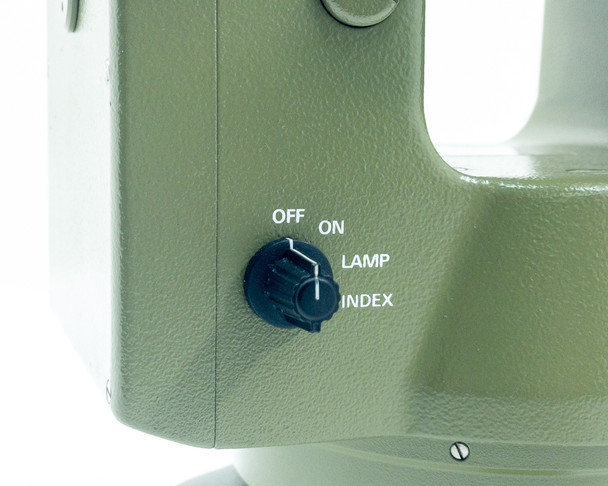

  • Kern E20 Theodolite side panel close-up showing power switch with OFF/ON/LAMP/INDEX positions
  • Kern E20 Theodolite left-side view showing telescope eyepiece with knurled focus ring and illuminated V/H scale display windows

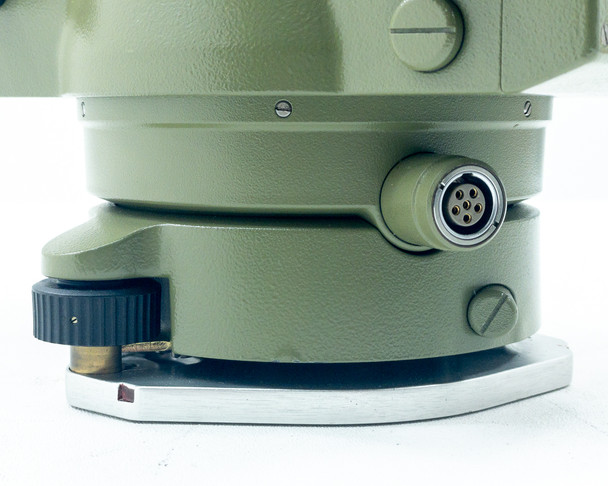

  • Kern E20 Theodolite lower base and 6-pin power connector close-up showing leveling tangent screw and tribrach plate

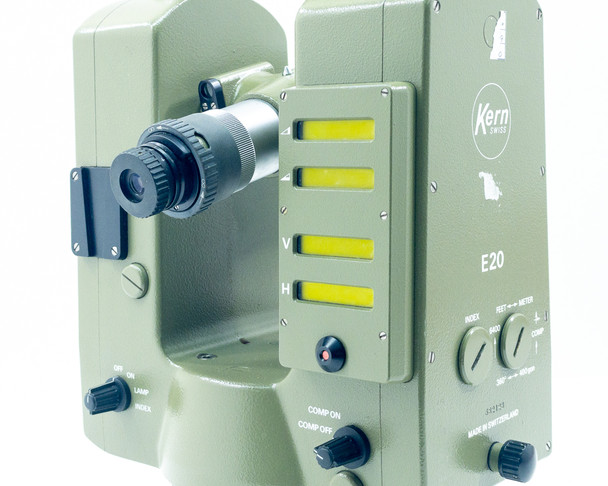

  • Kern E20 Theodolite three-quarter view showing illuminated vertical (V) and horizontal (H) yellow scale windows, COMP ON/COMP OFF controls, eyepiece, and front panel

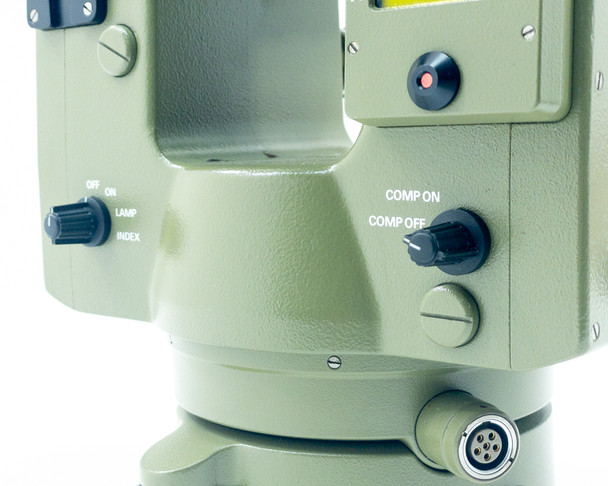

  • Kern E20 Theodolite side showing COMP ON / COMP OFF switch knob, power indicator LED, OFF/ON/LAMP/INDEX switch, and 6-pin power port at base

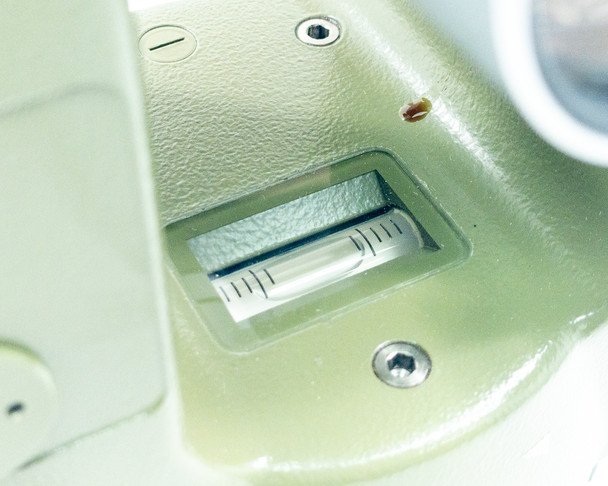

  • Kern E20 Theodolite close-up of level vial (plate bubble) recessed into instrument body
$800.00
Was: $1,600.00
Current Stock: 2

Sold Out

Description

Kern E20 Electronic Sub-Second Theodolite Survey Instrument w/ Case No PSU

Swiss-made electronic theodolite for precision angle measurement in surveying and optical alignment work. Measures horizontal and vertical angles with sub-second accuracy across multiple unit systems.

Specifications & What's Included

  • Angular accuracy: Sub-second resolution
  • Circle graduation: 360°, 400 gon, 6400 mil selectable
  • Display units: Feet or meter selectable
  • Aluminum cast U-frame construction
  • Solid-state electronics, no internal RAM or batteries
  • Controls: INDEX dial, COMP ON/OFF switch, LAMP/INDEX switch, leveling knobs
  • Mounting: Standard tribrach / tripod-mounted
  • Original orange hard carrying case with aluminum latches included

Applications

Theodolites of this type are used in land surveying, construction layout, geodetic work, and optical alignment applications. The Kern E20 integrates electronic readout with traditional optical theodolite design, compatible with standard surveying tripods and tribrachs. Historically used where sub-second angle measurement was required without modern total station systems.

Condition: Used
The Kern E20 Electronic Sub-Second Theodolite is a precision survey instrument in used condition. The olive-green painted body is intact with light handling marks consistent with field use, the telescope optics are clean and clear, and all leveling footscrews and control knobs operate freely. The illuminated scale windows are present and functional. The original orange hard carrying case with aluminum latches is included in serviceable condition with normal surface wear. This unit is ready for professional surveying applications.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Kern
Model:
E20
MPN:
E20
Type:
Electronic Theodolite
SKU:
52792
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes original hard carrying case. Missing 6-pin power supply. Sold as-is.
Country/Region of Manufacture:
Switzerland
Measurement Type:
Horizontal and Vertical Angle
Angular Accuracy:
Sub-Second
Circle Graduation:
360° / 400 gon / 6400 mil
Display Units:
Feet / Meter selectable
Frame Construction:
Aluminum Cast U-Frame
Design Type:
Solid-State, No Internal RAM or Batteries
Power Connector:
6-Pin Round Connector
Power Supply Included:
No — power supply missing
Controls:
INDEX dial, COMP ON/OFF switch, LAMP/INDEX switch, leveling knobs
Carrying Case:
Original orange hard case with aluminum latches included
Form Factor:
Benchtop / Tripod-Mounted
Application:
Precision Surveying, Optical Alignment, Geodesy
Compatible With:
Standard tribrach / theodolite trivet mount
Condition Notes:
Kern E20 Electronic Sub-Second Theodolite in used condition. Body intact with light handling marks, optics clean, all controls functional. Includes original hard case with minor wear.
