Ericsson PKJ 4111 API BMR 630 01/3 R1B DC/DC Power Module 5V 30A 36-72V In

Ericsson PKJ 4111 API BMR 630 01/3 R1B DC/DC Power Module 5V 30A 36-72V In

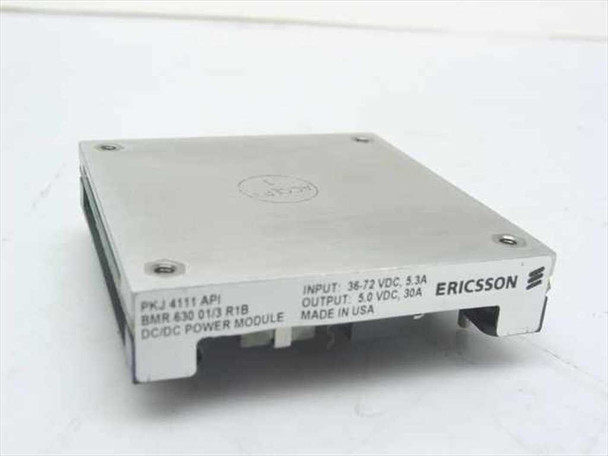

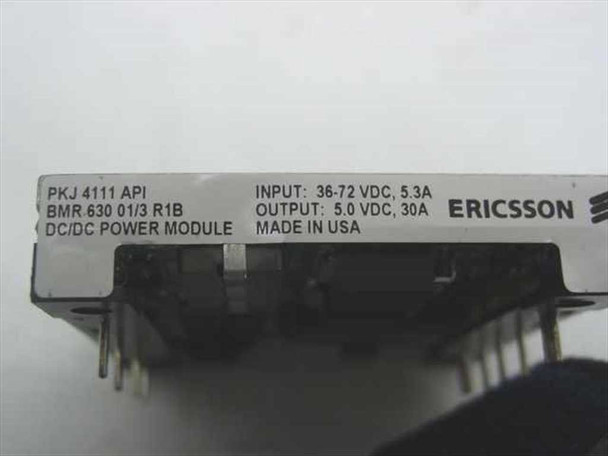

The Ericsson PKJ 4111 API is an isolated DC/DC power module in the industry-standard half-brick form factor. It accepts a wide-range 36–72 VDC input and delivers a regulated 5.0 VDC output at up to 30A (150W). The secondary part number on the label reads BMR 630 01/3 R1B. The unit is made in the USA.

Specifications & What's Included

• Model: PKJ 4111 API
• Secondary P/N: BMR 630 01/3 R1B
• Type: Isolated DC/DC Power Module
• Form Factor: Half-Brick
• Input Voltage: 36–72 VDC
• Input Current: 5.3A
• Output Voltage: 5.0 VDC
• Output Current: 30A
• Output Power: 150W
• Country of Manufacture: USA (per label)
• Module only — no additional accessories included

Applications

The Ericsson PKJ series are isolated half-brick DC/DC converter modules designed for use in distributed power architectures where a regulated intermediate bus voltage (typically 48V telecom bus) must be stepped down to a lower logic or processor supply rail. These modules are common in telecommunications equipment, networking hardware, industrial control systems, and embedded computing platforms where board-level power conversion is required. The half-brick format is an industry-standard package that mounts directly to a PCB via through-hole pins, making the PKJ 4111 API a drop-in solution for OEM designs and equipment service replacements requiring a 5V regulated output from a 36–72V DC source.
