Entrelec

Entrelec GMB 20L 2-Pole Circuit Breaker 20A 240VAC Time Delay 10194327

(No reviews yet) Write a Review
SKU:
31086
MPN:
10194327
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

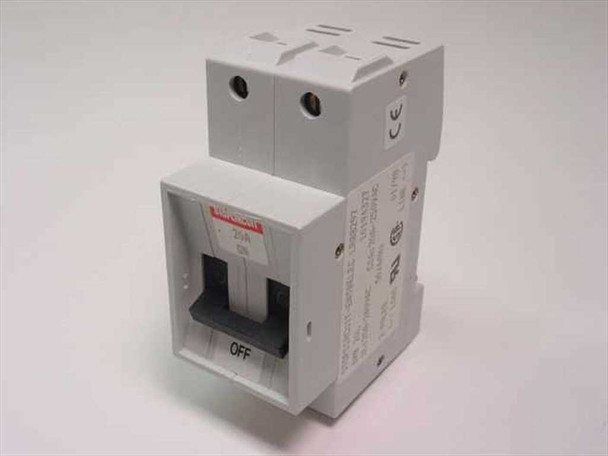

  • Entrelec GMB 20L 2-pole circuit breaker front view showing toggle switch in OFF position and red Entrelec label

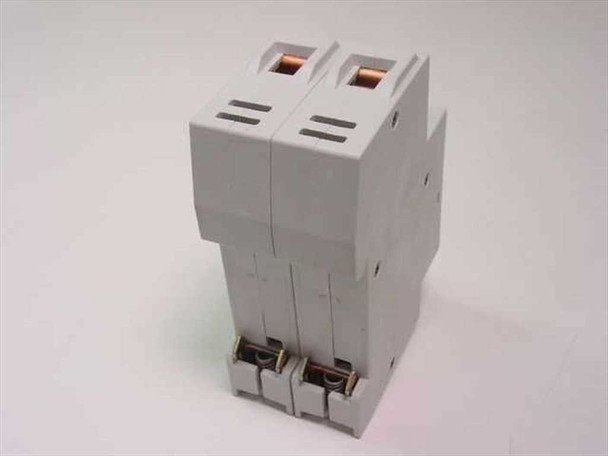

  • Entrelec GMB 20L circuit breaker rear view showing DIN rail mounting clip and dual copper terminal connections

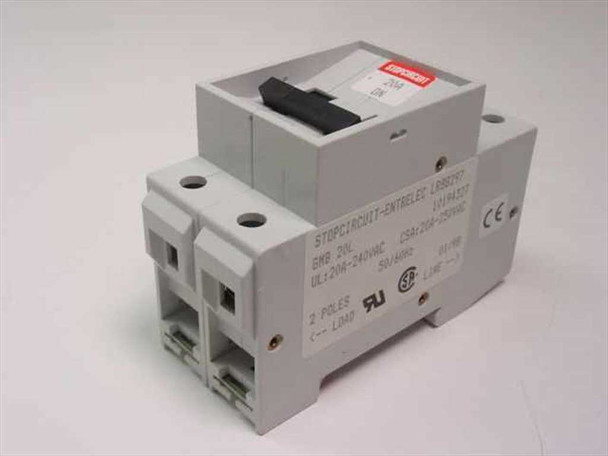

  • Entrelec GMB 20L circuit breaker side label view showing STOPCIRCUIT-ENTRELEC, GMB 20L, UL 20A-240VAC, CSA 20A-250VAC, 50/60Hz, 2 poles

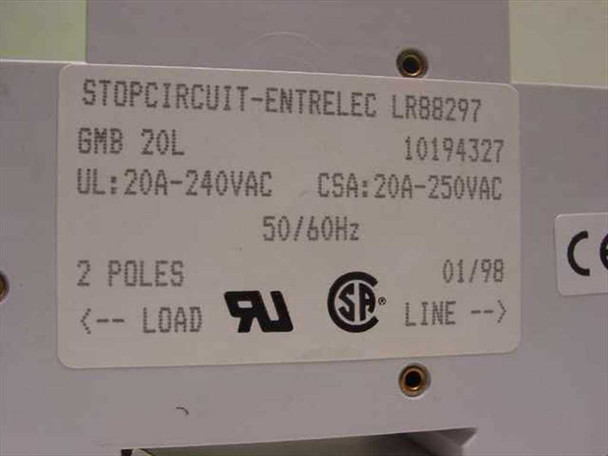

  • Entrelec GMB 20L rating plate close-up showing part number 10194327, LR88297, UL and CSA certifications, manufacture date 01/98, and load/line terminal markings
$20.00
Was: $40.00
Current Stock: 7

Sold Out

Description

Entrelec GMB 20L 2-Pole Circuit Breaker 20A 240VAC Time Delay 10194327

Miniature circuit breaker (MCB) with 2-pole configuration and 20A amperage rating. Provides overload and short-circuit protection in electrical distribution systems with time-delay trip mechanism for selective coordination.

Specifications & What's Included

  • Model: GMB 20L | MPN: 10194327
  • Poles: 2 | Amperage: 20A
  • Voltage: 240VAC (UL) / 250VAC (CSA)
  • Frequency: 50/60Hz
  • Trip Mechanism: Time Delay
  • Mounting: DIN Rail
  • Certifications: UL Listed, CSA Certified
  • Manufactured: France, January 1998
  • Unit only; no accessories included

Applications

The GMB series is used in industrial control panels, telecommunications equipment, and general distribution boards operating on single-phase 240VAC systems. Time-delay breakers accommodate inrush currents from motors and transformers while maintaining protection against sustained faults. Commonly installed in legacy European and North American industrial installations where DIN rail mounting is standard.

Condition: Used
This Entrelec GMB 20L 2-pole 20A 240VAC time delay circuit breaker has been inspected and is in good used condition. The housing is clean with no cracks, chips, or broken mounting tabs visible. The toggle switch operates freely and the DIN rail clip appears intact. The rating label is fully legible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Entrelec
Model:
GMB 20L
MPN:
10194327
Secondary Model:
LR88297
Type:
Miniature Circuit Breaker (MCB)
SKU:
31086
Number of Poles:
2
Amperage Rating:
20A
Voltage Rating (UL):
20A-240VAC
Voltage Rating (CSA):
20A-250VAC
Frequency:
50/60Hz
Trip Mechanism:
Time Delay
Mounting Type:
DIN Rail
Certifications:
UL Listed, CSA Certified
Manufacture Date:
01/98
Series:
GMB
Condition:
Used – Inspected
Country/Region of Manufacture:
France
Seller Notes:
Unit only; no accessories included.
Condition Notes:
Entrelec GMB 20L 2-pole 20A circuit breaker. Inspected and in good used condition. Housing is clean, toggle switch moves freely, DIN rail clip intact, rating label legible.
View AllClose

Related Products

Related Products

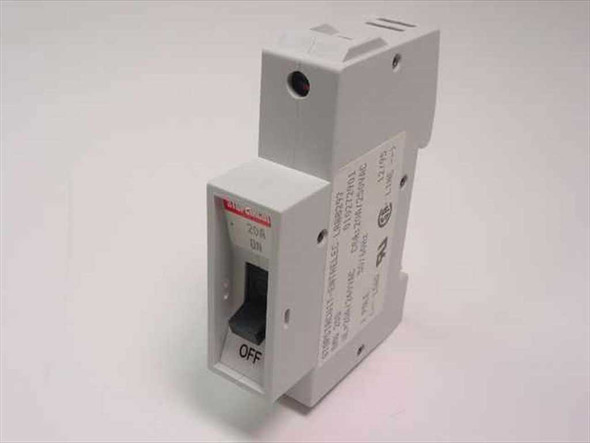

Entrelec GMU 20D 010272901 DIN rail circuit breaker front view with toggle switch in OFF position Entrelec GMU 20D circuit breaker side and rear view showing DIN rail clip and screw terminals
Add to Cart
Quick view

Entrelec GMU 20D 010272901 Circuit Breaker 20A 1-Pole DIN Rail 240VAC Time Delay

Entrelec

$30.00
Was: $60.00
Entrelec GMU 20D 010272901 Circuit Breaker 20A 1-Pole DIN Rail 240VAC Time Delay Miniature circuit breaker designed to protect electrical circuits from overcurrent and short-circuit conditions. This...
31087
SKU:
31087
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Entrelec
Model:
GMU 20D
MPN:
010272901
Secondary Model:
LR88297
Type:
Miniature Circuit Breaker (MCB)
SKU:
31087
Current Rating:
20A
Voltage Rating (UL):
20A / 240VAC
Voltage Rating (CSA):
20A / 250VAC
Number of Poles:
1 Pole
Trip Characteristic:
Time Delay
Mounting Type:
DIN Rail
Frequency:
50/60 Hz
Certifications:
UL, CSA
Date Code:
12/95
Seller Notes:
New open-box; item is new but may be out of original packaging.
Country/Region of Manufacture:
France
Condition Notes:
Entrelec GMU 20D 20A DIN Rail Circuit Breaker, new unused open-box stock. Never installed or used. No wear or signs of operation.
Westinghouse MJ-2239 Quicklag Type BA 1-Pole 20A Circuit Breaker – right-side profile view showing toggle and body Westinghouse MJ-2239 Quicklag Type BA 20A Circuit Breaker – left-side profile view showing mounting bracket and label
Add to Cart
Quick view

Westinghouse MJ-2239 Quicklag Type BA 1-Pole 20A 120/240VAC Circuit Breaker

Westinghouse

$18.30
Was: $50.00
Westinghouse MJ-2239 Quicklag Type BA 1-Pole 20A 120/240VAC Circuit Breaker A thermal-magnetic circuit breaker for single-pole applications. This unit is rated for 20 amperes at 120/240VAC and is...
31940
SKU:
31940
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Westinghouse
Model:
MJ-2239
MPN:
MJ-2239
Type:
Thermal-Magnetic Circuit Breaker
SKU:
31940
Breaker Type:
Type BA Quicklag
Number of Poles:
1
Amperage Rating:
20A
Voltage Rating:
120/240VAC
Wire Compatibility:
CU-AL (Copper and Aluminum)
Wire Rating:
60/75°C
HACR Rated:
Yes
SWD Rated:
Yes
Certifications:
UL Listed
Country/Region of Manufacture:
Dominican Republic
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; no accessories included.
Condition Notes:
This Westinghouse MJ-2239 Quicklag Type BA 20A 1-Pole circuit breaker has been inspected and is in good used condition. Housing and toggle are intact with normal wear from prior use. Please contact us with any questions.
Heinemann CF3-G3-U 3-pole 20A 240VAC circuit breaker — front angled view showing toggle handles and terminal lugs Heinemann CF3-G3-U circuit breaker — close-up of three 20A toggle handles in OFF position with gang bar
Add to Cart
Quick view

Heinemann CF3-G3-U 3-Pole Circuit Breaker 20A 240VAC UL Listed Vertical Mount

Heinemann

$30.00
Was: $60.00
Heinemann CF3-G3-U 3-Pole Circuit Breaker 20A 240VAC UL Listed Vertical Mount A 3-pole circuit breaker rated for 20 amperes at 240VAC. This device protects electrical circuits by interrupting current...
31765
SKU:
31765
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Heinemann
Model:
CF3-G3-U
MPN:
CF3-G3-U
Type:
Circuit Breaker
SKU:
31765
Number of Poles:
3
Amperage:
20A
Voltage Rating:
240VAC
Certifications:
UL Listed
Mounting Type:
Vertical Surface Mount
Conductor Material:
Aluminum or Copper (AL/CU)
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; no accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
This Heinemann CF3-G3-U 3-Pole 20A 240VAC circuit breaker has been inspected and is in good used condition. Toggles and terminal lugs are intact. Minor surface wear from prior service. Please contact us with any questions.

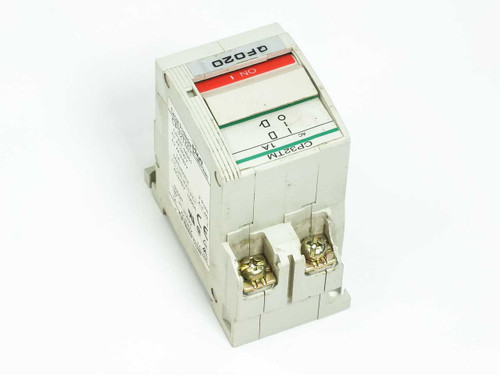

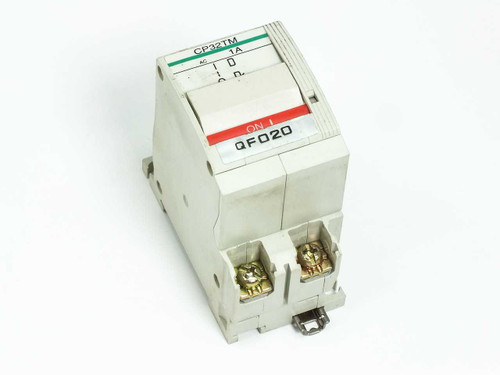

Fuji Electric CP32TM/1 CP32T-M001 1A 2-pole circuit protector – front view showing ON/OFF toggle and QF020 label Fuji Electric CP32TM/1 circuit protector – rear/opposite front view showing toggle and DIN rail clip
