Description
Westinghouse MJ-2239 Quicklag Type BA 1-Pole 20A 120/240VAC Circuit Breaker
A thermal-magnetic circuit breaker for single-pole applications. This unit is rated for 20 amperes at 120/240VAC and is designed to provide overcurrent protection in electrical distribution systems.
Specifications & What's Included
- Model: MJ-2239 (Type BA Quicklag)
- Poles: 1
- Amperage Rating: 20A
- Voltage Rating: 120/240VAC
- Wire Compatibility: Copper and Aluminum (CU-AL)
- Wire Rating: 60/75°C
- HACR Rated: Yes
- SWD Rated: Yes
- UL Listed
- Unit only; no accessories included
Applications
Type BA Quicklag breakers are used in general-purpose electrical panels and distribution equipment for branch circuit protection. These breakers are commonly found in residential and light commercial installations where fast response to short circuits is required. The HACR and SWD ratings indicate suitability for use with air conditioning equipment and switch duty applications. This breaker is compatible with Westinghouse electrical panels and similar systems using BA-type breaker positions.
This Westinghouse MJ-2239 Quicklag Type BA 1-Pole 20A Circuit Breaker has been inspected and appears to be in good used condition. The housing, toggle, and terminal hardware are intact with no visible cracks or damage. The unit shows normal surface wear consistent with prior installation and use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Westinghouse |
Model: |
MJ-2239 |
MPN: |
MJ-2239 |
Type: |
Thermal-Magnetic Circuit Breaker |
SKU: |
31940 |
Breaker Type: |
Type BA Quicklag |
Number of Poles: |
1 |
Amperage Rating: |
20A |
Voltage Rating: |
120/240VAC |
Wire Compatibility: |
CU-AL (Copper and Aluminum) |
Wire Rating: |
60/75°C |
HACR Rated: |
Yes |
SWD Rated: |
Yes |
Certifications: |
UL Listed |

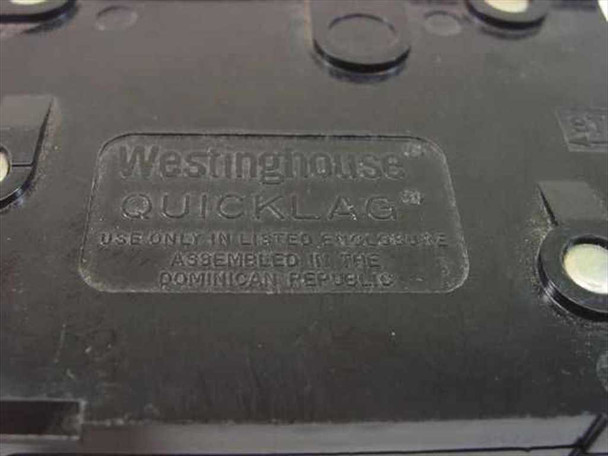

Country/Region of Manufacture: |
Dominican Republic |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Unit only; no accessories included. |
Condition Notes: |
This Westinghouse MJ-2239 Quicklag Type BA 20A 1-Pole circuit breaker has been inspected and is in good used condition. Housing and toggle are intact with normal wear from prior use. Please contact us with any questions. |
