Entegris Fluoroware H20-551 9-Slot 2" Wafer Chip Tray w/ Cover Bare Die CSP Lot/10

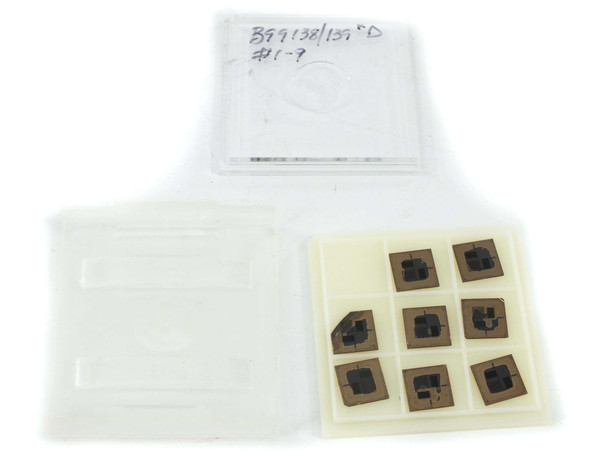

This lot consists of 10 complete sets of Entegris Fluoroware H20-551 9-slot wafer chip trays, each paired with its H20-02 clear cover and H20-0B retention clip. The trays are designed to hold nine 2" bare die or chip scale package (CSP) devices in individual pockets, keeping them organized and protected during storage and handling. The chips visible in the photos are included with the lot.
Specifications & What's Included
- Tray Model: Entegris Fluoroware H20-551

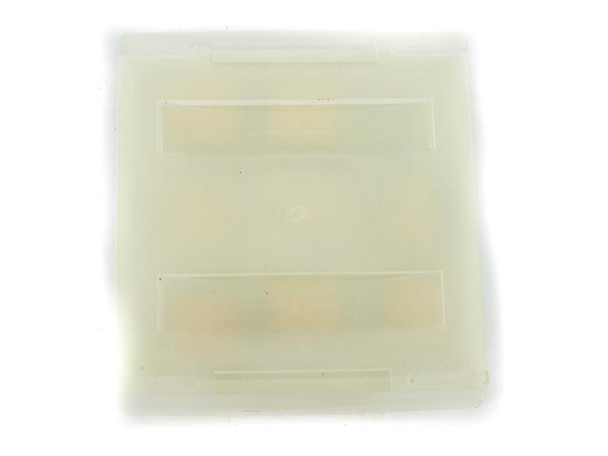

- Cover Model: Fluoroware H20-02 (clear, embossed model number visible on edge)

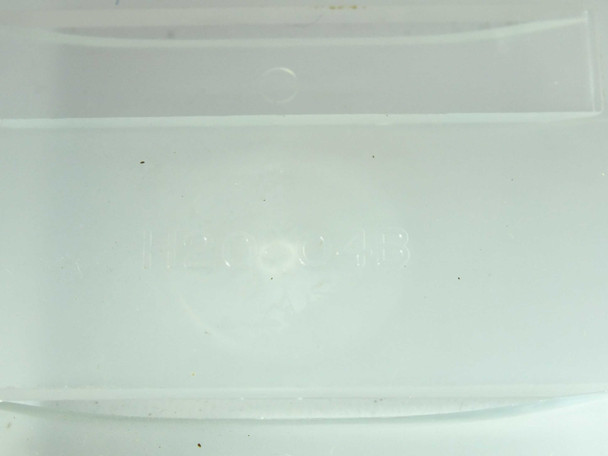

- Clip Model: Fluoroware H20-0B (white retaining clip, embossed model number visible)
- Slots per tray: 9
- Tray footprint: 2" x 2"
- Compatible die type: Bare die and CSP (Chip Scale Package)
- Material: Fluoroware fluoropolymer — low-outgassing, static-dissipative construction standard to Entegris wafer carriers
- Lot size: 10 complete sets (tray + cover + clip)
- Chips: included as shown in photos
- Condition notes: covers have handwritten sharpie lot markings that clean off easily with isopropyl alcohol (verified with 91% IPA)
Applications
Entegris Fluoroware wafer chip trays are standard carriers used in semiconductor manufacturing and packaging environments to store and transport bare die and CSP devices between process steps, inspection stations, and packaging operations. The H20-551 format is used in die sorting, wafer dicing, test, assembly, and incoming/outgoing inspection workflows where individual die need to be kept isolated, identified by lot, and protected from contamination or physical damage. Fluoroware trays are commonly found in clean room and near-clean-room environments and are compatible with standard die-handling equipment. They are also widely used in research, failure analysis labs, and semiconductor procurement operations for organizing and archiving small quantities of bare die by lot or part number.
These Entegris Fluoroware H20-551 9-slot 2" wafer chip trays are used and in good condition. The lot consists of 10 complete sets, each including the H20-551 tray, H20-02 clear cover, and H20-0B clip. The covers have handwritten sharpie lot markings on them — we confirmed these clean off easily with 91% isopropyl alcohol. The chips visible in the photos are included with the trays. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Entegris |
Model: |
H20-551 |
MPN: |
H20-551 |
Type: |
Wafer Chip Tray with Cover |
SKU: |
51620 |
Lot Size: |
10 Sets (Tray + Cover + Clip each) |
Tray Model: |
Entegris Fluoroware H20-551 |
Cover Model: |
Fluoroware H20-02 |
Clip Model: |
Fluoroware H20-0B |
Number of Slots: |
9 |
Wafer Size: |
2 inch (2") |
Tray Dimensions: |
2" x 2" |
Die Type Compatibility: |
Bare Die, CSP (Chip Scale Package) |
Material: |
Fluoroware (fluoropolymer plastic) |
Application / Use Case: |
Semiconductor wafer die storage and transport |
Condition: |
Used – Inspected |
Seller Notes: |
Lot of 10 sets; each set includes tray, cover, and clip. Chips and sharpie markings included; markings clean off with rubbing alcohol. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Lot of 10 used Entegris H20-551 9-slot 2" wafer chip trays, each with H20-02 cover and H20-0B clip. Sharpie markings on covers clean off easily with rubbing alcohol. Chips included. Good used condition. |
