The Enerjet C Series Auto System Controller is a dedicated rackmount control unit designed to automate and monitor cryogenic high-vacuum systems. It provides centralized control over cryo pump sequencing, mechanical (roughing) pump operation, valve actuation, and system-mode selection — consolidating the logic required to safely cycle a cryogenic vacuum chamber through roughing, high-vacuum, regeneration, and venting steps.

Specifications & What's Included

• Brand: Enerjet
• Series: C Series Auto System Controller
• Form Factor: Rackmount (rack ears present)

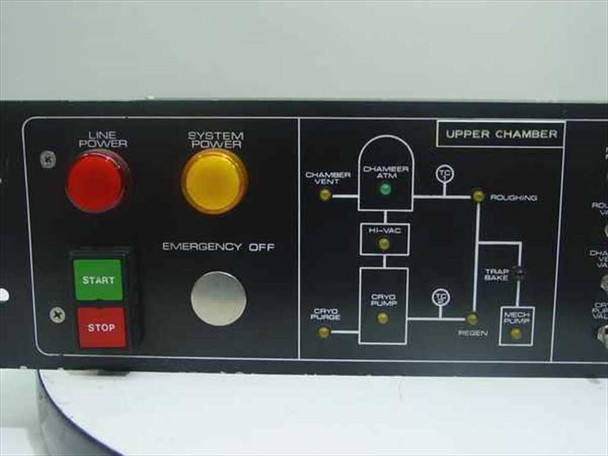

• Front Panel — Power Controls: Line Power indicator (red), System Power indicator (amber)
• Front Panel — Emergency Off: large mushroom-style emergency stop button
• Front Panel — Start / Stop: green START and red STOP pushbuttons

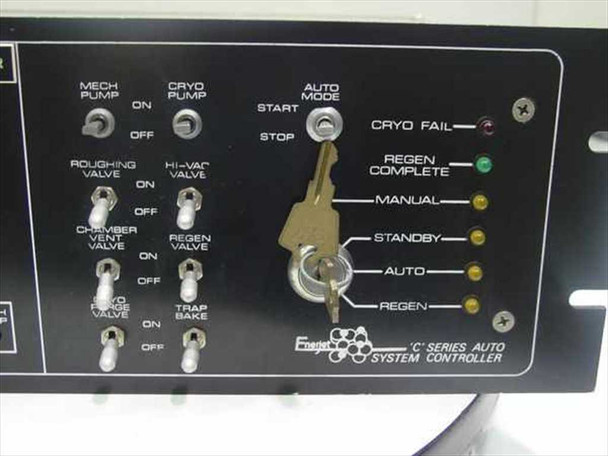

• Auto Mode Key-Switch: key-operated selector for Auto Mode with START and STOP positions
• Manual Toggle Switches: Mech Pump (ON/OFF), Cryo Pump (ON/OFF), Roughing Valve (ON/OFF), Hi-Vac Valve (ON/OFF), Chamber Vent Valve (ON/OFF), Regen Valve (ON/OFF), Trap Bake (ON/OFF)
• Upper Chamber Schematic Display: illuminated flow diagram showing Chamber ATM, Hi-Vac, Cryo Pump, Roughing, Trap Bake, and Mech Pump nodes
• Status LED Indicators: Cryo Fail (red), Regen Complete (green), Manual (yellow), Standby (yellow), Auto (yellow), Regen (yellow)
• Rear Connector: multi-pin D-sub style connector; panel labeled "FLUID IN"
• Enclosure: brushed aluminum top/rear cover; black anodized front panel
• Includes: controller unit only — no cables or accessories

Applications

The Enerjet C Series Auto System Controller is used to automate cryogenic high-vacuum systems in research, semiconductor processing, coating, and materials science environments. Cryogenic vacuum systems rely on a cryo pump (a closed-cycle helium refrigerator) to achieve ultra-high vacuum by cryocondensing residual gases on a cold surface, and the sequencing of that pump — along with the mechanical roughing pump, gate valves, and vent valves — must follow a precise, interlock-protected order to protect the pump and process chamber. A controller like this handles that sequencing automatically, reducing operator error and protecting expensive cryo pump hardware. It provides manual override capability for maintenance and regeneration cycles, during which the cryo pump is warmed and cryotrapped gases are pumped away by the mechanical pump. Equipment of this type was widely used in PVD (physical vapor deposition), thin-film deposition, and electron beam evaporation systems from the 1980s through the 2000s, and remains in service wherever legacy cryogenic vacuum systems are still operated.
