EF Data

EF Data PS310 SSPA Power Supply w/ Lambda LZS500-2 Regulated 3-Channel

(No reviews yet) Write a Review
SKU:
49641
MPN:
PS310
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
31.00 LBS
Shipping:
Calculated at Checkout
  • EF Data PS310 SSPA Power Supply front panel with three SSPA channel controls and PAS2 TAR label

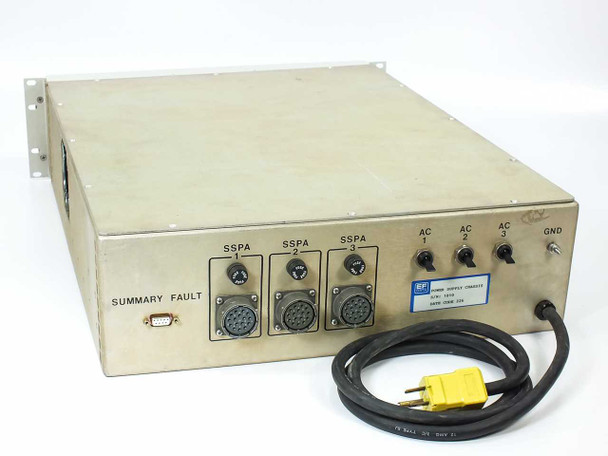

  • EF Data PS310 SSPA Power Supply rear panel showing three multi-pin SSPA connectors, AC inlets, and power cable
  • EF Data PS310 front panel close-up showing PAS2 TAR label, EF Data PS310 SSPA Power Supply nameplate, and ERDE GND indicator
  • EF Data PS310 front panel close-up of three SSPA channel sections each with Power Supply ON switch and RF Power Monitor terminals
  • EF Data PS310 rear panel close-up showing SSPA 1, 2, 3 multi-pin connectors with fuses and Summary Fault DB9 port
  • EF Data PS310 rear panel detail showing AC1, AC2, AC3 inlets, GND terminal, and EF Data Power Supply Chassis label with S/N 1010 and Date Code 226

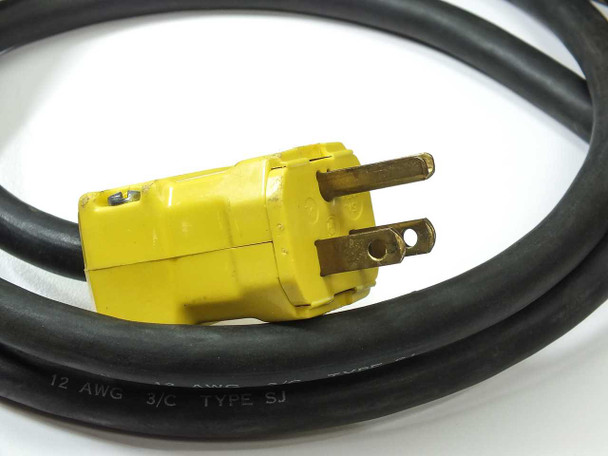

  • Close-up of included 12 AWG 3/C Type SJ power cable with yellow NEMA plug

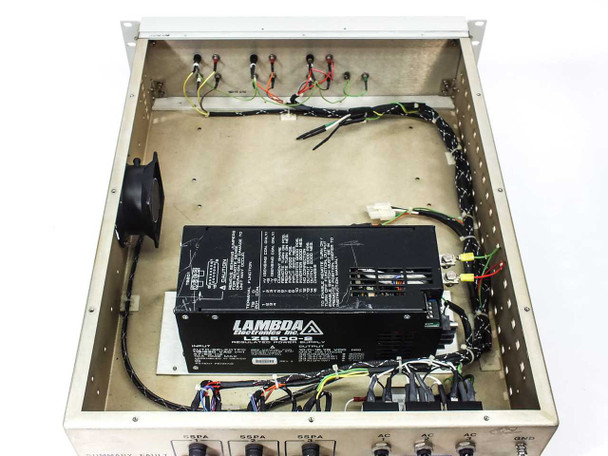

  • Interior view of EF Data PS310 chassis showing Lambda LZS500-2 regulated power supply module and internal wiring harness

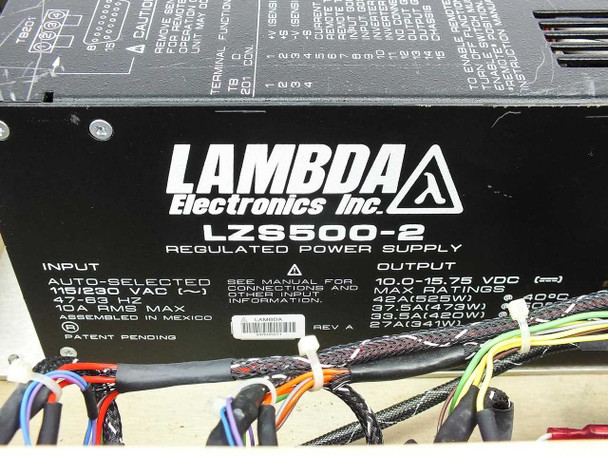

  • Close-up of Lambda Electronics Inc. LZS500-2 Regulated Power Supply label showing 115/230V auto-select input and output specs
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

EF Data PS310 SSPA Power Supply w/ Lambda LZS500-2 Regulated 3-Channel

The EF Data PS310 is a rackmount SSPA (Solid State Power Amplifier) power supply chassis designed to power up to three SSPA units in satellite communications ground equipment. The chassis houses an internal Lambda Electronics LZS500-2 regulated power supply module and provides independent power and RF power monitoring for each of three SSPA channels from a single rack-mountable enclosure.

Specifications & What's Included

  • Manufacturer: EF Data Corporation
  • Model: PS310 SSPA Power Supply
  • Configuration/Label: PAS2 TAR
  • Internal power supply: Lambda Electronics Inc. LZS500-2 Regulated Power Supply (Rev A, assembled in Mexico)
  • Input voltage: 115/230 VAC auto-selected, 47–65 Hz
  • Input current: 10A RMS max
  • Output voltage range: 10.0–15.75 VDC
  • Maximum output power: 500 W (525W at peak ratings)
  • Output current: 42A at 40°C / 37.5A at 25°C / 39.6A (420W) / 27A (341W) — per label ratings
  • Number of SSPA output channels: 3 (SSPA 1, SSPA 2, SSPA 3)
  • Front panel per channel: Power Supply ON toggle switch (green LED indicator), RF Power Monitor banana jacks (+/−)
  • Front panel: ERDE/GND ground indicator, power-on LED
  • Rear panel per channel: Multi-pin circular SSPA output connector with fuse access
  • Rear panel: AC 1, AC 2, AC 3 IEC-style AC inlets; chassis GND lug
  • Summary Fault output: DB9 connector on rear panel
  • Form factor: Rackmount, approximately 3U
  • Included: Internal Lambda LZS500-2 module (installed), 12 AWG 3/C Type SJ AC power cable with NEMA plug

Applications

The EF Data PS310 is used in satellite earth station and VSAT installations to supply regulated DC power to solid state power amplifiers (SSPAs), which boost the uplink RF signal before it reaches the antenna feed. EF Data (later acquired by Comstream and then ViXS/Encompass) was a well-known manufacturer of satellite modems, amplifiers, and related ground equipment; their SSPA power supply chassis like the PS310 were common in commercial and government satellite uplink sites from the 1990s into the 2000s. The PAS2 TAR designation suggests this unit was configured for a specific satellite teleport or earth station deployment. The three-channel design allows a single chassis to supply power to a redundant or multi-carrier SSPA arrangement, a standard practice in professional satellite uplink systems where amplifier redundancy is required. The Lambda LZS500-2 internal supply is a well-regarded regulated switching supply rated for up to 500W, providing stable DC voltage in the 10–15.75V range to drive SSPA modules.

Condition: Used
This EF Data PS310 SSPA Power Supply chassis has been inspected and appears to be in good condition. The unit shows typical surface wear consistent with prior rackmount use — light scuffing on the top cover and chassis sides — but the front panel labels, controls, and indicators are intact and legible. The rear multi-pin SSPA connectors and AC inlets appear undamaged. The internal Lambda LZS500-2 regulated power supply module is present and the internal wiring harness is intact as seen in the photos. The included 12 AWG AC power cable is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
EF Data
Model:
PS310
MPN:
PS310
Secondary Model:
LZS500-2
SKU:
49641
Type:
SSPA Power Supply Chassis
Number of SSPA Channels:
3 (SSPA 1, SSPA 2, SSPA 3)
Internal Power Supply:
Lambda Electronics LZS500-2 Regulated
Input Voltage:
115/230 VAC Auto-Selected, 47-65 Hz
Input Current:
10A RMS Max
Output Voltage Range:
10.0–15.75 VDC
Max Output Power:
500 W (525W peak)
Output Current Max:
42A at 40°C
Front Panel Controls:
Power Supply ON switch + RF Power Monitor per SSPA
Rear Connectors:
3x multi-pin SSPA connectors, AC1/AC2/AC3 inlets, GND
Summary Fault Output:
DB9 connector on rear panel
Power Cable:
Included — 12 AWG 3/C Type SJ with NEMA plug
Form Factor:
Rackmount, 3U
Label / Configuration:
PAS2 TAR
Condition:
Used – Inspected
Country/Region of Manufacture:
Mexico (Lambda module)
Seller Notes:
Includes internal Lambda LZS500-2 and AC power cable
Condition Notes:
EF Data PS310 SSPA Power Supply chassis inspected and in good condition. Shows light surface wear from prior rack use. Internal Lambda LZS500-2 module present, wiring intact. AC power cable included.
