Lambda Electronics

Lambda Electronics LND-Y-152 Dual Output Regulated Power Supply 12-15VDC

(No reviews yet) Write a Review
SKU:
51636
MPN:
LNS-Y-152
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • Lambda Electronics LND-Y-152 regulated power supply – top label view showing model number, input/output specs, and max ratings

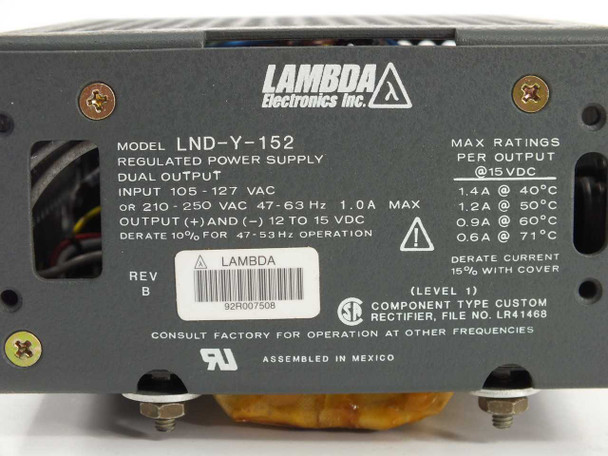

  • Lambda LND-Y-152 dual output power supply – label close-up showing Rev B, input 105-250VAC, output 12-15VDC, and UL/CSE markings

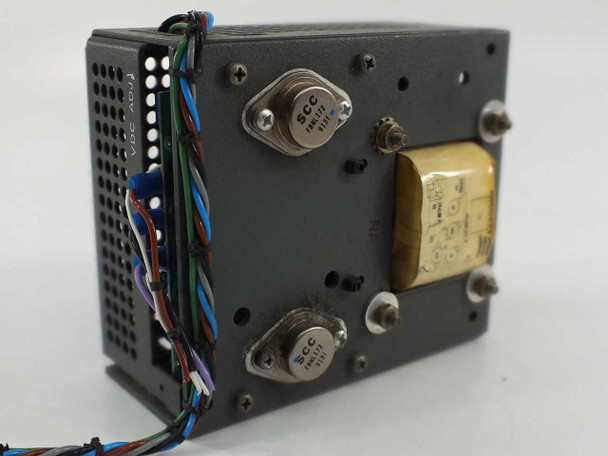

  • Lambda LND-Y-152 power supply – side/rear view showing SCC transistors, transformer, and output wiring harness
  • Lambda LND-Y-152 power supply – bottom view showing VDC ADJ trimmer, ventilation perforations, and internal PCB components
$55.00
Was: $100.00
Current Stock: 1

Sold Out

Description

Lambda Electronics LND-Y-152 Dual Output Regulated DC Power Supply 12-15VDC 105-250VAC

Regulated dual-output DC power supply rated for 12-15VDC adjustable output. Accepts 105-127VAC or 210-250VAC input at 47-63Hz. Open frame construction with integral output wiring harness.

Specifications & What's Included

  • Model: LND-Y-152 (Rev B)
  • Output: Dual, 12-15VDC adjustable; 1.4A max @ 15VDC/40°C
  • Input: 105-127VAC or 210-250VAC, 47-63Hz, 1.0A max
  • Derating: 10% for 47-53Hz; 15% with cover
  • UL Listed; Rectifier File No. LR41468
  • Includes: Unit with output wiring harness only

Applications

Dual-output supplies of this type were used in industrial control systems, telecommunications equipment, and test instrumentation requiring regulated low-voltage DC from AC mains. Lambda Electronics supplies are found in legacy telecom infrastructure, industrial racks, and OEM equipment from the 1980s-2000s.

Condition: Used
This Lambda Electronics LND-Y-152 Dual Output Regulated Power Supply has been inspected and appears to be in good used condition. The label is clean and fully legible, showing Rev B markings and all rating plate details. The chassis shows light handling wear consistent with prior service use. The output wiring harness is attached and intact. The internal PCB and components are visible through the ventilation perforations and appear undamaged. This unit has not been powered or bench-tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Lambda Electronics
Model:
LND-Y-152
MPN:
LND-Y-152
Type:
Regulated DC Power Supply
SKU:
51636
Number of Outputs:
2 (Dual Output)
Output Voltage:
12 to 15 VDC (adjustable)
Input Voltage:
105-127 VAC or 210-250 VAC
Input Frequency:
47-63 Hz
Input Current:
1.0A Max
Max Output Current @ 15VDC 40C:
1.4A
Max Output Current @ 15VDC 50C:
1.2A
Max Output Current @ 15VDC 60C:
0.9A
Max Output Current @ 15VDC 71C:
0.6A
Derating:
10% for 47-53Hz; 15% with cover
Revision:
Rev B
Rectifier File No.:
LR41468
Certifications:
UL Listed; CSE Component Type Custom Rectifier LR41468
Country/Region of Manufacture:
Mexico
Form Factor:
Open Frame / Enclosed Box
Power Requirements:
105-127V or 210-250V AC, 47-63Hz
Condition:
Used – Inspected
Seller Notes:
Unit only; output wiring harness attached. No accessories included.
Condition Notes:
Lambda Electronics LND-Y-152 Dual Output Regulated Power Supply, used, inspected. Good cosmetic condition; label clean and legible, Rev B. Output wiring harness intact. Not bench-tested at our facility. Photos available.
