EF Data CPA 6025 C-Band Solid State Power Amplifier 5.845-6.425 GHz 48 dB

(No reviews yet) Write a Review
SKU:
49627
MPN:
CPA 6025
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout
  • EF Data CPA 6025 C-Band Solid State Power Amplifier – three-quarter front-left view showing aluminum chassis, gold-anodized RF module on top, cooling fan, and attached cable harness
  • EF Data CPA 6025 C-Band SSPA – three-quarter front-right view showing full unit with yellow power connector, black power cable, and wall-mount bracket
  • EF Data CPA 6025 rating label – shows model CPA 6025, serial 835, frequency 5.845–6.425 GHz, noise temp N/A, gain 48 dB, date code 374, part number AS/2719
  • EF Data CPA 6025 rear panel – large cooling fan, fuse holder, AC power cable inlet, and DB-25 control connector on gold RF module above
  • EF Data CPA 6025 control and RF interface end – DB-25 female connector and SMA female RF connector on gold-anodized amplifier module

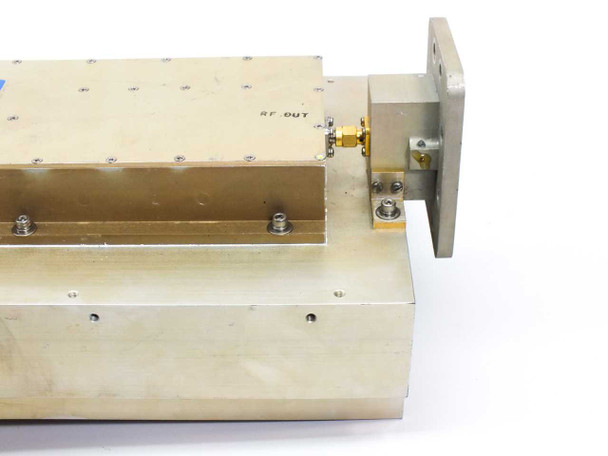

  • EF Data CPA 6025 RF output end – SMA female RF OUT connector and waveguide/flange output port on aluminum chassis with 'RF OUT' label visible
$475.00
Was: $950.00
Current Stock: 1

Sold Out

Description

EF Data CPA 6025 C-Band Solid State Power Amplifier 5.845-6.425 GHz 48 dB AS/2719

This is a C-Band solid state power amplifier (SSPA) designed for satellite uplink and transmission applications. It operates across the 5.845–6.425 GHz frequency range with 48 dB gain and uses forced-air cooling for thermal management.

Specifications & What's Included

  • Frequency Range: 5.845–6.425 GHz (C-Band)
  • Gain: 48 dB
  • RF Output Connector: SMA (female)
  • Control Interface: DB-25 (female)
  • Cooling: Forced air (fan-cooled)
  • Form Factor: Chassis/Panel-Mount
  • Includes power cable and interconnect harness

Applications

The CPA 6025 is used in satellite ground station transmit chains, VSAT systems, and C-Band uplink infrastructure. This amplifier type has been standard in telecom and satellite earth station equipment for decades, providing medium-to-high power amplification in fixed and transportable uplink configurations. It integrates into transmission systems requiring solid-state reliability and moderate output power in the C-Band allocation.

Condition: Used
This EF Data CPA 6025 C-Band Solid State Power Amplifier has been inspected and appears to be in good condition. The aluminum chassis and gold-anodized RF module show normal wear consistent with prior use — some minor scuffing on the enclosure surfaces. The cooling fan, DB-25 control connector, SMA RF connectors, and power cable are all present and appear intact. A yellow power connector and black cable harness are included as seen in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
EF Data
Model:
CPA 6025
MPN:
AS/2719
Type:
C-Band Solid State Power Amplifier (SSPA)
SKU:
49627
Frequency Range:
5.845 - 6.425 GHz
Gain:
48 dB
Noise Temperature:
N/A
Date Code:
374
RF Band:
C-Band
Amplifier Technology:
Solid State (SSPA)
RF Output Connector:
SMA (female)
Control Interface Connector:
DB-25 (female)
Cooling:
Forced air (fan-cooled)
Form Factor:
Chassis / Panel-Mount
Condition:
Used – Inspected, appears in good condition
Seller Notes:
Includes attached power cable and interconnect harness/cables
Application:
Satellite uplink, VSAT, C-Band ground station transmit chain
Condition Notes:
EF Data CPA 6025 C-Band SSPA, inspected and in good used condition. Normal wear on chassis. Cooling fan, DB-25, SMA connectors, and power/interconnect cables present. Please contact us with any questions.
