Description
MSE CPA 6010EF SS Power Amplifier 5.925-6.425 GHz 45dB Gain Satcom C-Band
Solid-state power amplifier for C-Band satellite uplink applications. Operates across the 5.925–6.425 GHz frequency range with 45 dB gain and waveguide output interface.
Specifications & What's Included

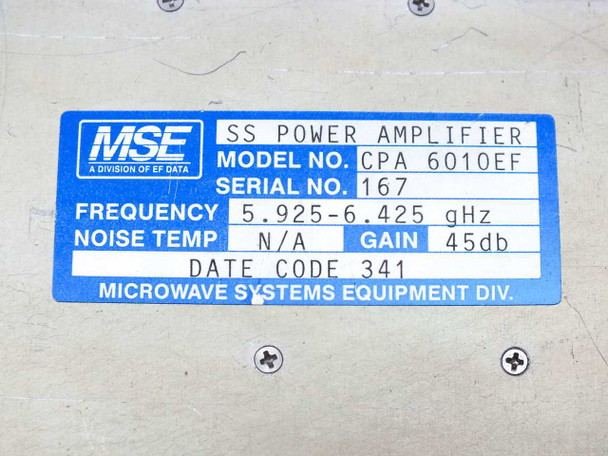

- Model: CPA 6010EF (MSE/EF Data - Microwave Systems Equipment Division)
- Frequency Range: 5.925–6.425 GHz (C-Band)
- Gain: 45 dB
- RF Input/Output Connectors: SMA (female)
- Control Connector: DB-25 (D-Sub 25-pin)
- Output Interface: Waveguide flange
- Date Code: 341
- Country of Manufacture: United States
Applications
Used in satellite communication uplink systems, teleport earth stations, and C-Band VSAT networks. This amplifier type is deployed to boost RF signal strength for outbound satellite transmissions and supports high-frequency terrestrial-to-satellite links. Compatible with standard satcom teleport infrastructure using C-Band transponders.
Condition: Used

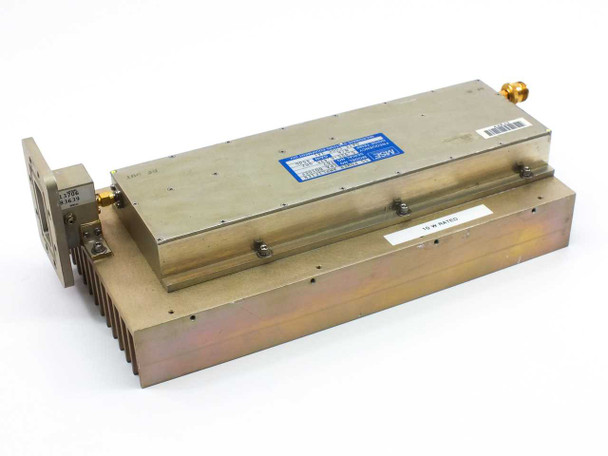

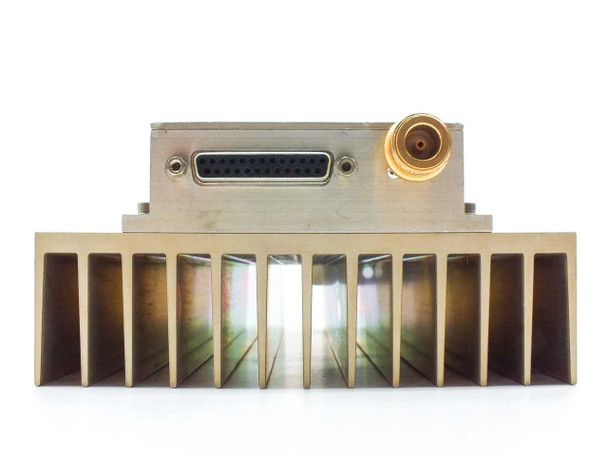

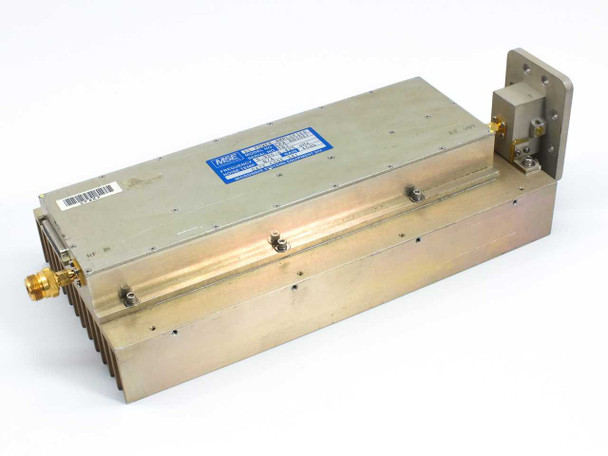

This MSE CPA 6010EF Solid-State Power Amplifier has been inspected and is in good used condition. It came out of a spare parts stockroom at a satcom teleport, where it had been in service. The chassis, heatsink fins, SMA connectors, DB-25 control port, and waveguide flange all appear intact with no obvious physical damage. There is light surface oxidation/discoloration on the heatsink base plate consistent with normal age and storage, but no deep corrosion or mechanical damage is noted. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This MSE CPA 6010EF Solid-State Power Amplifier has been inspected and is in good used condition. It came out of a spare parts stockroom at a satcom teleport, where it had been in service. The chassis, heatsink fins, SMA connectors, DB-25 control port, and waveguide flange all appear intact with no obvious physical damage. There is light surface oxidation/discoloration on the heatsink base plate consistent with normal age and storage, but no deep corrosion or mechanical damage is noted. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
MSE (Microwave Systems Equipment) |
Model: |
CPA 6010EF |
MPN: |
CPA 6010EF |
Type: |
Solid-State Power Amplifier (SSPA) |
SKU: |
49622 |
Frequency Range: |
5.925-6.425 GHz |
Frequency Band: |
C-Band |
Gain: |
45 dB |
Noise Temperature: |
N/A |
Date Code: |
341 |
RF Output Connector: |
SMA (female) |
RF Input Connector: |
SMA (female) |
Control Connector: |
DB-25 (D-Sub 25-pin) |
Output Interface: |
Waveguide flange |
Application: |
Satellite Uplink, Satcom Teleport, C-Band VSAT |
Manufacturer Division: |
EF Data - Microwave Systems Equipment Div. |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Pulled from spare parts stockroom at satcom teleport |
Country/Region of Manufacture: |
United States |
Condition Notes: |
MSE CPA 6010EF SS Power Amplifier inspected and in good used condition. Pulled from a spare parts stockroom at a satcom teleport. Chassis, connectors, heatsink, and waveguide flange all appear intact. Please contact us with any questions. |
