EDC Exclusive Design Co 551A-DTS-05 Disk Test Fixture Linear Slide Spindle

(No reviews yet) Write a Review
SKU:
30866
MPN:
551A-DTS-05
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
31.00 LBS
Shipping:
Calculated at Checkout

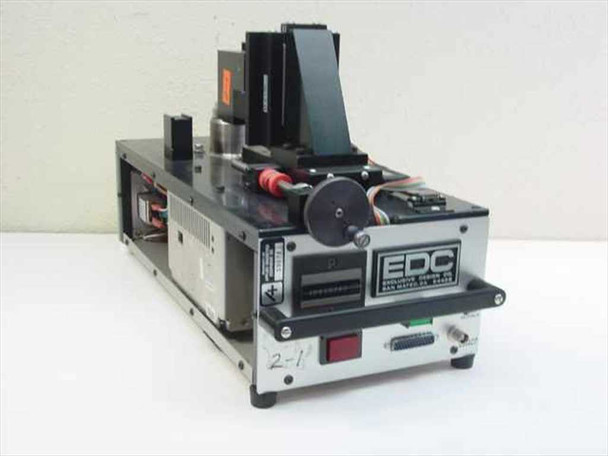

  • EDC Exclusive Design Co 551A-DTS-05 Disk Test Fixture – right front three-quarter view showing spindle assembly, linear slide, and EDC front panel with DB-25 connector

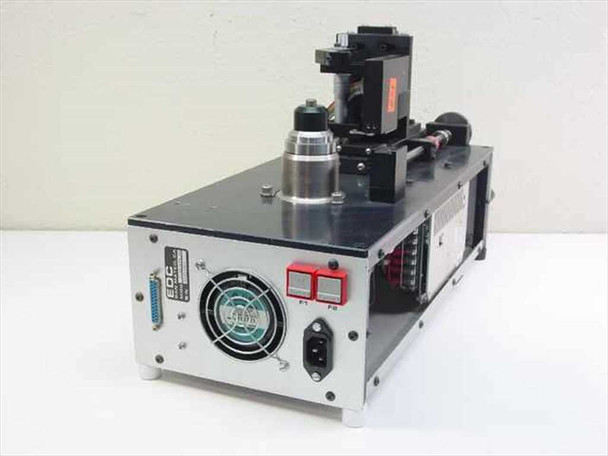

  • EDC 551A-DTS-05 Disk Test Fixture – left rear three-quarter view showing cooling fan, IEC AC inlet, red power switches, and spindle/lens assembly on top

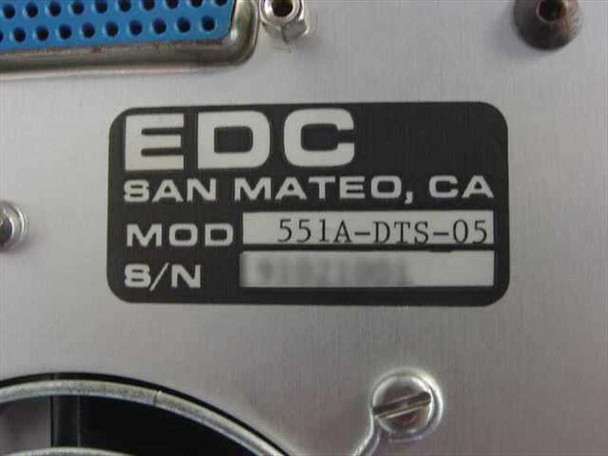

  • EDC 551A-DTS-05 model label closeup – San Mateo CA label showing model number 551A-DTS-05 and serial number field

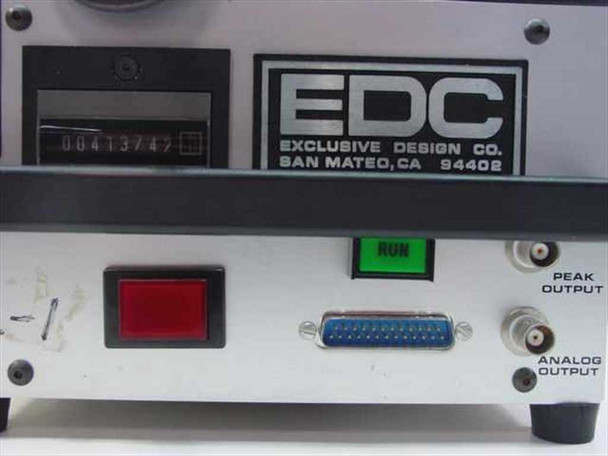

  • EDC Exclusive Design Co front panel – showing digital counter display, red power switch, green RUN button, DB-25 connector, and BNC Peak Output and Analog Output connectors

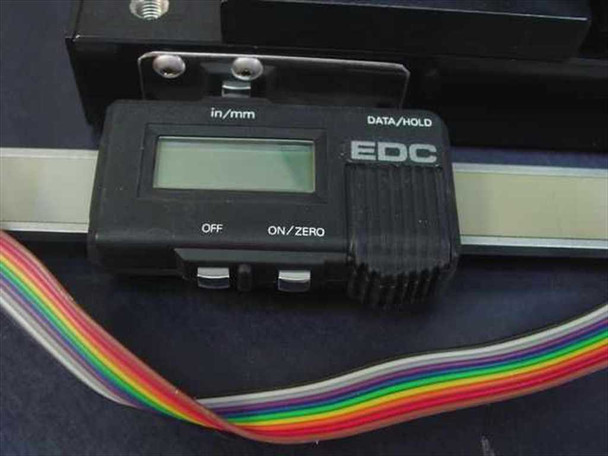

  • EDC digital linear slide measuring device – handheld display unit showing in/mm selector, DATA/HOLD button, OFF and ON/ZERO buttons, with ribbon cable attached

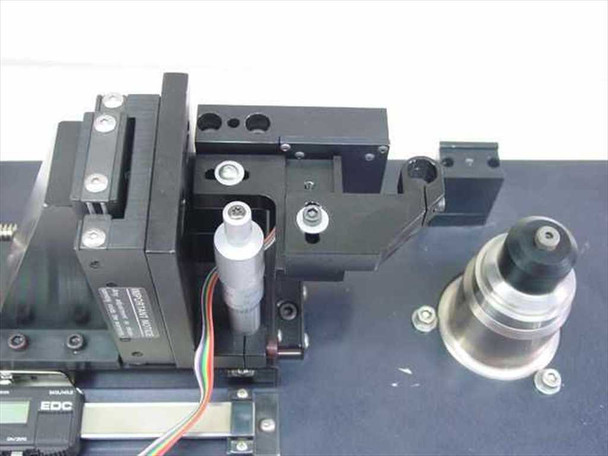

  • EDC 551A-DTS-05 spindle and linear slide mechanism closeup – showing PMI Kollmorgen spindle motor, precision positioning arm, slide rail, and optical/lens assembly

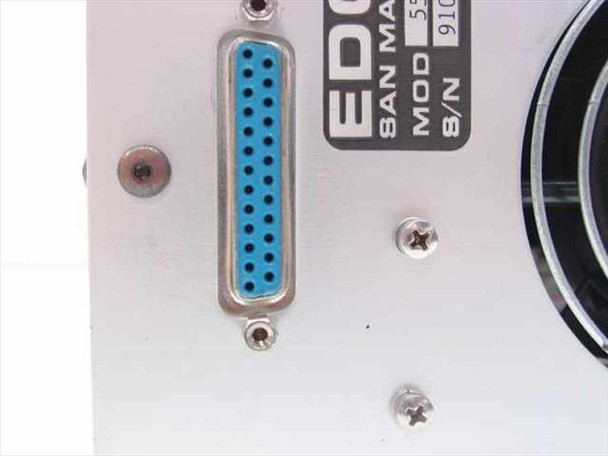

  • EDC 551A-DTS-05 rear panel closeup – showing blue DB-25 female connector and partial EDC San Mateo model label
$425.00
Was: $850.00
Current Stock: 2

Sold Out

Description

EDC Exclusive Design Co 551A-DTS-05 Disk Test Fixture Linear Slide Spindle

Benchtop disk test fixture with linear slide spindle assembly for precision disk testing and measurement. Operates on 115 VAC with integrated Lambda power supplies.

Specifications & What's Included

  • Model: 551A-DTS-05 (MPN: 551A-DTS-05)
  • Power: 115 VAC input via Lambda LSS-38-24 (24V/4.5A) and LSS-34-5 (5V/2.0A) supplies
  • Spindle: PMI Motion Technologies (Kollmorgen) P/N 0000980067
  • Motion: Daedal linear table with DCI linear slide movement table
  • Measurement: Mitutoyo micrometer (0.001" resolution, 1" range); EDC digital linear slide measuring device
  • Control: Power switch, RUN button, digital counter display
  • Connectors: DB-25 front panel; BNC peak and analog outputs
  • Includes: EDC Circuit Board ASM 9264

Applications

Disk test fixtures are used in manufacturing and quality control environments for automated disk testing, spindle runout measurement, and linear motion verification. This unit serves precision measurement and robotics/mechanics applications where repeatable disk positioning and testing is required. Commonly integrated into test stations for storage device validation and mechanical systems characterization.

Condition: Used
This Exclusive Design Co (EDC) 551A-DTS-05 Disk Test Fixture has been inspected and appears to be in good condition. Please note that we have had multiple revisions of this unit in stock — the specific internal components in the unit you receive may vary slightly from those listed in the description, though the unit will be functionally equivalent. The fixture and all visible mechanical assemblies appear intact with normal wear consistent with prior lab or production use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Exclusive Design Co (EDC)
Model:
551A-DTS-05
MPN:
551A-DTS-05
SKU:
30866
Type:
Disk Test Fixture
Condition:
Used – Inspected
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Power Requirements:
115 VAC (via internal Lambda power supplies)
Application / Use Case:
Disk testing, precision measurement, robotics/mechanics
Included Component 1:
Lambda LSS-38-24 135W Power Supply, 115VAC in, 24V/4.5A out
Included Component 2:
Lambda LSS-34-5 17W Power Supply, 115VAC in, 5V/2.0A out
Included Component 3:
Exclusive Design Co Circuit Board ASM 9264
Included Component 4:
PMI Motion Technologies (Kollmorgen) Spindle P/N 0000980067
Included Component 5:
Daedal Linear Motion Table
Included Component 6:
Mitutoyo Micrometer, 0.001" resolution, 1" range
Included Component 7:
EDC Digital Linear Slide Movement Measuring Device
Included Component 8:
DCI (Design Components Inc) Linear Slide Movement Table
Interface / Connector:
DB-25 (front panel); BNC Peak Output; BNC Analog Output
Front Panel Controls:
Power switch (red), RUN button (green), digital counter display
Seller Notes:
Multiple REVs in stock; components in received unit may vary slightly from those listed
Condition Notes:
EDC 551A-DTS-05 Disk Test Fixture, used, inspected and in good condition. Note: multiple REVs in stock — internal components may vary slightly from those listed but unit is functionally equivalent. Please view photos and contact us with questions.
