ECD Ovonics QA4-850-000 MC4 Solar Connector Reliability Tester 250V Uni-Solar

(No reviews yet) Write a Review
SKU:
48199
MPN:
QA4-850-000
Condition:
Used
Availability:
This item requires freight shipping — please contact us for a shipping quote before purchasing.
Weight:
260.00 LBS
Shipping:
Calculated at Checkout

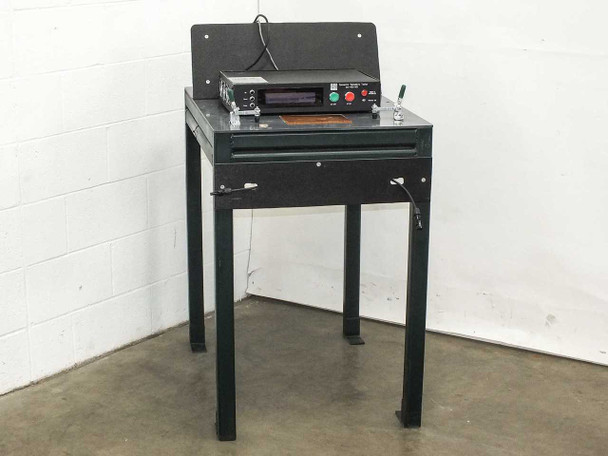

  • ECD Ovonics QA4-850-000 MC4 Solar Connector Reliability Tester on steel stand — full station front-left view
  • ECD Ovonics QA4-850-000 Connector Tester station — full rear-right view showing power cable and stand

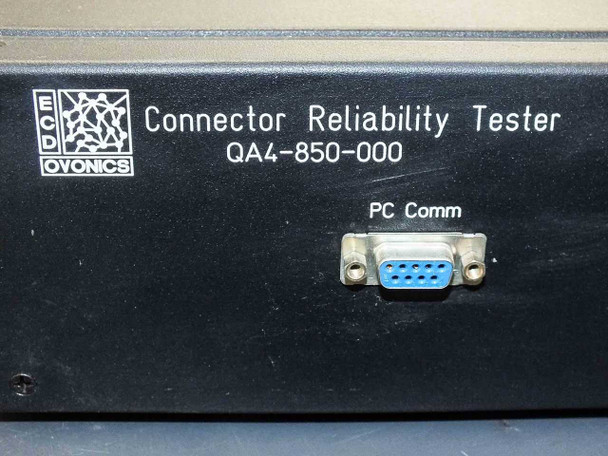

  • ECD Ovonics QA4-850-000 rear panel — PC Comm DB-9 serial port labeled, black enclosure

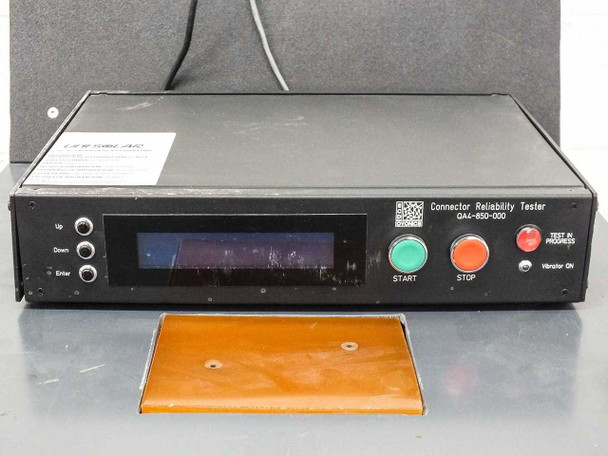

  • ECD Ovonics QA4-850-000 front panel — LCD display, START green button, STOP red button, TEST IN PROGRESS and Vibrator ON indicators, orange MC4 test pad in foreground
  • Carr-Lane vertical toggle hold-down clamp mounted on QA4-850-000 test station tabletop
  • Close-up of QA4-850-000 front panel STOP button and TEST IN PROGRESS / Vibrator ON indicators with Carr-Lane clamp

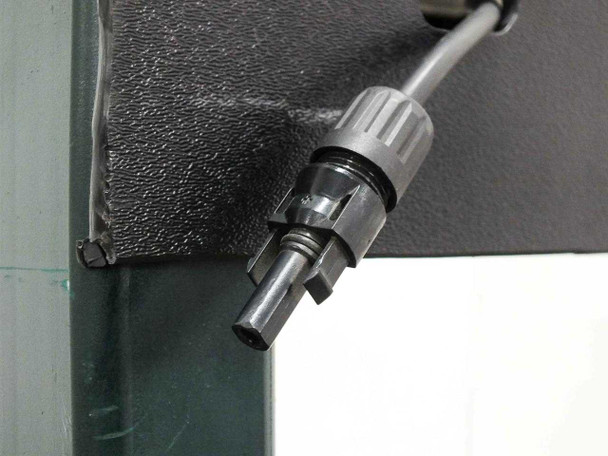

  • MC4 solar connector cable harness attached to upper frame of ECD Ovonics QA4-850-000 test station
  • MC4 connector close-up showing 'Do not disconnect under load' label on cable harness

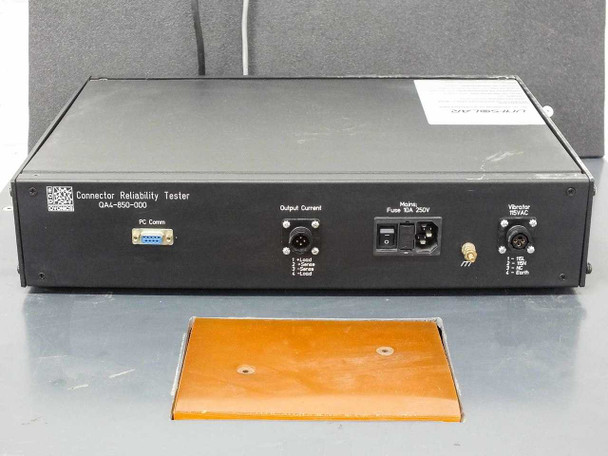

  • ECD Ovonics QA4-850-000 rear panel — PC Comm DB-9 port, Output Current connector, Mains Fuse 0A 250V IEC inlet, Vibrator 110VAC terminal, orange test pad visible below
  • Uni-Solar import label on QA4-850-000 — 'Probador de Soldadura Fria', Marca ECD Ovonics, import date AGO 10 2011, origin USA

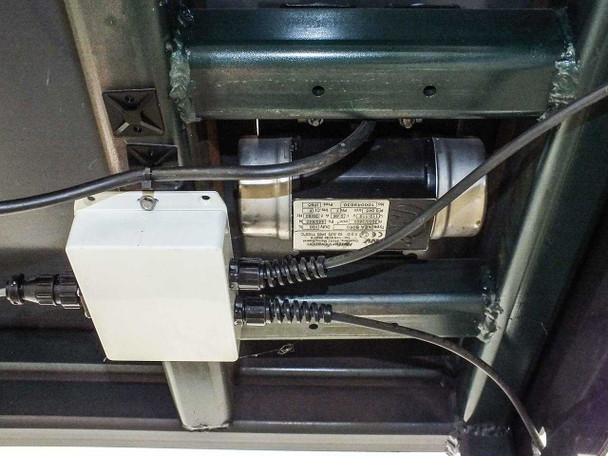

  • Underside of QA4-850-000 test station — Netter Vibration NEA-5050 vibrator motor mounted beneath tabletop with cabling and junction box
  • Netter Vibration NEA-5050 rating plate — Type NEA 5050, 110-115V, 0.46A, 0.045kW, 1Ph, 50/60Hz, 3000/3600 RPM, 440/640N, IP65, SN 100049630
$600.00
Was: $1,200.00
Current Stock: 1

Sold Out

Description

ECD Ovonics QA4-850-000 MC4 Solar Connector Reliability Tester 250V Uni-Solar

Benchtop vibration and continuity tester designed for MC4 solar connector qualification in photovoltaic manufacturing. Unit combines a 250V AC main controller with an integrated Netter Vibration NEA-5050 vibrator to stress-test MC4 connectors during production.

Specifications & What's Included

  • Model: QA4-850-000 | Vibrator Serial: 100049630
  • Main Power: 250V AC, 10A fuse; Vibrator: 110–115V AC, 0.46A, 50/60 Hz
  • Vibration Force: 440/640 N at 3000/3600 min⁻¹; IP65 rated; 100% duty cycle
  • Control: Green START, red STOP buttons; LCD display; TEST IN PROGRESS & Vibrator ON LEDs
  • Tabletop: 36" × 24"; Overall: 36.25" × 24" × 45" H on steel stand
  • Includes: Netter NEA-5050 vibrator, orange MC4 test pad (7" × 5.5"), Carr-Lane hold-down clamp, MC4 cable harness
  • Rear 9-pin RS-232 serial interface for data logging (no PC/software provided)

Applications

MC4 connector reliability testing was standard in Uni-Solar and other photovoltaic module assembly lines. The tester applies controlled vibration to energized MC4 connectors to detect intermittent contact failures, corrosion resistance, and mechanical durability before modules ship. Compatible with standard MC4 photovoltaic connectors used across residential and commercial solar manufacturing throughout the 2000s–2010s.

Condition: For Parts or Not Working
This ECD Ovonics QA4-850-000 MC4 Solar Connector Reliability Tester is being sold as-is. It has not been powered or tested at our facility — we do not have the PC or software required to operate the unit via the rear 9-pin RS-232 serial (PC Comm) port, so functionality cannot be confirmed. The unit appears physically complete: the ECD Ovonics controller module, Netter Vibration NEA-5050 vibrator, orange MC4 test pad, Carr-Lane hold-down clamp, and MC4 cable harness are all present. The steel stand and enclosure show general wear consistent with production use. The unit ships via freight — please contact us for a shipping quote before purchasing. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ECD Ovonics
Model:
QA4-850-000
MPN:
QA4-850-000
Type:
MC4 Solar Connector Reliability Tester
SKU:
48199
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes Netter Vibration NEA-5050 vibrator, orange MC4 test pad, Carr-Lane hold-down clamp, and MC4 cable harness. Requires freight shipping.
Connector Type:
MC4 (Multi-Contact 4mm Solar Connector)
Interface / PC Comm:
9-Pin RS-232 Serial (DB-9), rear panel
Power Requirements:
250V AC, 10A fuse (Mains)
Vibration Unit:
Netter Vibration NEA-5050
Vibrator Voltage:
110-115V AC
Vibrator Current:
0.46A
Vibrator Power:
0.045 kW
Vibrator Phase:
Single Phase
Vibrator Frequency:
50/60 Hz
Vibrator Speed:
3000/3600 min-1
Vibrator Force:
440/640 N
Vibrator Duty Cycle:
100%
Vibrator Protection Rating:
IP65
Vibrator Serial Number:
100049630
Test Pad Color:
Orange
Test Pad Dimensions:
7" x 5.5"
Tabletop Dimensions:
36" x 24"
Overall Dimensions:
36.25" x 24" x 45" tall
Front Panel Controls:
START (green), STOP (red), Up/Down/Enter navigation buttons, LCD display
Front Panel Indicators:
TEST IN PROGRESS LED, Vibrator ON LED
Clamp:
Carr-Lane vertical hold-down toggle clamp
Application:
MC4 connector vibration/continuity reliability testing for solar panel production
Compatible With:
Uni-Solar solar panel production lines, MC4 photovoltaic connectors
Country/Region of Manufacture:
USA
Form Factor:
Benchtop / Free-standing workstation on steel stand
Shipping Method:
Freight shipping required
Condition Notes:
ECD Ovonics QA4-850-000 MC4 Solar Connector Tester sold as-is. Not powered or tested — no PC/software available for the rear 9-pin serial port. Appears physically complete with vibrator, test pad, and clamp. Freight shipping required.
