DSM Vibratory Hopper Feeder 0.5 CF Tedea Huntleigh 1042 Load Cell Kendrion

DSM Vibratory Hopper Feeder 0.5 CF Tedea Huntleigh 1042 Load Cell Kendrion WS3B36

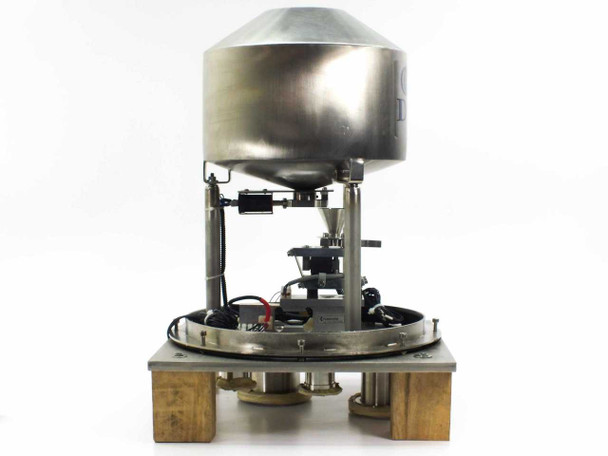

This DSM vibratory hopper/feeder is a 0.5 cubic foot bulk material feeding system that uses a tilted, vibrating platform to meter and dispense powder or granular material onto an integrated Tedea Huntleigh Model 1042 single-point load cell. The Kendrion WS 3B 36 vibrating solenoid drives the platform motion, allowing controlled, continuous material flow. The hopper and base are constructed of stainless steel throughout.

Specifications & What's Included

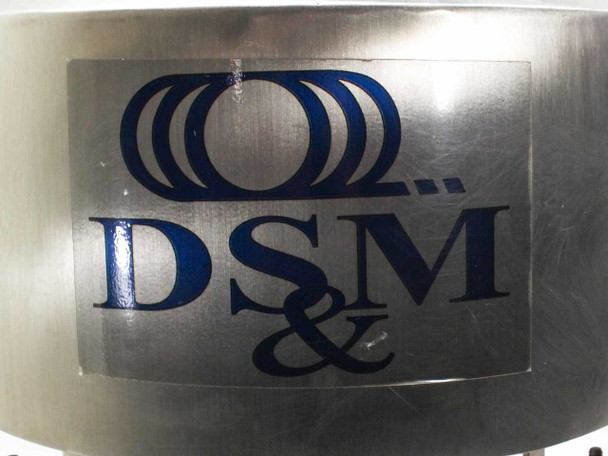

• Manufacturer: DSM
• Type: Vibratory Hopper / Loss-in-Weight Feeder
• Hopper Capacity: 0.5 Cubic Feet (CF)
• Hopper Dimensions: Approx. 11" Wide x 9.5" Tall
• Upper inlet port diameter: 4.375"
• Lower discharge port diameter: 1.25"
• Base port sizes: 2.875" and 1.875"
• Overall assembled dimensions: 15" Wide x 15" Deep x 22" Tall

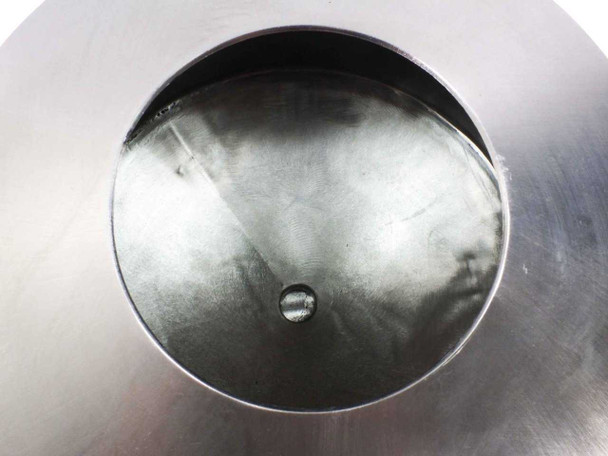

• Construction: Stainless steel hopper dome and base platform

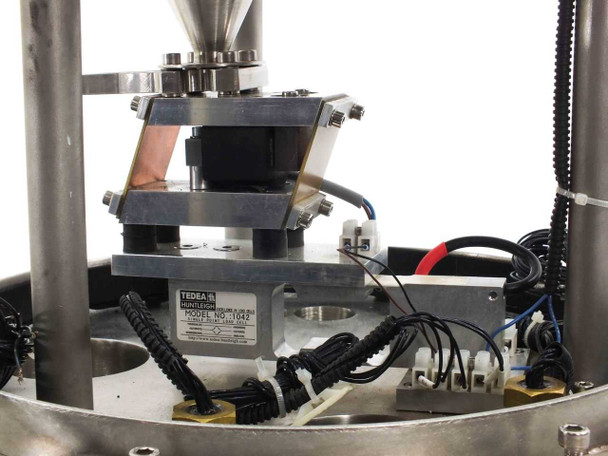

• Load Cell: Tedea Huntleigh / TotalComp Model 1042 — Single Point Load Cell

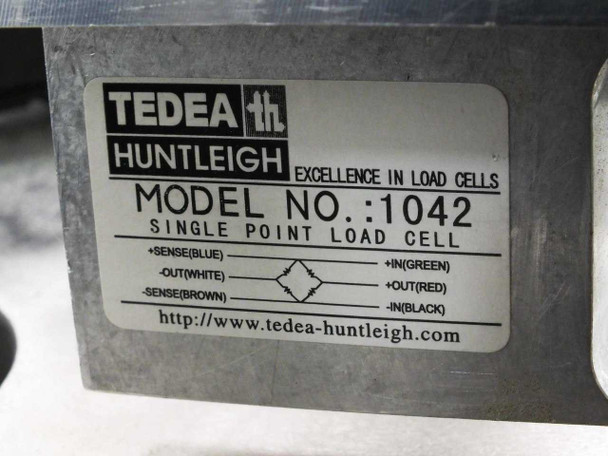

• Load cell wiring: +Sense (Blue), –Out (White), –Sense (Brown), +In (Green), +Out (Red), –In (Black)
• Vibrating Solenoid: Kendrion WS 3B 36
• Solenoid power: 230 VAC, 50 Hz, 2 VA
• Solenoid FD rating: 46
• Base support: Three cylindrical legs with rubber/felt vibration-isolation feet

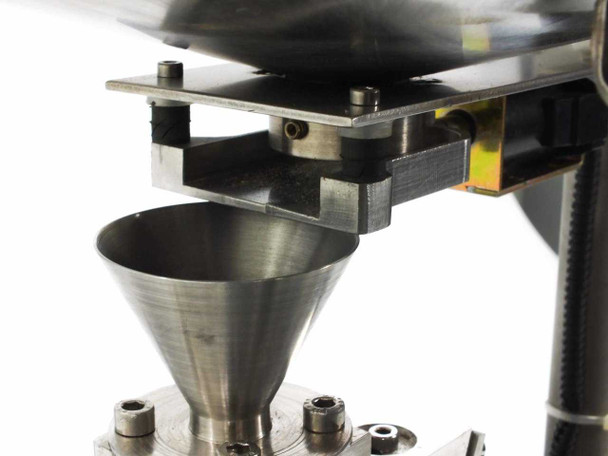

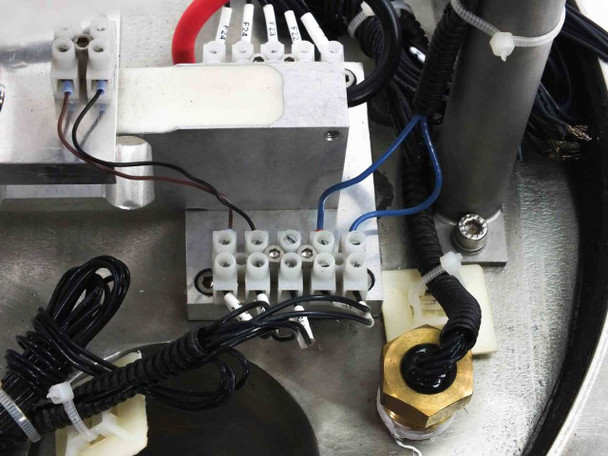

• Includes: Hopper assembly, vibrating platform, Tedea Huntleigh 1042 load cell, Kendrion WS3B36 solenoid, wiring harness, terminal block, and stainless conical discharge funnel
• Not included: Separate controller or power supply unit

Applications

Vibratory hopper feeders of this type are used in gravimetric (loss-in-weight) and volumetric dispensing systems where precise, controlled delivery of powders, granules, pellets, or other bulk solids is required. The load cell continuously measures the weight of material remaining in the hopper, allowing a process controller to regulate feed rate by adjusting vibration intensity or frequency. Common applications include pharmaceutical manufacturing, chemical processing, food production, plastics compounding, and laboratory-scale material dispensing where accuracy and repeatability matter. The Tedea Huntleigh (also marketed under the TotalComp brand) Model 1042 is a well-regarded single-point load cell widely used in platform scales and feeder systems across these industries. The Kendrion WS-series solenoid vibrators are standard components in European-built vibratory feeding equipment, designed to run on 230 VAC / 50 Hz power as common in European and international industrial environments. A separate process controller would be needed to integrate this feeder into an automated dispensing or batching system.
