Visumatic S-18 Automatic Screw Feeder Siamese Escapement Bulk Hopper 120VAC

(No reviews yet) Write a Review
SKU:
53143
MPN:
Custom Screwfeeder System
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
89.00 LBS
Shipping:
Calculated at Checkout
  • Visumatic S-18 automatic screw feeder system – three-quarter front-left view showing vibratory bowl, bulk hopper tower, control enclosure, and siamese escapement assembly on blue base
  • Visumatic S-18 screw feeder – straight front view showing bulk hopper, vibratory bowl, control box with intensity dial, and escapement mechanism

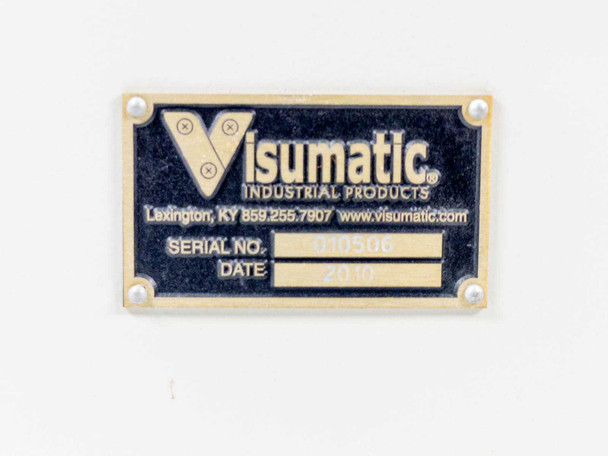

  • Visumatic Industrial Products nameplate showing serial number 010506 and date, Lexington KY
  • Visumatic S-18 top-down view of vibratory bowl showing bowl interior, escapement arm, level sensor probe, and siamese escapement track
  • Automation Devices Inc. Level Control Switch Model 8761 label on hopper assembly – Made in USA, Fairview PA
  • MAC Valves solenoid valve model 36A-BAC-JAAA-1GGG mounted to control enclosure side panel with pneumatic tubing connections
  • Close-up of heavily rusted siamese escapement assembly with pneumatic tubing and Automation Devices vibratory feeder controller visible in background

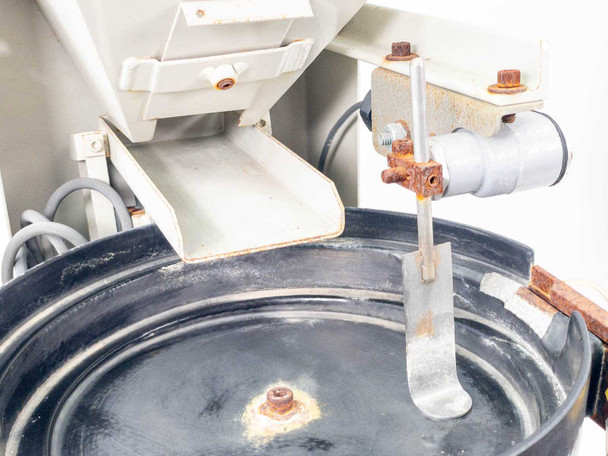

  • Visumatic S-18 bulk hopper exit chute and siamese escapement track detail showing rusty mounting hardware and bowl rim

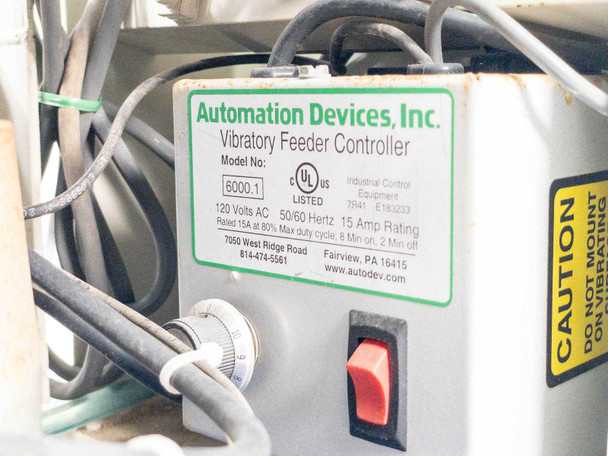

  • Automation Devices Inc. Vibratory Feeder Controller Model 6000.1 label – 120V AC, 50/60Hz, 15A rating, UL listed, Fairview PA

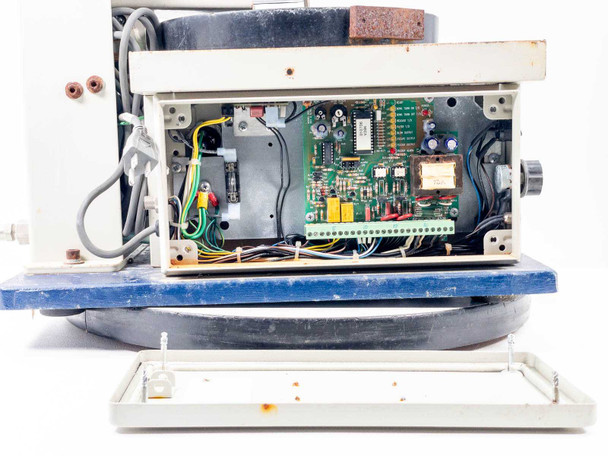

  • Visumatic S-18 control enclosure open showing Visumatic BASU automatic screw feeder microcomputer control board with indicator LEDs and terminal strip wiring
  • Close-up of Visumatic BASU microcomputer screw feeder control board showing main microcontroller chip (marked 010706), indicator LED array, relays, and labeled terminal blocks
  • Visumatic S-18 power cord exit detail and rear corner of control enclosure showing surface rust and corrosion on blue base plate
  • Interior of bulk hopper looking down showing funnel geometry with rust staining at seams and outlet opening

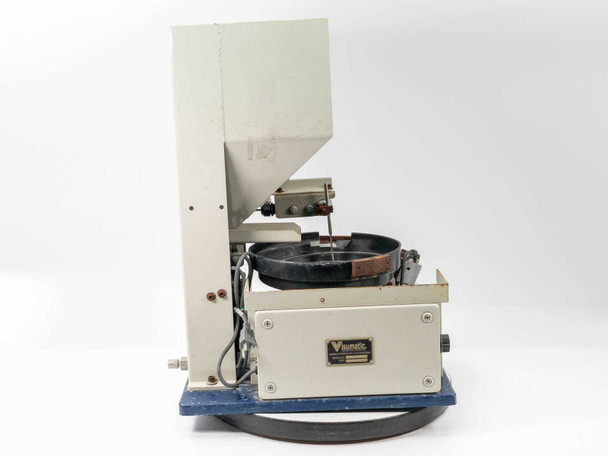

  • Visumatic S-18 screw feeder – right side profile view showing hopper column, vibratory bowl, and base
  • Visumatic S-18 – left side view showing bulk hopper, escapement mechanism, solenoid valve block, and vibratory bowl with visible rust on escapement
  • Visumatic S-18 – rear view showing bulk hopper motor mount, drive components, and pneumatic connections on back of base
$750.00
Was: $1,500.00
Current Stock: 1

Sold Out

Description

Visumatic S-18 Automatic Screw Feeder Siamese Escapement Bulk Hopper 120VAC

Vibratory bowl screw feeder system designed to automatically orient and deliver fasteners to assembly line operations. Uses a Siamese escapement mechanism to control screw feed rate and positioning.

Specifications & What's Included

  • Model: S-18
  • Power: 120V AC, 60Hz
  • Escapement Type: Siamese Escapement
  • Hopper Type: Bulk Hopper
  • Vibratory Controller: Automation Devices Inc. Model 6000.1 (120V AC, 50/60Hz, 15A max)
  • Level Control Switch: Automation Devices Inc. Model 8761
  • Solenoid Valve: MAC Valves 36A-BAC-JAAA-1GGG
  • Control Board: Visumatic BASU microcomputer board
  • Manufactured: United States

Applications

Used in automated assembly lines for fastener delivery and screwdriving operations. Visumatic feeders were standard equipment in manufacturing environments requiring consistent screw orientation and controlled feed rates. Compatible with standard assembly line control systems via the integrated microcomputer board and solenoid valve interface.

Condition: Used
This Visumatic S-18 automatic screw feeder system has been powered and tested at our facility and is in working order. The unit powers on when plugged in, and the intensity dial was tested and operates as intended. The siamese escapement shows significant surface rust but still functions. The vibrating bowl has a chip in it. The escapement assembly and associated hardware also show visible rust, as seen in the photos. The control enclosure interior and BASU microcomputer board appear intact and fully wired. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Visumatic
Model:
S-18
MPN:
S-18
Type:
Automatic Vibratory Bowl Screw Feeder System
SKU:
53143
Power Requirements:
120V AC, 60Hz
Escapement Type:
Siamese Escapement
Hopper Type:
Bulk Hopper
Vibratory Controller Brand:
Automation Devices Inc.
Vibratory Controller Model:
6000.1
Controller Voltage:
120V AC, 50/60Hz
Controller Amp Rating:
15A (80% max duty cycle: 8 min on, 2 min off)
Level Control Switch:
Automation Devices Inc. Model 8761
Solenoid Valve:
MAC Valves 36A-BAC-JAAA-1GGG
Control Board:
Visumatic BASU Automatic Screw Feeder microcomputer board
Condition:
Used – Inspected and Tested
Country/Region of Manufacture:
United States
Application:
Automated screwdriving, assembly line fastener delivery
Seller Notes:
Unit powers on; intensity dial tested and functional. Escapement shows rust but functions. Vibrating bowl has a chip.
Condition Notes:
Visumatic S-18 screw feeder tested and in working order. Powers on; intensity dial functional. Escapement is rusted but functions. Vibrating bowl has a chip. See photos for detail.
