Dodge Quantis HB382CN140TC Gearmotor 24.5:1 Ratio 2.21HP 230/460V NEMA 140TC
The Dodge Quantis HB382CN140TC is an inline helical gearmotor from Baldor-Dodge's Quantis series, combining a helical gear reducer with an integrated Marathon Electric microMAX three-phase AC induction motor. The unit delivers a 24.5:1 gear ratio with a maximum output torque of 1,947 in-lb at a rated input speed of 1,750 RPM, making it well suited for indexing, conveying, and precision positioning applications requiring controlled rotational speed and high torque output.
Specifications & What's Included
- Manufacturer: Baldor-Dodge
- Product Series: Quantis / QUA38
- Catalog Number: HB382CN140TC
- Reorder Number: 7710391-001
- Operations Manual: MN1697 / OPS Manual 499320
- Gear Ratio: 24.5:1
- Output Torque: 1,947 in-lb (max)
- Input Power: 2.21 HP (max)
- Input Speed: 1,750 RPM
- Mounting Position: A1
- Motor Mount: NEMA 140

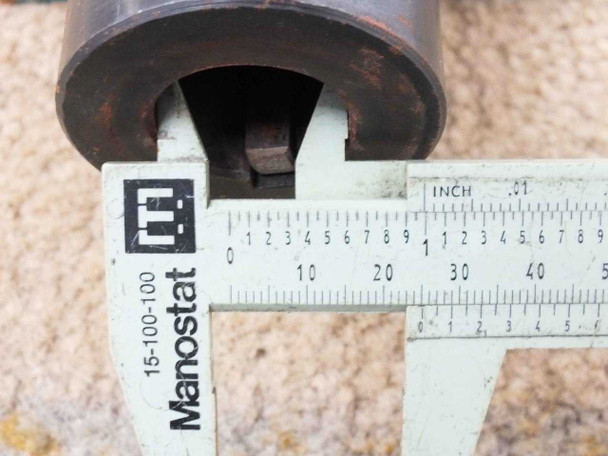

- Output Shaft: 1.000 x 1.97 inch (with keyway — confirmed by caliper measurement in photos)
- Lube Type: STD (Standard)
- Service Factor: 1.00
- Integrated Motor — Marathon Electric microMAX:
- Motor Model: HVK 145THTR5329AA P
- Motor Frame: NEMA 145TC
- Voltage: 230/460V AC
- Current: 4.8A / 2.4A (low/high voltage)
- Phase: 3-Phase
- Frequency: 60 Hz
- Full-Load Speed: 1,755 RPM
- Motor Type: Inverter Duty AC Induction Motor
- Enclosure: TENV (Totally Enclosed Non-Ventilated)
- Design: DES A
- Poles: 4
- IEC Rating: IEC 34-1, IEC 34-5, IP 43
- CAT No: Y366 (Marathon)
- Manufactured: Fort Smith, AR, USA
Applications
The Dodge Quantis inline helical gearmotor series is a standard workhorse in industrial automation, used across packaging machinery, conveyor systems, material handling lines, rotary indexing tables, and assembly equipment. The helical gear design provides smooth, quiet operation compared to worm-gear alternatives, and the inline configuration suits direct shaft-to-load coupling in tight spaces. The integrated TENV Marathon Electric inverter-duty motor is designed for use with variable frequency drives (VFDs), allowing variable-speed control — a common requirement in modern automated production lines. The NEMA 140TC frame and A1 mounting position are standard configurations for foot-mounting in horizontal drive arrangements. Dodge Quantis gearmotors have been a long-standing choice in food processing, aggregate handling, bottling lines, and general factory automation where repeatable torque and compact installation are required.

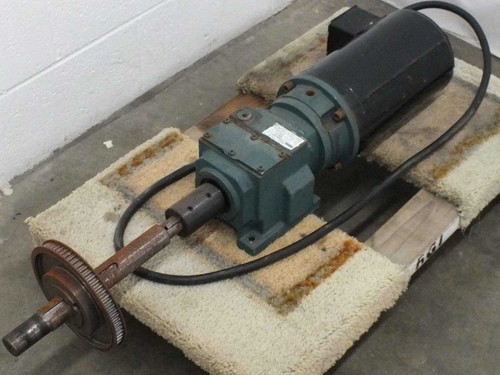

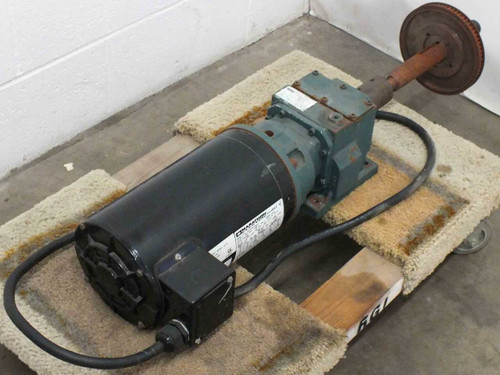

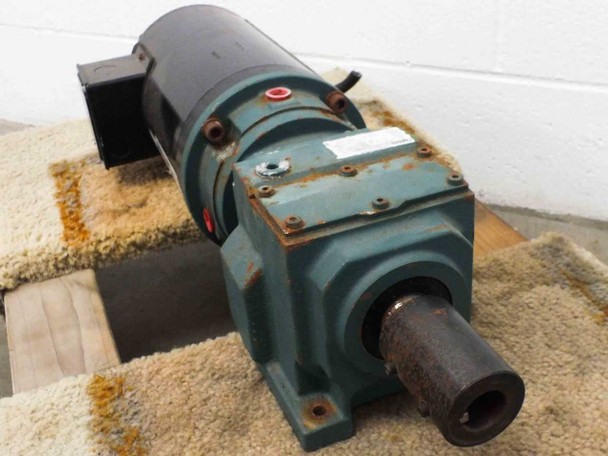

This Dodge Quantis HB382CN140TC gearmotor has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The gearbox housing shows surface rust on the outer flanges and mounting surfaces, and there is rust and oxidation on the output shaft — visible in the photos. The green housing has typical scuffs and paint wear consistent with industrial use. The Marathon Electric motor and integral junction box appear intact. Calipers were used to measure and confirm the output shaft dimensions. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Baldor-Dodge |
Model: |
HB382CN140TC |
MPN: |
HB382CN140TC |
Secondary Model: |
7710391-001 |
SKU: |
51692 |
Type: |
Inline Helical Gearmotor / Motorized Indexing Drive |
Product Series: |
Quantis QUA38 |
Gear Ratio: |
24.5:1 |
Output Torque: |
1947 in-lb Max |
Input Power: |
2.21 HP Max |
Input Speed: |
1750 RPM |
Voltage: |
230/460V AC |
Current Rating: |
4.8/2.4 Amps |
Phase: |
3-Phase |
Frequency: |
60 Hz |
Motor Frame: |
NEMA 145TC |
Motor Mount: |
NEMA 140 |
Mounting Position: |
A1 |
Output Shaft Size: |
1.00 x 1.97 inch |
Service Factor: |
1.00 |
Lube Type: |
STD (Standard) |
Motor Manufacturer: |
Marathon Electric microMAX |
Motor Model: |
HVK 145THTR5329AA P |
Motor Enclosure: |
TENV (Totally Enclosed Non-Ventilated) |
Motor Design: |
3-Phase Inverter Duty AC Induction Motor |
Motor Poles: |
4 |
IEC Rating: |
IEC 34-1, IEC 34-5, IP 43 |
Operations Manual: |
MN1697 / OPS Manual 499320 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Gearmotor with integrated Marathon Electric motor. Pulled from working environment. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Dodge Quantis HB382CN140TC gearmotor pulled from a working environment. Good used condition. Housing shows surface rust on flanges and output shaft; cosmetic wear on housing. Marathon Electric motor intact. See photos. |
