Description

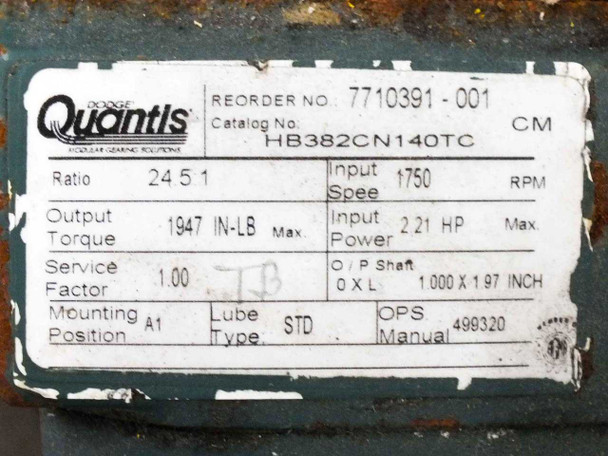

Dodge Quantis HB382CN140TC Gearmotor 230/460V 2.21HP 24.5:1 Ratio Marathon Electric
Three-phase AC motorized indexing drive gearmotor with integrated Marathon Electric induction motor. Rated 2.21 HP at 1,750 RPM input with 24.5:1 reduction ratio and 1,947 in-lb maximum output torque.
Specifications & What's Included
- Model HB382CN140TC (Quantis QUA38 series)
- Voltage: 230/460V AC, 3-phase; 4.8/2.4A rated current
- Output torque: 1,947 in-lb max; Output shaft 1.000 x 1.97 inch
- NEMA 145TC frame; NEMA 140 mount; A1 mounting position
- Includes attached motor, gearbox assembly, output shaft, and spur gear
- Manufactured in the United States
Applications
Quantis gearmotors are used in industrial automation, material handling conveyors, and process machinery requiring precise torque multiplication and speed reduction. The indexing drive configuration supports positioning and cyclic motion applications in manufacturing and packaging equipment. Standard duty 3-phase AC induction motors operate on typical industrial electrical systems.
Condition: Used

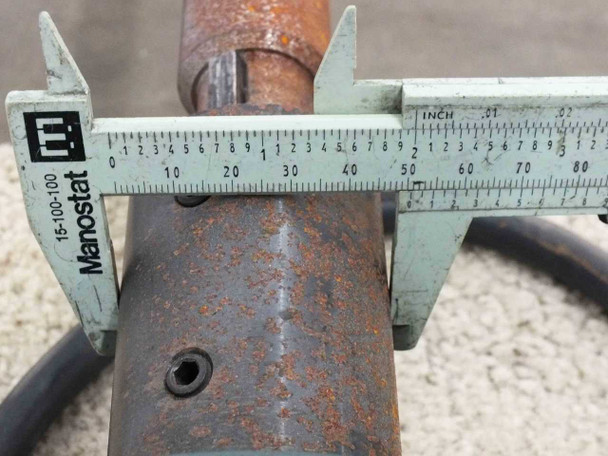

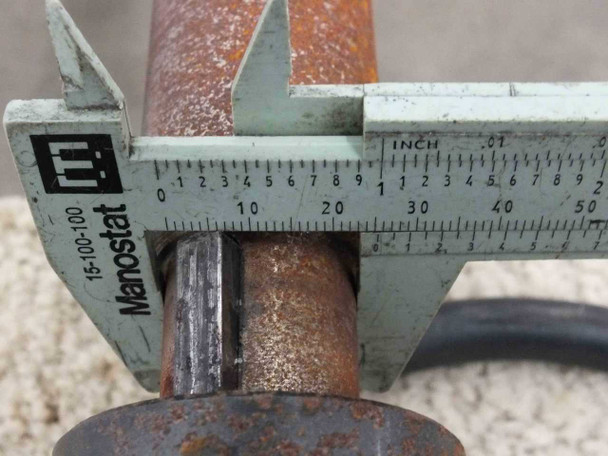

This Dodge Quantis HB382CN140TC motorized indexing drive gearmotor is used and available as surplus. The unit was pulled from a working environment. The gearbox and Marathon Electric motor are intact and the assembly appears complete. Photos show surface rust on the output shaft and spur gear — the rust is cosmetic and concentrated on the exposed metal shaft and gear face; the gearbox housing and motor body show normal wear consistent with industrial service. Please view our photo set and contact us if you have any questions.
This Dodge Quantis HB382CN140TC motorized indexing drive gearmotor is used and available as surplus. The unit was pulled from a working environment. The gearbox and Marathon Electric motor are intact and the assembly appears complete. Photos show surface rust on the output shaft and spur gear — the rust is cosmetic and concentrated on the exposed metal shaft and gear face; the gearbox housing and motor body show normal wear consistent with industrial service. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Baldor-Dodge |
Model: |
HB382CN140TC |
MPN: |
HB382CN140TC |
Secondary Model: |
7710391-001 |
SKU: |
51691 |
Type: |
Motorized Indexing Drive Gearmotor |
Product Series: |
Quantis |
Product Size: |
QUA38 |
Voltage Rating: |
230/460V AC |
Current Rating (Amps): |
4.8/2.4 A |
Power Rating: |
2.21 HP |
Input Speed: |
1,750 RPM |
Gear Ratio: |
24.5:1 |
Output Torque: |
1,947 in-lb Max |
Phase: |
Three Phase |
Motor Frame: |
NEMA 145TC |
Motor Mount: |
NEMA 140 |
Mounting Position: |
A1 |
Output Shaft Size: |
1.000 x 1.97 inch |
Lube Type: |
STD |
Service Factor: |
1.00 |

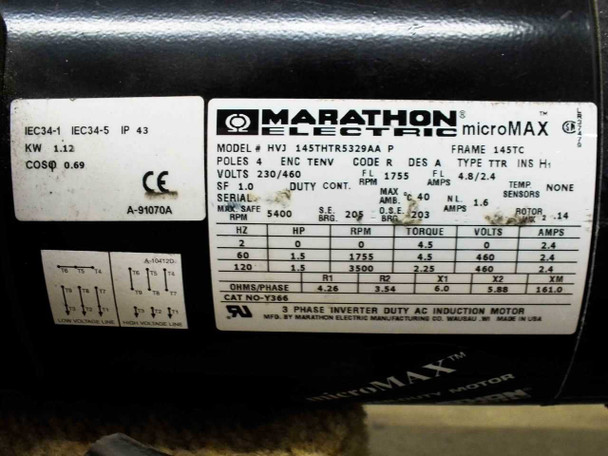

Motor Manufacturer: |
Marathon Electric |
Motor Model: |
HVJ 145THTR5329AA P |
Motor Type: |
3-Phase Inverter Duty AC Induction Motor |
Operations Manual: |
MN1697 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; includes attached motor and gearbox assembly with output shaft and spur gear |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Dodge Quantis HB382CN140TC gearmotor, used surplus. Pulled from a working environment. Unit is intact and complete. Output shaft and spur gear show surface rust; gearbox housing and motor show normal industrial wear. |
