Description
Digital Equipment Corp DEC 70-26601-01 8-Bit ISA Interface Board 54-20408
An 8-bit ISA expansion card from Digital Equipment Corporation designed for interfacing peripherals and communication devices in legacy DEC systems. The board features a TC120G08AT main controller with BNC and DB15 connectors.
Specifications & What's Included
- Model: 70-26601-01 / Secondary Model: 54-20408
- Bus Interface: ISA (8-bit)
- Form Factor: Half-Length ISA Card
- Main Controller: TC120G08AT
- Connectors: BNC and DB15 (15-pin D-Sub)
- Configuration: 12-position DIP switch (W21)
- Manufactured in Taiwan
- Board only; no cables or accessories included
Applications
This interface card was used in DEC PDP and VAX systems to enable communication and peripheral connectivity. Boards of this type supported serial communications, telemetry, and industrial control applications in telecom and computing environments from the 1980s through 1990s. Compatible with Digital Equipment ISA-bus architecture systems.
Condition: Used

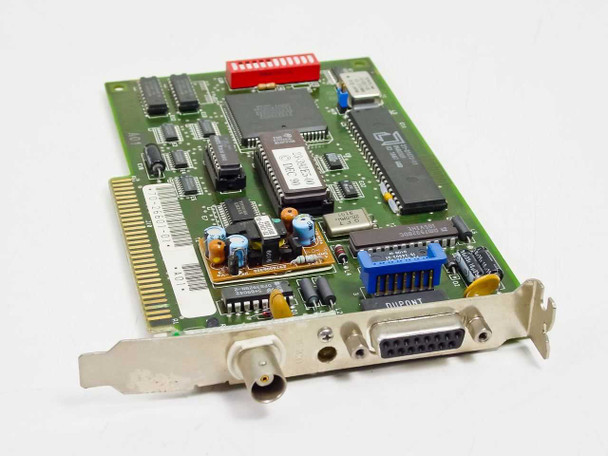

This Digital Equipment Corp DEC 70-26601-01 8-bit ISA Interface Board (54-20408) has been inspected and appears to be in good condition. It has not been powered or tested at our facility. The board shows normal handling wear consistent with prior installation. The BNC and DB15 bracket connectors appear intact, the red DIP switch block is present, and no obvious physical damage is visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Digital Equipment Corp DEC 70-26601-01 8-bit ISA Interface Board (54-20408) has been inspected and appears to be in good condition. It has not been powered or tested at our facility. The board shows normal handling wear consistent with prior installation. The BNC and DB15 bracket connectors appear intact, the red DIP switch block is present, and no obvious physical damage is visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Digital Equipment Corporation (DEC) |
Model: |
70-26601-01 |
MPN: |
70-26601-01 |
Secondary Model: |
54-20408 |
SKU: |
43454 |
Type: |
8-Bit ISA Interface / Expansion Card |
Bus Interface: |
ISA (8-bit) |
Form Factor: |
Half-Length ISA Card |
Main Controller: |
TC120G08AT |
Connector 1: |
BNC |
Connector 2: |
DB15 (15-pin D-Sub) |
Configuration: |
12-position DIP switch (W21) |
Country/Region of Manufacture: |
Taiwan |
FCC ID: |
AD9-DEY00 |
Condition: |
Used – Inspected, Not Bench-Tested |
Compatible With: |
DEC/Digital Equipment ISA-bus systems |
Seller Notes: |
Board only; no cables or accessories included. |
Condition Notes: |
DEC 70-26601-01 8-bit ISA interface board (54-20408) inspected and in good condition. Not powered or tested at our facility. Normal handling wear. BNC and DB15 connectors intact, DIP switch present, no visible damage. |
