Digitrend Systems 8021312 8-Bit ISA Controller Card DB9 DB25 Edge Connector

(No reviews yet) Write a Review
SKU:
41020
MPN:
8021312
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

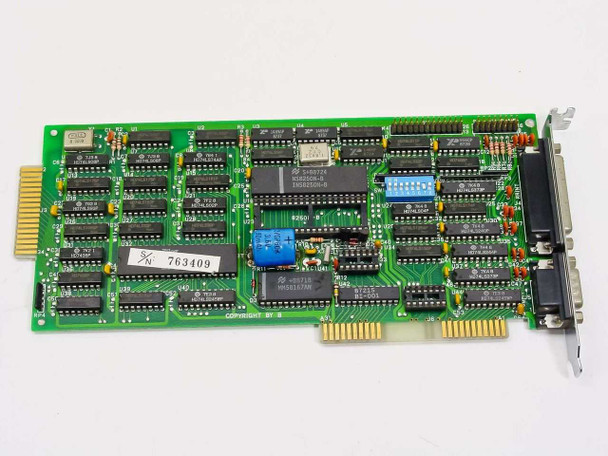

  • Digitrend Systems 8021312 8-bit ISA controller card — top component side showing ICs, edge connector, and DB25 bracket connector

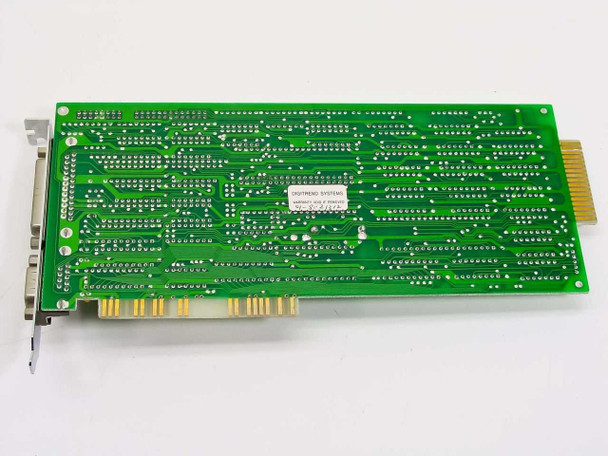

  • Digitrend Systems 8021312 ISA controller card — solder side with Digitrend Systems warranty label and dual DB bracket connectors visible

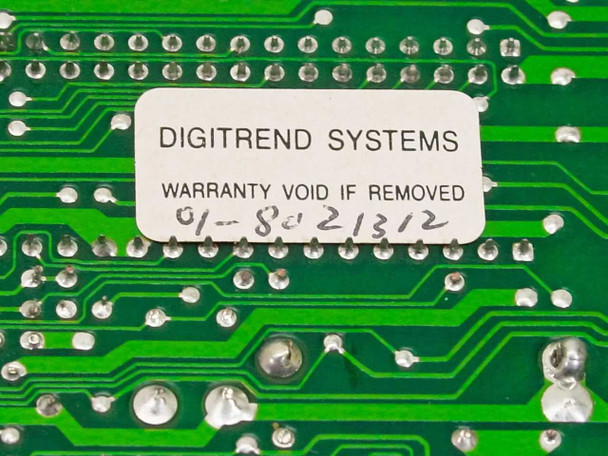

  • Digitrend Systems 8021312 warranty label closeup — reads DIGITREND SYSTEMS WARRANTY VOID IF REMOVED, part number 01-8021312 handwritten

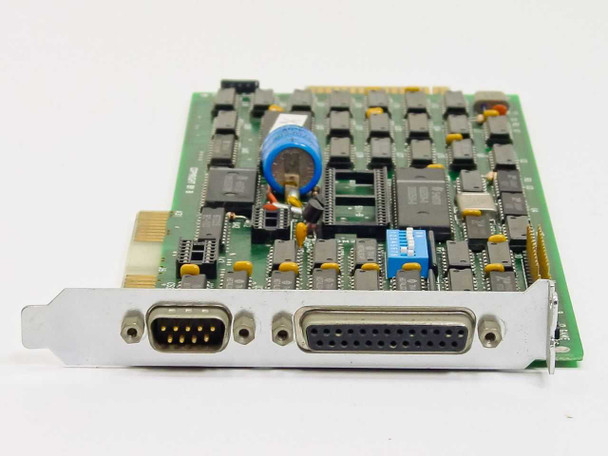

  • Digitrend Systems 8021312 ISA controller card — angled front view showing DB9 and DB25 bracket connectors and component side
$25.00
Was: $50.00
Current Stock: 1

Sold Out

Description

Digitrend Systems 8021312 8-Bit ISA Controller Card DB9 DB25 Edge Connector

This is a Digitrend Systems 8021312 8-bit ISA controller card fitted with a full-length ISA edge connector and a dual-port bracket carrying one DB9 (9-pin) and one DB25 (25-pin) connector. The card is populated with numerous DIP ICs across its full length, consistent with a multi-function I/O or peripheral controller design of the ISA era. A Digitrend Systems warranty label on the reverse reads part number 01-8021312.

Specifications & What's Included

  • Manufacturer: Digitrend Systems
  • Part Number: 8021312 (label: 01-8021312)
  • Bus Interface: 8-bit ISA (Industry Standard Architecture) gold-finger edge connector
  • Card Length: Full-length ISA form factor
  • Bracket Connectors: DB9 (9-pin, likely serial) and DB25 (25-pin, likely parallel or serial)
  • PCB: Green, dual-sided, populated with multiple DIP ICs and passive components
  • Notable Components: Multiple DIP logic/controller ICs (markings partially legible); blue jumper block visible on component side
  • Condition: Sold AS-IS for parts or repair — not tested, functionality not guaranteed

Applications

The Digitrend Systems 8021312 is an 8-bit ISA expansion card from the era of IBM PC/XT and PC/AT compatible systems — roughly the mid-to-late 1980s, when the 8-bit ISA bus was the dominant expansion standard in personal computers before 16-bit ISA and later PCI took over. Cards of this type were used to add serial and parallel I/O ports, or to interface external peripherals and industrial devices, to PC-compatible systems via the ISA bus. The DB9 and DB25 connectors on the bracket suggest serial (RS-232) and parallel port functions, which were commonly used to connect printers, plotters, modems, and industrial instruments. Today, cards like this are primarily sought by collectors, vintage computer restorers, and technicians maintaining legacy IBM PC/XT/AT-era systems or industrial equipment that still depends on ISA-bus controllers. This card is offered as-is for parts or repair purposes.

Condition: Used
Digitrend Systems 8021312 8-bit ISA controller card in used condition. The PCB is clean and green with all ICs present and intact. Both the DB9 and DB25 bracket connectors are in good shape with no visible damage. This is a working card suitable for legacy system restoration or as a replacement component.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Digitrend Systems
Model:
8021312
MPN:
01-8021312
Type:
8-Bit ISA Controller Card
SKU:
41020
Bus Type:
ISA (8-bit)
Form Factor:
ISA Expansion Card
Connector 1:
DB9 (9-pin serial)
Connector 2:
DB25 (25-pin parallel)
Edge Connector:
8-bit ISA gold-finger edge connector
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold AS-IS for parts or repair; no functionality guarantee
Country/Region of Manufacture:
United States
Condition Notes:
Used Digitrend Systems 8021312 8-bit ISA controller card. Clean PCB, all ICs present, DB9 and DB25 connectors intact. Working condition.
View AllClose

Related Products

Related Products

MFX MF/FD 6X00852 8-bit ISA long serial memory controller card — angled front view showing DB25 and DB9 bracket connectors, memory ICs, and full PCB layout MFX MF/FD 6X00852 8-bit ISA long card — top-down view showing full board length, memory chip rows, and MF/FD silkscreen label near bracket
Add to Cart
Quick view

MFX MF/FD 6X00852 8-Bit ISA Long Serial Memory Controller Card DB25 DB9

MFX

$31.10
Was: $75.00
MFX MF/FD 6X00852 8-Bit ISA Long Serial Memory Controller Card DB25 DB9 This is an 8-bit ISA serial memory and controller card designed for vintage IBM PC/XT and compatible systems. The card...
27705
SKU:
27705
Availability:
Usually ships within 1–2 business days.
Weight:
2.00 LBS
Brand:
MFX
Model:
MF/FD
MPN:
6X00852
Type:
8-Bit ISA Serial Memory and Controller Card
SKU:
27705
Bus Interface:
8-Bit ISA
Form Factor:
ISA Long Card
Connector 1:
DB25 (25-pin parallel/serial)
Connector 2:
DB9 (9-pin serial)
Controller IC:
Texas Instruments TBP28L22N (visible on board)
Board Label:
MF/FD, REV D (visible on PCB)
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is. Card only, no accessories included.
Compatible With:
Vintage IBM PC/XT and compatible 8-bit ISA systems
Country/Region of Manufacture:
United States
Condition Notes:
MFX MF/FD 6X00852 8-bit ISA serial memory controller card sold as-is for parts or repair. Not tested; functionality not guaranteed. Board appears visually intact with no obvious damage. Please contact us with any questions.
HP 24541-60031 Vectra 8-bit ISA Dual Serial Card – top side showing PCB, main controller chip, and bracket with DB25 and DB9 ports HP 24541-60031 Vectra ISA Dual Serial Card – solder side of PCB showing trace layout and ISA edge connector
Add to Cart
Quick view

HP 24541-60031 Vectra 8-Bit ISA Dual Serial Card DB25 DB9 RS-232 Hewlett-Packard

HP

$45.00
Was: $90.00
HP 24541-60031 Vectra 8-Bit ISA Dual Serial Card DB25 DB9 RS-232 Hewlett-Packard The HP 24541-60031 is an 8-bit ISA dual serial I/O expansion card designed for HP Vectra desktop computers. It...
10204
SKU:
10204
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Hewlett-Packard
Model:
24541-60031
MPN:
24541-60031
Type:
ISA Dual Serial I/O Card
SKU:
10204
Bus Type:
ISA (8-bit)
Interface:
RS-232
Number of Ports:
2
Connector Type 1:
DB25 (25-pin serial)
Connector Type 2:
DB9 (9-pin serial)
Compatible With:
HP Vectra Desktop PCs
Form Factor:
Half-Length ISA Card
Country/Region of Manufacture:
France
FCC ID:
DS46LH24541B
Certifications:
FCC Class B, UL
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only, no accessories included.
Condition Notes:
HP 24541-60031 Vectra ISA Dual Serial Card in good used condition. PCB is clean, connectors intact, pulled from a working environment. Inspected; no visible damage. Card only.
Everex Systems EV231C PWA-00219-00 ISA I/O card – top component side showing ICs, DB25 and DB9 bracket connectors Everex Systems EV231C ISA I/O card – solder side (back of PCB) showing trace layout and ISA edge connector
Add to Cart
Quick view

Everex Systems EV231C PWA-00219-00 ISA I/O Card DB25 DB9 Serial Parallel

$25.00
Was: $50.00
Everex Systems EV231C PWA-00219-00 ISA I/O Card DB25 DB9 Serial ParallelThe Everex Systems EV231C is an ISA-bus I/O expansion card that adds serial and parallel port connectivity to IBM...
41124
SKU:
41124
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Brand:
Everex Systems
Model:
EV231C
MPN:
PWA-00219-00
Type:
ISA I/O Expansion Card
SKU:
41124
Bus Interface:
ISA
Form Factor:
ISA Card / Half-Length
Connector Types:
DB25 (parallel), DB9 (serial)
Interface:
Serial, Parallel
Country/Region of Manufacture:
Japan
Compatible With:
IBM PC/XT/AT and ISA-bus compatible computers
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Condition Notes:
Everex Systems EV231C ISA I/O card (PWA-00219-00) inspected and in good condition. PCB is clean, connectors intact, normal light wear. No cables included.

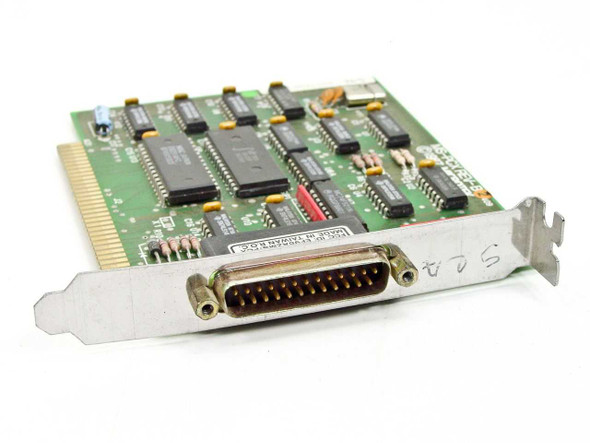

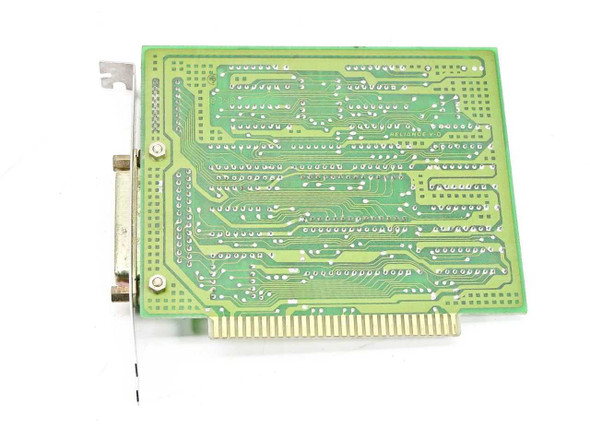

Microtek MS-PCX Rev B 8-bit ISA scanner controller card – angled front view showing DB25 connector and ISA edge connector Microtek MS-PCX Rev B – PCB reverse/solder side view showing ISA edge connector and DB25 bracket
