Deltron W109B 15VDC 3A Single Output Open Frame Linear Power Supply 100-240VAC

(No reviews yet) Write a Review
SKU:
50061
MPN:
W109B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

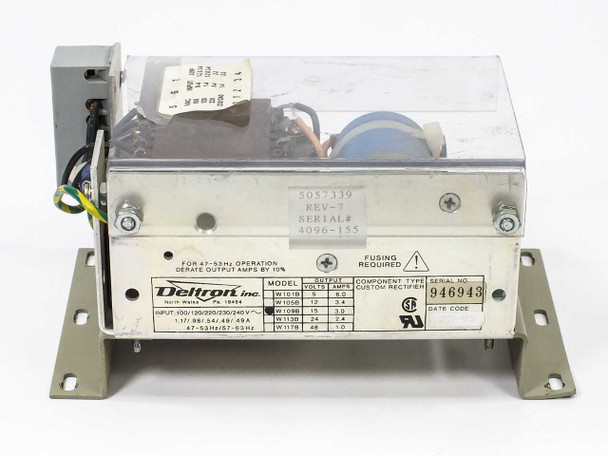

  • Deltron W109B open frame linear power supply – front label view showing model matrix, serial number 946943, and CSA marking
  • Deltron W109B open frame linear power supply – top/side view showing transformer, clear cover, control PCB, and assembled-in-Mexico label
  • Deltron W109B open frame linear power supply – angled front label view showing W Series model table and input/output specs

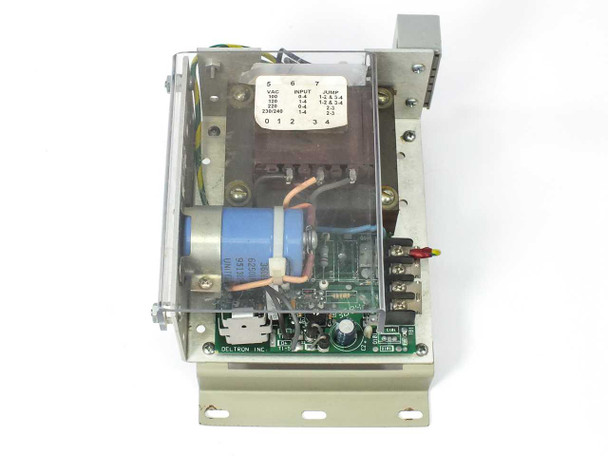

  • Deltron W109B open frame linear power supply – top interior view showing voltage tap jumper chart (positions 5-7), transformer, and Deltron PCB
  • Deltron W109B open frame linear power supply – close-up of control PCB with electrolytic capacitor, rectifier components, and output terminals
  • Deltron W109B open frame linear power supply – rear view showing output terminal block with labeled leads (L, N, ground) and wiring harness
$55.00
Was: $100.00
Current Stock: 1

Sold Out

Description

Deltron W109B 15VDC 3A Single Output Open Frame Linear Power Supply 100-240VAC

Open frame linear power supply delivering 15V DC at 3.0A output. Accepts universal input voltage 100-240V AC with jumper-selectable voltage taps.

Specifications & What's Included

  • Output: 15V DC, 3.0A (derate 10% for 47-53Hz operation)
  • Input: 100/120/220/230/240V AC, 47-63Hz (jumper configurable)
  • Topology: Linear transformer-based
  • Form Factor: Open frame with hardwired leads
  • Certifications: CSA
  • Manufactured in Mexico

Applications

Linear supplies of this type were widely used in industrial control systems, telecommunications equipment, and test instrumentation through the 1990s and 2000s. The W Series open frame design fits OEM applications requiring compact, transformer-based regulation. Typical uses include powering logic circuits, analog instrumentation, and auxiliary control modules in rack-mount and panel-mount systems.

Condition: Used
This Deltron W109B 15VDC 3A open frame linear power supply has been tested at our facility and confirmed good, measuring 15.05V DC output. The unit is currently wired for 100/120V AC input; the voltage tap jumper is user-configurable for 220/230/240V AC operation as well. Cosmetically the unit shows normal wear consistent with prior use — the metal chassis and cover are intact with no significant damage visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Deltron
Model:
W109B
MPN:
W109B
Type:
Open Frame Linear Power Supply
SKU:
50061
Series:
W Series (World Series Linears)
Output Voltage:
15V DC
Output Current:
3.0A
Number of Outputs:
1
Input Voltage:
100/120/220/230/240V AC (universal)
Input Current:
1.17/0.98/0.54/0.49/0.49A (by voltage tap)
Input Frequency:
47–53Hz / 57–63Hz
Power Requirements:
100-240V AC, 47-63Hz
Topology:
Linear (transformer-based)
Form Factor:
Open Frame
Output Connection:
Hardwired leads / terminal block
Input Connection:
Hardwired leads (voltage tap jumper configurable)
Voltage Tap Configuration:
Jumper-selectable: 100/120/220/230/240V AC
Current Configuration Note:
Derate output amps by 10% for 47-53Hz operation
Component Type:
Custom Rectifier
Certifications:
CSA (visible on label)
Country/Region of Manufacture:
Mexico
Condition:
Used – Inspected and Tested
Seller Notes:
Unit tested good at 15.05V DC output. Currently wired for 100/120V AC input.
Condition Notes:
Deltron W109B 15VDC 3A open frame linear power supply. Tested good at 15.05V DC output. Currently wired for 100/120V AC input; jumper-configurable for higher voltages. Normal cosmetic wear. Used condition.
View AllClose

Related Products

Related Products

ACDC Electronics 5N3-1 open-frame power supply — angled top view showing transformer, PCB, and aluminum chassis ACDC Electronics 5N3-1 power supply — side view showing warning label, transformer, UL mark, and bare wire leads
Add to Cart
Quick view

ACDC Electronics 5N3-1 Power Supply 5VDC 3A 100-240VAC 50/60Hz Open Frame

Emerson

$28.00
Was: $60.00
ACDC Electronics 5N3-1 Power Supply 5VDC 3A 100-240VAC 50/60Hz Open FrameOpen-frame DC power supply rated for 5V output at 3A (15W). Accepts 100-240V AC input at 50/60Hz and converts to regulated 5V...
29513
SKU:
29513
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
ACDC Electronics
Model:
5N3-1
MPN:
5N3-1
Type:
Open Frame DC Power Supply
SKU:
29513
Output Voltage:
5V DC
Output Current:
3A
Output Power:
15W
Input Voltage:
100-240V AC
Input Frequency:
50/60Hz
VA Rating:
68 VA
Number of Outputs:
1
Form Factor:
Open Frame / Chassis Mount
Output Connector:
Bare wire leads
Certifications:
UL Listed
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only — no external cables or accessories. Bare wire leads included.
Country/Region of Manufacture:
United States
Condition Notes:
ACDC Electronics 5N3-1 5VDC 3A open-frame power supply. Inspected and in good used condition. Chassis and PCB appear clean; output leads intact. Light surface scuffing consistent with normal handling.

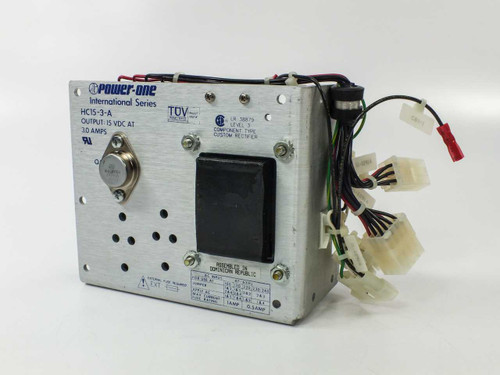

Power-One HC15-3-A International Series power supply – front panel showing model label, TUV certification, UL mark, and output wire harness Power-One HC15-3-A – top/rear view showing open-frame PCB, transformer, control board, trimmer potentiometer, and multi-wire harness
