Dell SA145-3437 145W AT Desktop Power Supply 100-240V w/ Cable Power Switch

Dell SA145-3437 145W AT Desktop Power Supply 100-240V w/ Cable Power Switch

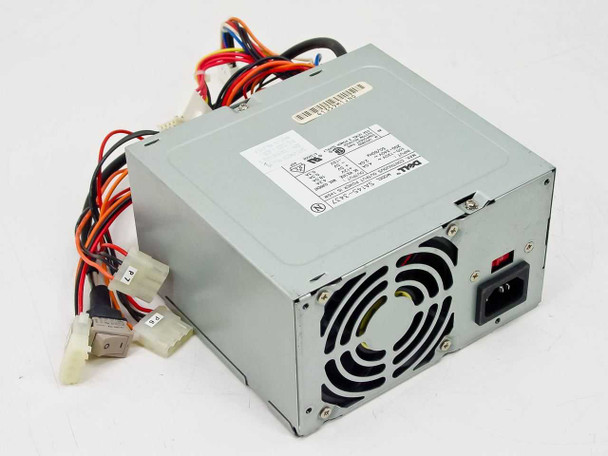

The Dell SA145-3437 is a 145-watt AT-form-factor desktop power supply designed for older AT-standard PC cases. It accepts a wide input voltage range of 100–120V and 200–240V at 50/60Hz, making it compatible with both North American and international mains power. The unit outputs multiple regulated DC rails and includes a hard-wired cable power switch for AT-style chassis integration.

Specifications & What's Included

• Model: Dell SA145-3437
• Max Continuous Output Power: 145W
• Input: 100–120V AC @ 4.0A / 200–240V AC @ 2.0A, 50/60Hz
• Output Rails: +12V @ 4.2A, +5V @ 18.0A, –5V @ 0.3A, –12V @ 0.3A
• Power Supply Type: AT form factor
• Certifications: CSA Level 3 (Custom Rectifier), UL (M LR53820), VDE, CE (E132002)
• Includes: Attached cable harness (Molex 4-pin peripheral, Berg mini connectors) and cable power switch

Applications

AT-form-factor power supplies were the standard for IBM PC/XT and AT-compatible desktop computers through the early-to-mid 1990s, before the ATX standard replaced them. The SA145-3437 was used in Dell AT-based desktop systems of that era. Today these units are sought for legacy system restoration, vintage PC repair, and replacement of failed AT PSUs in older industrial or embedded systems still running AT-chassis hardware.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
