Dell KN303 ATI Radeon X1300 128MB PCIe Low Profile Video Card DVI S-Video SFF

(No reviews yet) Write a Review
SKU:
49919
MPN:
KN303
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Dell KN303 ATI Radeon X1300 128MB low profile PCIe video card – angled front view showing passive heatsink, DVI-I port, and S-Video port

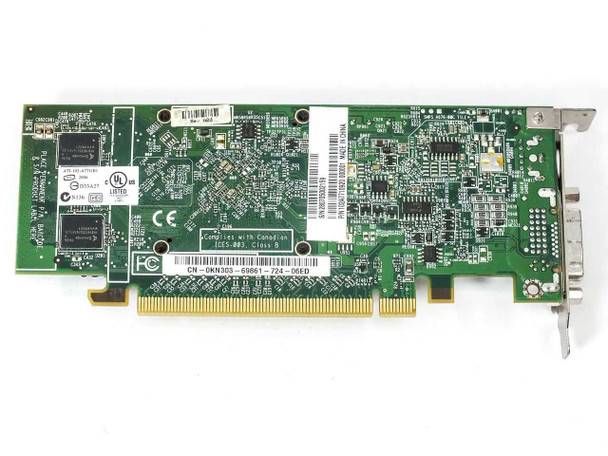

  • Dell KN303 ATI Radeon X1300 PCIe video card – PCB rear side showing regulatory markings, barcode label, and Dell CN-0KN303 label

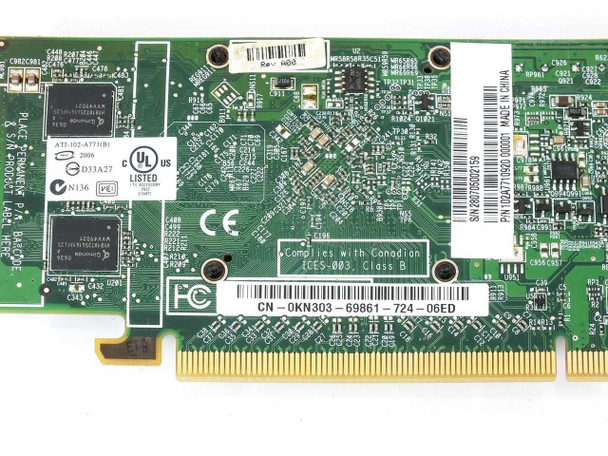

  • Dell KN303 ATI Radeon X1300 video card – PCB component side close-up showing ATI-102-A771(B) marking, FCC/CE compliance labels, and gold PCIe edge connector

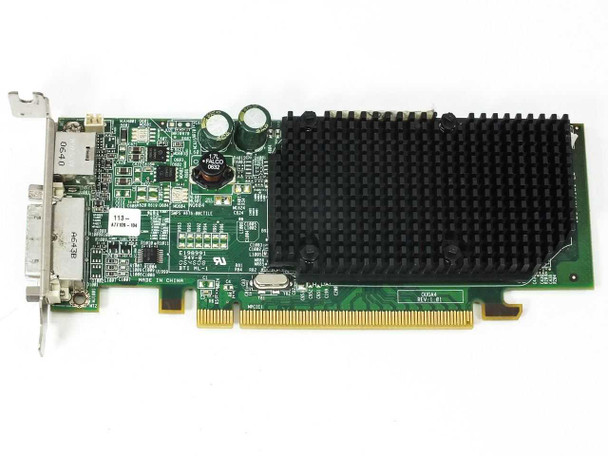

  • Dell KN303 ATI Radeon X1300 128MB low profile video card – alternate front angle showing passive heatsink, DVI-I, and S-Video bracket ports
  • Dell KN303 ATI Radeon X1300 low profile bracket close-up showing DVI-I and S-Video (Mini-DIN) output ports
$30.00
Was: $60.00
Current Stock: 2

Sold Out

Description

Dell KN303 ATI Radeon X1300 128MB PCIe Low Profile Video Card DVI S-Video SFF

This is a low-profile PCIe graphics card designed for Dell Small Form Factor desktop systems. It provides display output via DVI-I and S-Video connectors with 128MB of DDR memory.

Specifications & What's Included

  • GPU: ATI Radeon X1300
  • Memory: 128MB DDR
  • Interface: PCI Express (PCIe)
  • Form Factor: Low Profile
  • Video Outputs: DVI-I, S-Video (Mini-DIN)
  • Cooling: Passive heatsink
  • Compatible with Dell SFF desktops
  • Card only; no accessories included

Applications

The Radeon X1300 was used in mid-range Dell desktop systems from the mid-2000s. It supports dual-display configurations through its DVI and S-Video outputs, making it suitable for business workstations and standard desktop computing. The low-profile form factor allows installation in space-constrained SFF chassis.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Dell KN303 ATI Radeon X1300 128MB PCIe Low Profile Video Card has been tested and confirmed to be in good working condition. The card is clean overall, with the passive heatsink intact and the PCIe edge connector showing normal light wear consistent with prior installation. Both the DVI-I and S-Video output ports are present and undamaged, as visible in our photos. This is a low profile card suitable for small form factor systems and has passed our functional inspection. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ATI / Dell
Model:
Radeon X1300
MPN:
KN303
Type:
Graphics / Video Card
SKU:
49919
Chipset/GPU:
ATI Radeon X1300
Memory Size:
128 MB
Memory Type:
DDR
Interface:
PCI Express (PCIe)
Form Factor:
Low Profile
Video Ports:
DVI-I, S-Video
Connector Type:
DVI-I, Mini-DIN S-Video
Compatible With:
Dell Small Form Factor (SFF) Desktops
ATI Part Number 1:
102A7710920
ATI Part Number 2:
ATI-102-A771(B)
ATI Part Number 3:
109-A77131-20
Dell Part Number:
KN303
Cooling:
Passive Heatsink
Condition:
Used – Inspected and Tested
Country/Region of Manufacture:
China
Seller Notes:
Card only; no accessories included. Tested and in working condition.
Condition Notes:
This Dell KN303 ATI Radeon X1300 128MB PCIe low profile video card has been tested and is in good working condition. DVI-I and S-Video ports present and intact. Card shows normal light wear from prior use.
