Dell

Dell H9142 ATI Radeon X600 128MB PCIe Video Card DVI S-Video 102A2604400

(No reviews yet) Write a Review
SKU:
49918
MPN:
H9142
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

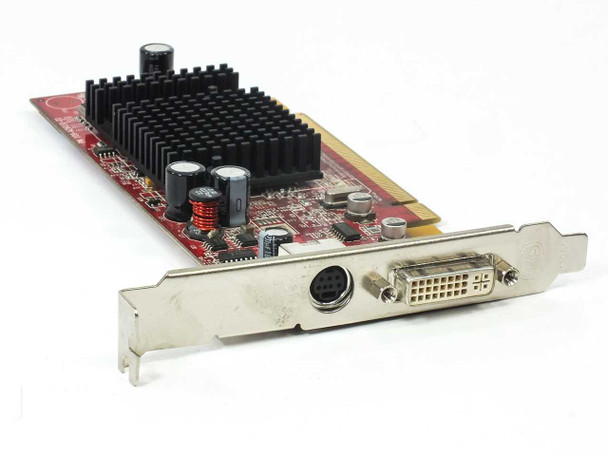

  • Dell H9142 ATI Radeon X600 128MB PCIe video card – front bracket side showing DVI-I and S-Video ports with passive heatsink
  • ATI Radeon X600 H9142 PCIe card – PCB reverse side showing memory chips, regulatory labels, and PCIe edge connector

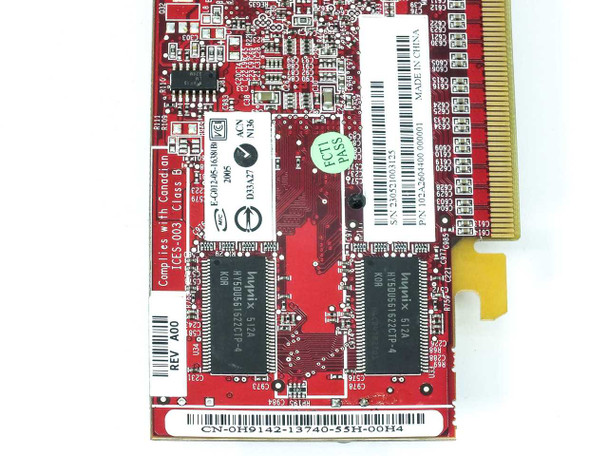

  • Dell H9142 Radeon X600 PCB close-up – memory modules, revision label REV A00, CN-0H9142 Dell part sticker, and Made in China label visible
  • ATI Radeon X600 128MB PCIe video card – component side showing heatsink, capacitors, and bracket with DVI-I and S-Video outputs

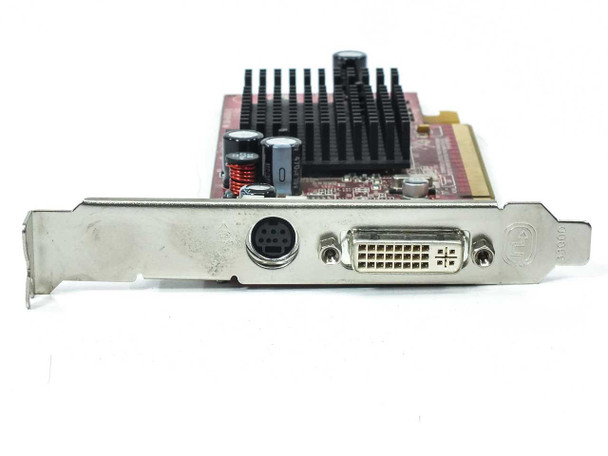

  • Dell H9142 ATI Radeon X600 – close-up of bracket showing DVI-I and S-Video (Mini-DIN 4-pin) output connectors
$30.00
Was: $60.00
Current Stock: 2

Sold Out

Description

Dell H9142 ATI Radeon X600 128MB PCIe Video Card DVI S-Video 102A2604400

A low-profile PCIe graphics card designed for Dell OptiPlex and Dimension systems. Features 128MB DDR memory and passive cooling for environments where fan noise is a concern.

Specifications & What's Included

  • GPU: ATI Radeon X600
  • Memory: 128MB DDR
  • Interface: PCI Express (PCIe)
  • Video Outputs: DVI-I, S-Video (Mini-DIN 4-pin)
  • Form Factor: Low Profile
  • Cooling: Passive Heatsink (fanless)
  • Dell Part Number: H9142
  • Card only; no accessories included

Applications

This card was used in Dell business and consumer systems requiring dedicated graphics output. The Radeon X600 handles 2D display tasks and basic 3D applications. It fits PCIe-based Dell OptiPlex and Dimension desktop computers. The fanless design made it suitable for office and industrial environments where acoustic noise reduction was valued.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Dell H9142 ATI Radeon X600 128MB PCIe video card has been tested at our facility and confirmed to be in good working condition. The card shows typical light use wear consistent with prior installation in a desktop system. The PCB, passive heatsink, DVI-I port, and S-Video connector all appear clean and intact in our photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ATI
Model:
Radeon X600
MPN:
102A2604400
Secondary MPN:
109-A26030-01
Dell Part Number:
H9142
ATI Part Number 3:
E-G012-05-1638(B)
Type:
Graphics / Video Card
SKU:
49918
Chipset/GPU:
ATI Radeon X600
Memory Size:
128 MB
Memory Type:
DDR
Interface:
PCI Express (PCIe)
Video Output:
DVI-I, S-Video
Connector Type 1:
DVI-I
Connector Type 2:
S-Video (Mini-DIN 4-pin)
Form Factor:
Low Profile
Cooling:
Passive Heatsink (fanless)
Compatible With:
Dell OptiPlex, Dell Dimension PCIe-based systems
Country/Region of Manufacture:
China
Condition:
Used – Inspected and Tested
Seller Notes:
Card only; no accessories included.
Condition Notes:
This Dell H9142 ATI Radeon X600 128MB PCIe video card has been tested and confirmed in good working condition. Shows light use wear. DVI-I and S-Video ports intact.
