Dell 8U761 1.44MB Removable Floppy Drive Module Latitude CPi D-Series 3.5-inch

Dell 8U761 1.44MB Removable Floppy Drive Module Latitude CPi D-Series 3.5-inch

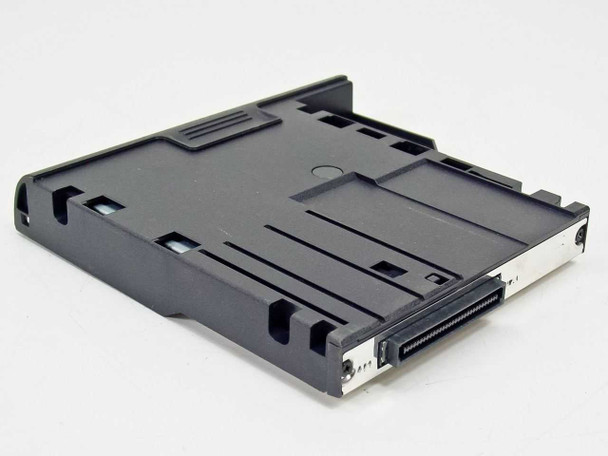

The Dell 8U761 is a removable 3.5-inch 1.44MB floppy disk drive module designed to slide into the modular bay of Dell Latitude CPi and D-Series laptops. It connects via a proprietary multi-pin bay interface and allows the laptop to read and write standard 1.44MB 3.5-inch floppy disks without an external adapter. The module is compact and fully self-contained within a rigid black plastic housing with a front-facing floppy disk slot.

Specifications & What's Included

• Manufacturer: Dell

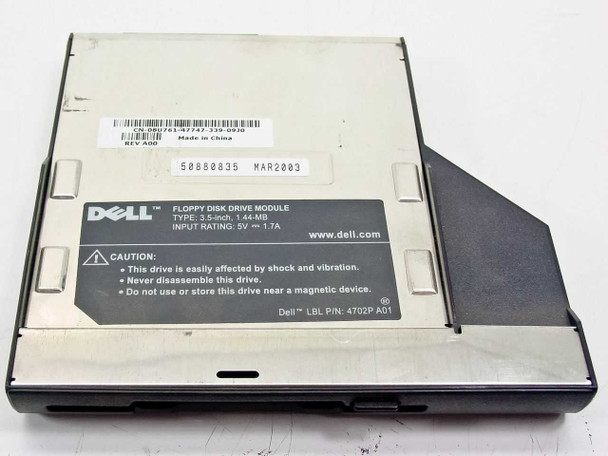

• Part Number: 8U761 (full: CN-08U761-47747-339-09J0)
• Dell Label P/N: 4702P A01
• Hardware Revision: REV A00
• Drive Type: 3.5-inch, 1.44MB Floppy Disk Drive Module
• Input Rating: 5V DC, 1.7A
• Interface: Proprietary Dell laptop modular bay connector (multi-pin)
• Country of Manufacture: China
• Manufacture Date: March 2003
• Compatible with: Dell Latitude CPi and D-Series laptop modular bay
• Drive only — no cables or accessories included

Applications

The Dell Latitude CPi and D-Series laptops from the late 1990s and early 2000s used a modular bay system that accepted interchangeable drives — floppy, CD-ROM, DVD, or a second battery — as a plug-in module. This 8U761 floppy module fills that bay and restores floppy disk capability, which was essential for transferring files, loading drivers, and running BIOS updates on those systems before USB drives became standard. Today these modules are primarily sought by technicians maintaining legacy Dell Latitude systems, collectors, and IT departments still running older Dell laptops for specialized applications. Floppy drives of this era were built to the 1.44MB 3.5-inch standard, which remained the dominant removable storage format throughout the 1990s before being displaced by optical media and USB flash storage.
