Dataproducts 260753-006B CCA Processor Board PCB NEC D2764D EPROM Card

(No reviews yet) Write a Review
SKU:
28519
MPN:
260753-006
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

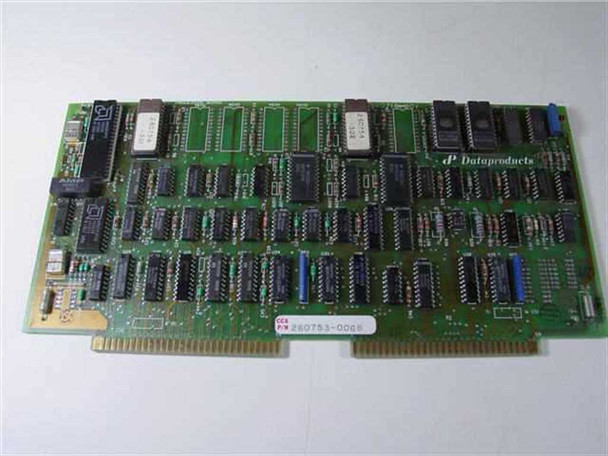

  • Dataproducts 260753-006B CCA Processor Board — top view showing full PCB with ICs, gold card-edge connector, and Dataproducts logo
  • Dataproducts Processor Board 260753-006B — close-up of PCB top edge showing 'PROCESSOR BOARD' silkscreen, MEM2/MEM3/MEM4 sockets, NEC D2764D EPROM, and label 260754-301
  • Dataproducts 260753-006B CCA Processor Board — close-up of card-edge end showing CCA P/N 260753-006B label and gold card-edge fingers
$30.00
Was: $60.00
Current Stock: 1

Sold Out

Description

Dataproducts 260753-006B CCA Processor Board PCB NEC D2764D EPROM Card

CCA processor board used in Dataproducts industrial and telecom equipment. This card-edge module contains an NEC D2764D EPROM and supports multiple memory configurations via labeled sockets.

Specifications & What's Included

  • Model: 260753-006B (Secondary: 260754-301)
  • Main IC: NEC D2764D EPROM
  • Memory Sockets: MEM2, MEM3, MEM4
  • Interface: Card-edge connector with gold fingers
  • Form Factor: PCB Card/Module
  • Manufactured: United States
  • Board only; no accessories included

Applications

This processor board was used in legacy Dataproducts printers, copiers, and telecom systems for EPROM-based program storage and device control. The card-edge design allowed direct integration into backplane systems common in 1980s–1990s industrial equipment. Compatible with systems utilizing the 260753-006B specification and related Dataproducts CCA architectures.

Condition: Used
This Dataproducts 260753-006B CCA Processor Board has been inspected and appears to be in good condition. The PCB shows normal handling and shelf wear consistent with pulled surplus stock. No cracked traces, broken components, or obvious physical damage are visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Dataproducts
Model:
260753-006B
MPN:
260753-006B
Secondary Model:
260754-301
Type:
CCA Processor Board (PCB)
SKU:
28519
Condition:
Used – Inspected
Form Factor:
Card / Module (PCB)
Main IC / EPROM:
NEC D2764D
Memory Sockets:
MEM2, MEM3, MEM4 (labeled on PCB)
Bus Interface:
Card-edge connector (gold fingers)
PCB Label:
CCA P/N 260753-006B
Seller Notes:
Board only; no accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Dataproducts 260753-006B CCA Processor Board. Inspected and in good condition. Normal shelf and handling wear; no visible damage to PCB, traces, or components. Please view photos and contact us with questions.
