Custom Heat Sealing Machine w/ Omega CN4400 CN4401-TR-D-A Temperature Controller
This is a custom-built bench-top heat sealing machine paired with an Omega CN4400 digital temperature controller. The system consists of an aluminum sealing head assembly mounted on a black steel base plate and a separate controller enclosure housing the Omega CN4400 unit. A pneumatic actuator drives the upper jaw down onto the sealing element, and a brass solenoid valve controls the air supply. The controller provides precise PV/SV temperature readout in °F with adjustable setpoints via front-panel keypad.
Specifications & What's Included
- Sealing area: approximately 3.5 inches wide x 1/8-inch strip
- Temperature controller: Omega CN4400, part number CN4401-TR-D-A
- Input voltage: 115VAC
- Controller display: dual PV/SV digital readout in °F with C, H, L channel indicators
- Controller keypad: PV/SV, SEL, DATA, ENT buttons plus up/down adjustment keys

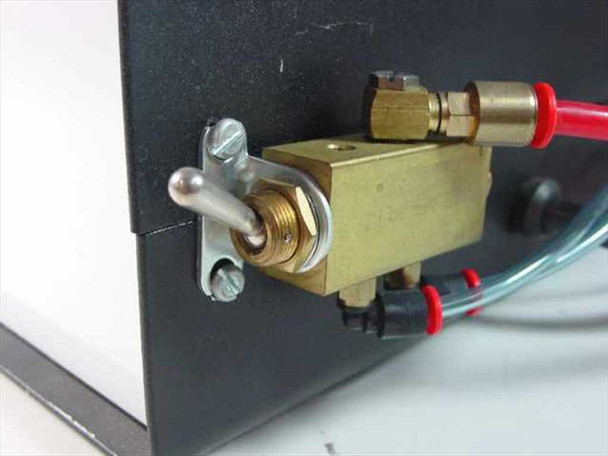

- Actuation: pneumatic — brass solenoid valve with braided tubing and red-capped fittings visible on controller enclosure side panel
- Toggle switch on controller enclosure side panel

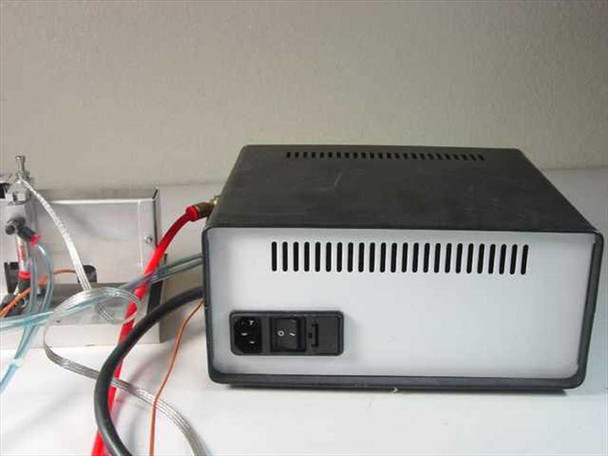

- IEC AC power inlet and power switch on rear of controller enclosure
- Sealing jaw: serrated narrow-strip heating element between upper jaw and lower platen
- Frame: aluminum sealing head on black steel base plate
- Includes: sealing head assembly, controller enclosure, and all interconnecting wiring harness
Applications
Bench-top heat sealing machines of this type are used to seal thermoplastic films, pouches, and bags in laboratory, medical device packaging, electronics, and small-scale production environments. The narrow 1/8-inch strip jaw produces a thin, consistent seal line suitable for sealing sample bags, filter envelopes, and similar flexible packaging materials. Pairing the sealing head with an Omega CN4400 PID temperature controller allows precise, repeatable temperature setpoint control — important when sealing materials with tight thermal requirements such as polyethylene, polypropylene, or specialty laminates. The pneumatic actuation provides consistent jaw pressure without operator variability, making this type of system common in quality-control labs and cleanroom-adjacent packaging stations.
This custom heat sealing machine with Omega CN4400 temperature controller (PN CN4401-TR-D-A) has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The aluminum sealing head assembly and controller enclosure show normal wear consistent with lab or production use. The pneumatic actuator, brass solenoid valve, and wiring harness are all present and intact as shown in the photos. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Custom / Omega Engineering |
Model: |
CN4400 |
MPN: |
CN4401-TR-D-A |
Type: |
Heat Sealing Machine |
SKU: |
30903 |
Temperature Controller: |
Omega CN4400 (PN CN4401-TR-D-A) |
Sealing Area Width: |
3.5 inches |
Sealing Strip Width: |
1/8 inch |
Input Voltage: |
115VAC |
Power Requirements: |
115VAC |
Form Factor: |
Benchtop |
Display Type: |
Digital PV/SV readout (°F) |
Pneumatic: |
Yes — pneumatic actuator with brass solenoid valve |
Seller Notes: |
Includes heat sealing head assembly and Omega CN4400 controller enclosure with all interconnecting wiring. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This custom heat sealing machine w/ Omega CN4400 controller (CN4401-TR-D-A) is in good used condition, pulled from a working environment. Sealing head, controller, pneumatic valve, and wiring are present and intact. Please contact us with questions. |
